| Item | Part No. | Part Name | Qty | Serial No. |

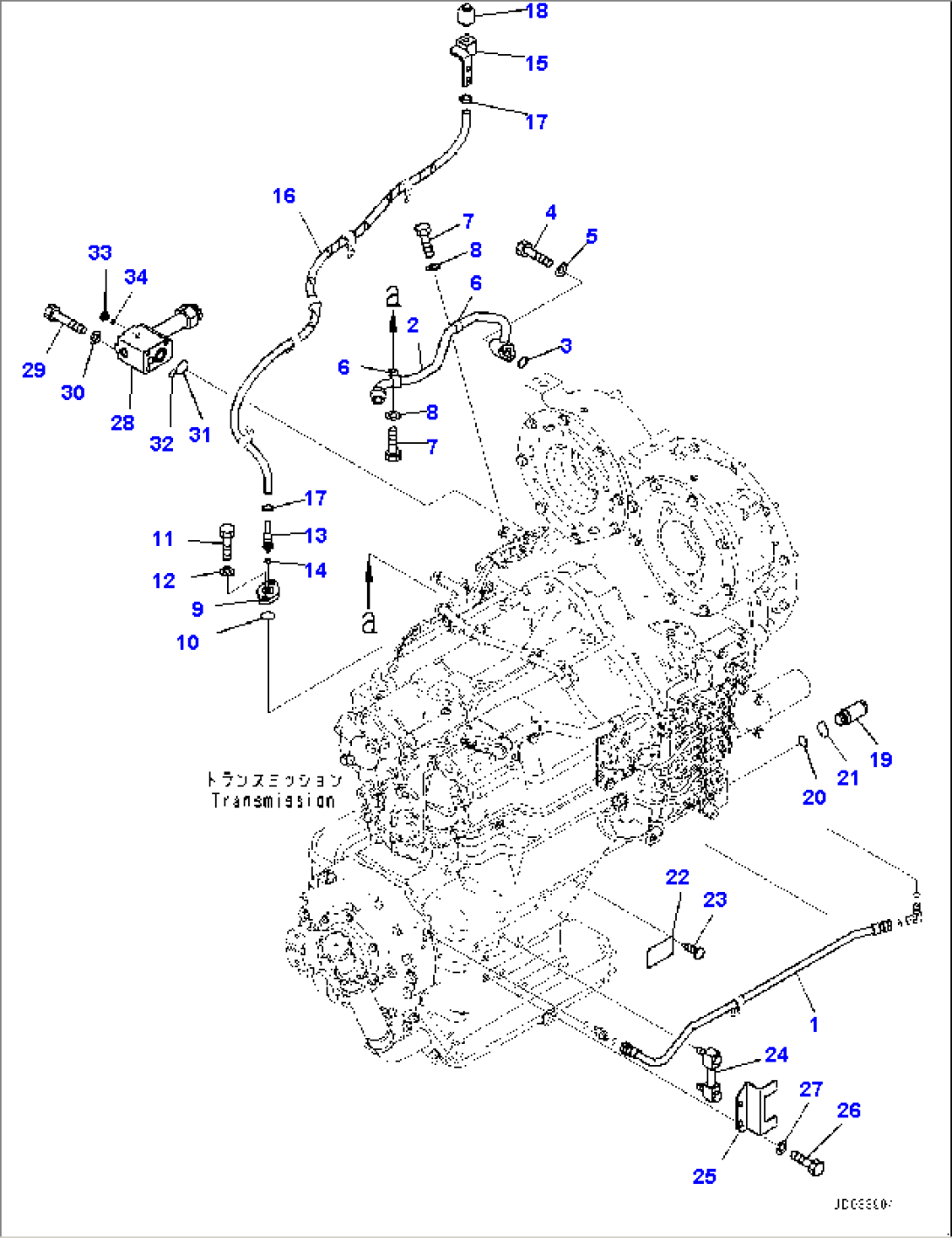

| 714-07-40010 | Transmission Assembly | 90216-90783 | ||
| 1 | 714-07-48540 | Tube | 90216-@ | |
| 2 | 421-62-45450 | Tube | 90216-@ | |
| 3 | 07000-73025 | O-ring, (Kit : K06) | 90216-@ | |
| 4 | 01010-81055 | Bolt | 90216-@ | |
| 5 | 01643-31032 | Washer | 90216-@ | |
| 6 | 04434-52110 | Clip | 90216-@ | |
| 7 | 01010-81025 | Bolt | 90216-@ | |
| 8 | 01643-31032 | Washer | 90216-@ | |
| 9 | 714-07-48411 | Flange | 90216-@ | |
| 10 | 07000-73035 | O-ring, (Kit : K06) | 90216-@ | |
| 11 | 01010-81030 | Bolt | 90216-@ | |
| 12 | 01643-31032 | Washer | 90216-@ | |
| 13 | 714-07-38130 | Elbow | 90216-@ | |
| 14 | 07002-61023 | O-ring, (Kit : K06) | 90216-@ | |
| 15 | 421-16-41210 | Block | 90216-@ | |
| 16 | 421-16-45110 | Hose | 90216-@ | |
| 17 | 11Y-09-11140 | Clip | 90216-@ | |
| 18 | 07030-00252 | Breather | 90216-@ | |
| 19 | 419-15-18241 | Plug | 90216-90783 | |
| 20 | 07002-62434 | O-ring, (Kit : K06) | 90216-90783 | |
| 21 | 419-15-18251 | Ring, Snap | 90216-90783 | |
| 22 | (09608-05080) | Plate, Name (Limited Supply) | 90216-@ | |
| 23 | 04418-13060 | Screw | 90216-@ | |
| 24 | 714-12-38400 | Gauge Assembly | 90216-@ | |
| 24 | 714-12-38410 | Tube | 90216-@ | |
| 24 | 714-12-38420 | Block | 90216-@ | |
| 24 | 714-12-38430 | Bolt | 90216-@ | |
| 24 | 714-12-38440 | O-ring | 90216-@ | |
| 24 | 07000-A2016 | O-ring | 90216-@ | |
| 25 | 714-12-38550 | Cover | 90216-@ | |
| 26 | 01010-81020 | Bolt | 90216-@ | |
| 27 | 01643-31032 | Washer | 90216-@ | |
| 28 | 714-07-48550 | Tube | 90216-@ | |
| 29 | 01011-81000 | Bolt | 90216-@ | |
| 30 | 01643-31032 | Washer | 90216-@ | |
| 31 | 07000-73030 | O-ring, (Kit : K06) | 90216-@ | |
| 32 | 07000-72015 | O-ring, (Kit : K06) | 90216-@ | |
| 33 | 708-8E-16150 | Plug | 90216-@ | |
| 34 | 07002-61023 | O-ring, (Kit : K06) | 90216-@ |
