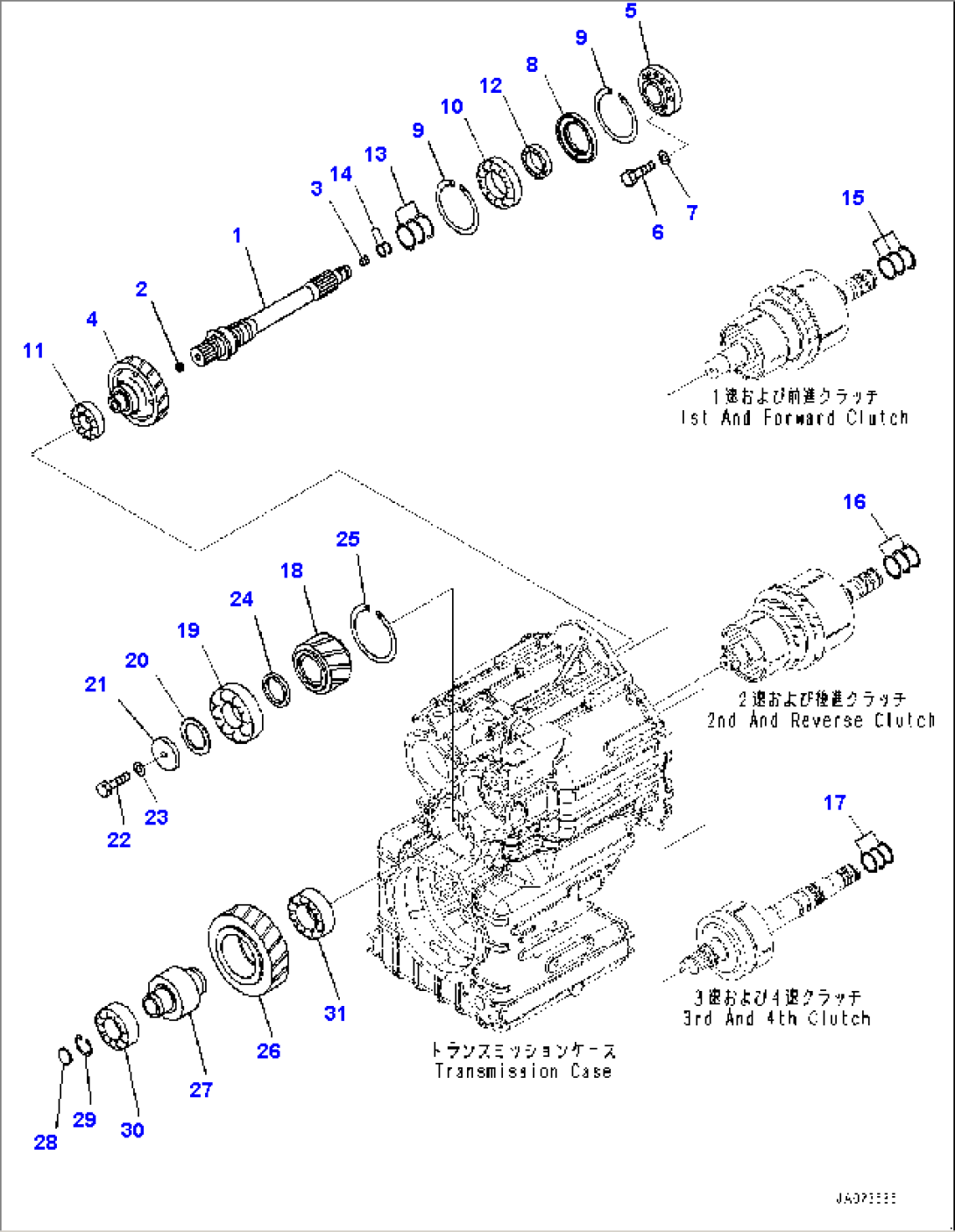

| Item | Part No. | Part Name | Qty | Serial No. |
| 714-07-40012 | Transmission Assembly | 91576- | ||
| 714-07-40011 | Transmission Assembly | 90784-91575 | ||
| 714-07-40010 | Transmission Assembly | 90216-90783 | ||
| 1 | 714-07-45823 | Wiring Harness | 90216- | |
| 2 | 21J-06-13661 | Diode | 90216- | |
| 3 | 600-051-2180 | Clip | 90216- | |
| 4 | 600-051-2260 | Clip | 90216- | |
| 5 | 714-12-38760 | Bracket | 90216- | |
| 6 | 23B-40-43210 | Clip | 90216- | |
| 7 | 07095-20523 | Cushion | 90216- | |
| 8 | 01010-81020 | Bolt | 90216- | |
| 9 | 01643-31032 | Washer | 90216- | |
| 10 | 01010-81030 | Bolt | 90216- | |
| 11 | 01643-31032 | Washer | 90216- | |
| 12 | 560-43-15220 | Washer | 90216- | |
| 13 | 01010-81045 | Bolt | 90216- | |
| 14 | 01643-31032 | Washer | 90216- | |
| 15 | 144-874-7470 | Sheet | 90216- | |
| 16 | 600-051-2190 | Clip | 90216- | |
| 17 | 600-051-2200 | Clip | 90216- | |
| 18 | 714-07-45851 | Bracket | 90216- | |
| 19 | 01010-81020 | Bolt | 90216- | |
| 20 | 01643-31032 | Washer | 90216- | |
| 21 | 01010-81045 | Bolt | 90216- | |
| 22 | 01643-31032 | Washer | 90216- | |
| 23 | 600-051-2160 | Clip | 90216- | |
| 24 | 6150-81-6940 | Spacer | 90216- | |
| 25 | 01010-81075 | Bolt | 90216- | |
| 26 | 01643-31032 | Washer | 90216- |
