| Item | Part No. | Part Name | Qty | Serial No. |

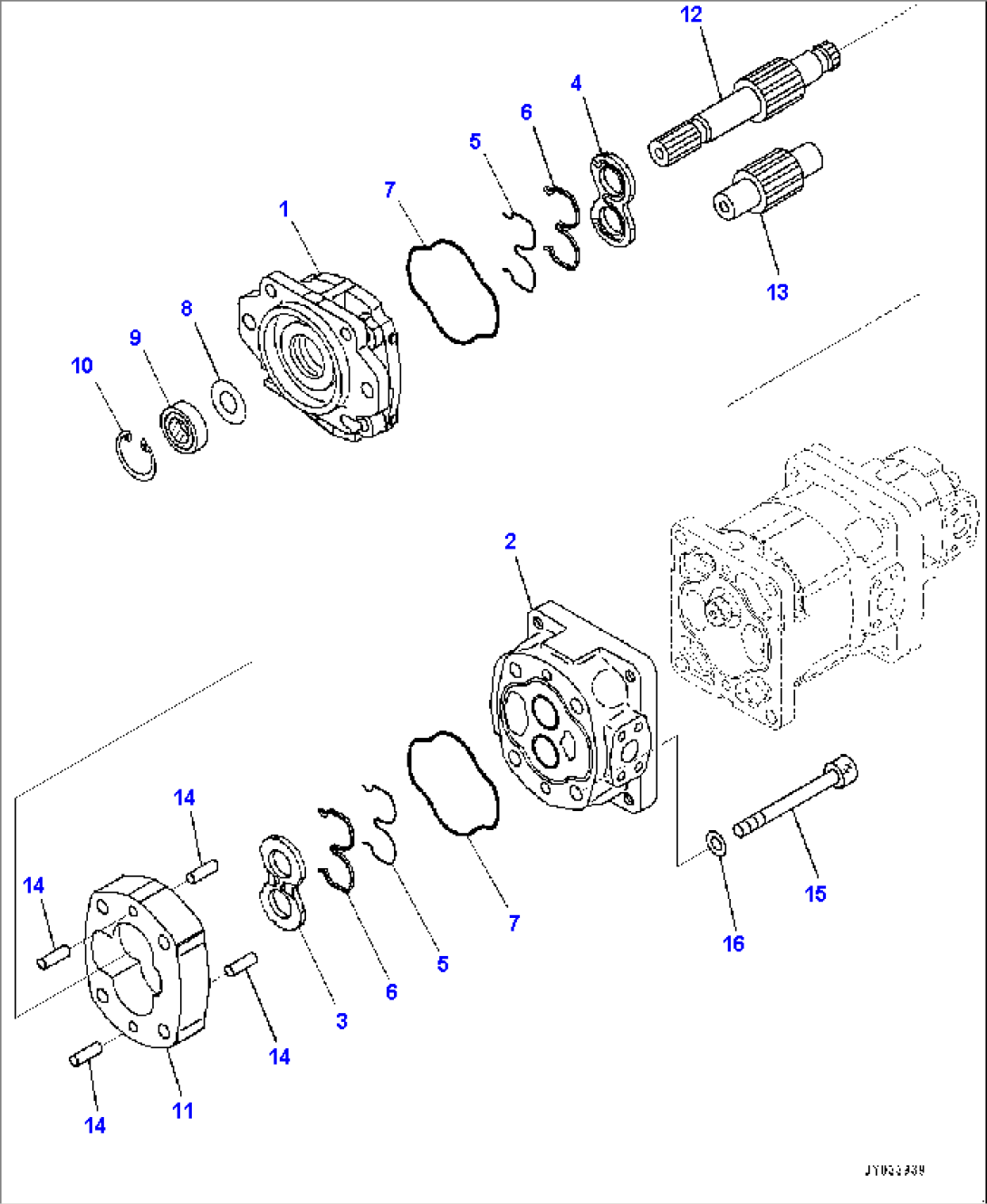

| 705-56-36100 | Pump Assembly, Gear (SAR 100 + 100 + 25) | 30001- | ||
| 705-22-40420 | Pump Assembly, Gear (SAR 100) | 30001- | ||
| 1 | (705-18-03620) | Bracket Assembly | 30001- | |
| (705-18-03350) | Bushing, Plane | 30001- | ||
| 2 | (705-18-03240) | Carrier Assembly | 30001- | |
| (705-18-03350) | Bushing, Plane | 30001- | ||
| 3 | 705-17-03630 | Plate, Side | 30001- | |
| 4 | 705-17-03640 | Plate, Side | 30001- | |
| 5 | 705-17-03443 | Ring, Back-up | 30001- | |
| 6 | 705-17-03473 | Seal | 30001- | |
| 7 | 705-17-03381 | O-ring | 30001- | |
| 8 | 705-17-03870 | Plate | 30001- | |
| 9 | 705-17-03811 | Seal, Oil | 30001- | |
| 10 | 04065-05220 | Ring, Snap | 30001- | |
| 11 | (705-17-40010) | Case, Gear | 30001- | |
| 12 | (705-17-40730) | Gear, Drive | 30001- | |
| 13 | (705-17-40810) | Gear, Driven | 30001- | |
| 14 | 04020-01228 | Pin, Dowel | 30001- | |
| 15 | 01253-61635 | Bolt, Hexagon Socket Head | 30001- | |
| 16 | 01643-51645 | Washer | 30001- |
