| Item | Part No. | Part Name | Qty | Serial No. |
| 714-07-40002 | Transmission Assembly | | 91576- |
| 714-07-40001 | Transmission Assembly | | 90784-91575 |

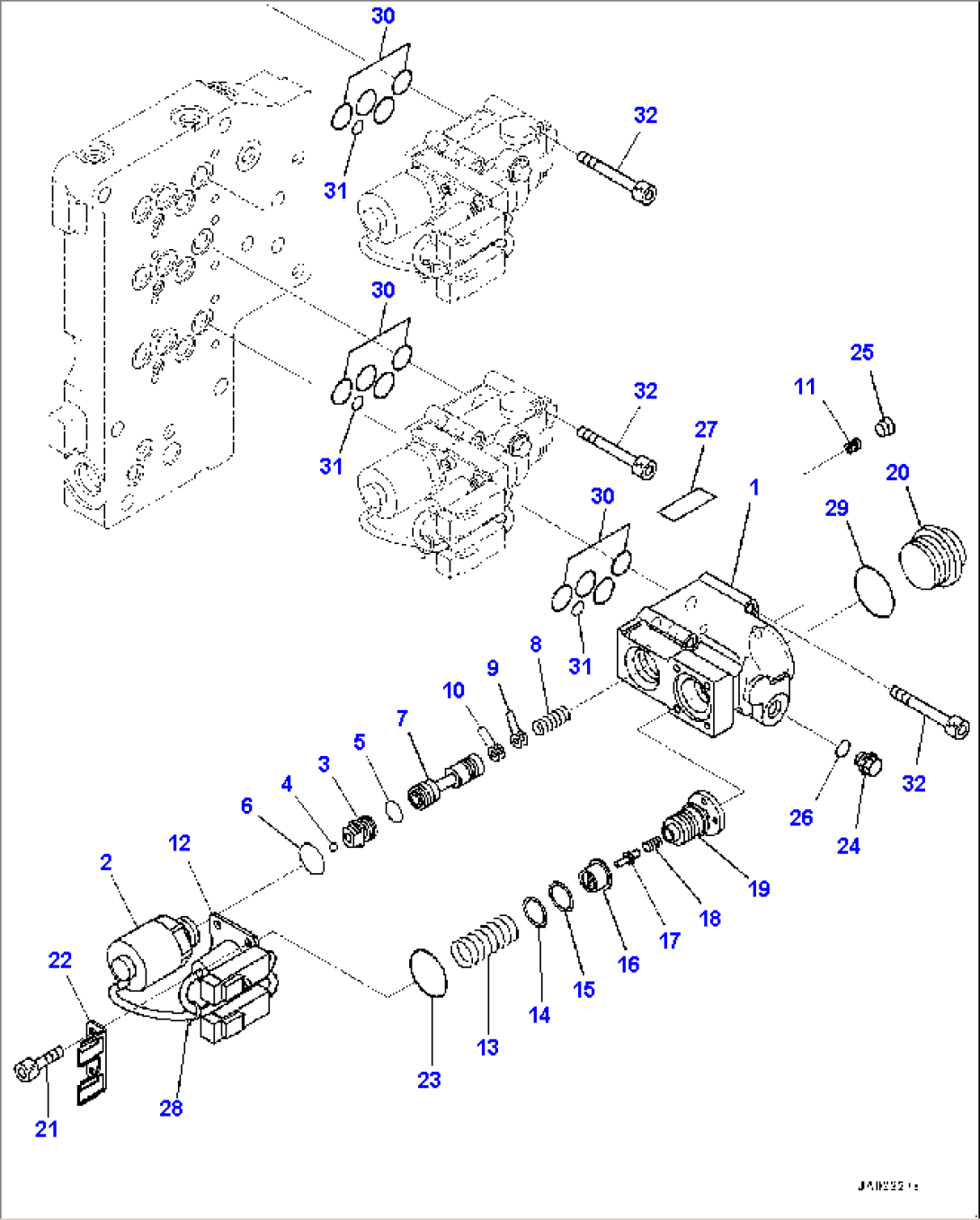

| 714-07-45101 | Valve Assembly | | (102086- |
| 23C-15-65301 | Valve Assembly | | (102086- |
| 1 | | Valve Body | | 90216- |
| 2 | | Solenoid Assembly | | (101404- |
| 3 | | Valve | | 90216- |
| 4 | | Ball | | 90216- |
| 5 | | O-ring | | 90216- |
| 6 | | O-ring | | 90216- |
| 7 | | Spool | | 90216- |
| 8 | | Spring, L=24.5mm | | 90216- |
| 9 | | Shim, T=0.50mm | | 90216- |
| 10 | | Shim, T=0.20mm | | 90216- |
| 11 | | Plug | | 90216- |
| 12 | | Switch Assembly, Clutch Oil Fill | | 90216- |
| 13 | | Spring, L=23.4mm | | 90216- |
| 14 | | Shim, T=0.50mm | | 90216- |
| 15 | | Shim, T=0.20mm | | 90216- |
| 16 | | Seat, Spring | | 90216- |
| 17 | | Pin | | (102086- |
| 18 | | Spring, L=18.0mm | | (102086- |
| 19 | | Spool | | (102086- |
| 20 | | Plug | | 90216- |
| 21 | 01252-90510 | Bolt, Hexagon Socket Head | | (101404- |
| 22 | 714-23-15690 | Bracket | | 90216- |
| 23 | | O-ring | | 90216- |
| 24 | 708-8E-16150 | Plug | | 90216- |
| 25 | | Plug, Taper | | 90216- |
| 26 | 07002-61023 | O-ring, (Kit : K05) | | 90216- |
| 27 | (700-11-31940) | Plate, Name (Limited Supply) | | 90216- |
| 28 | 08034-00310 | Band, White | | 90216- |
| 29 | | O-ring | | 90216- |
| 30 | 07000-72015 | O-ring, (Kit : K05) | | 90216- |
| 31 | 07000-71007 | O-ring, (Kit : K05) | | 90216- |
| 32 | 01252-A0650 | Bolt, Hexagon Socket Head | | (102086- |
