| Item | Part No. | Part Name | Qty | Serial No. |

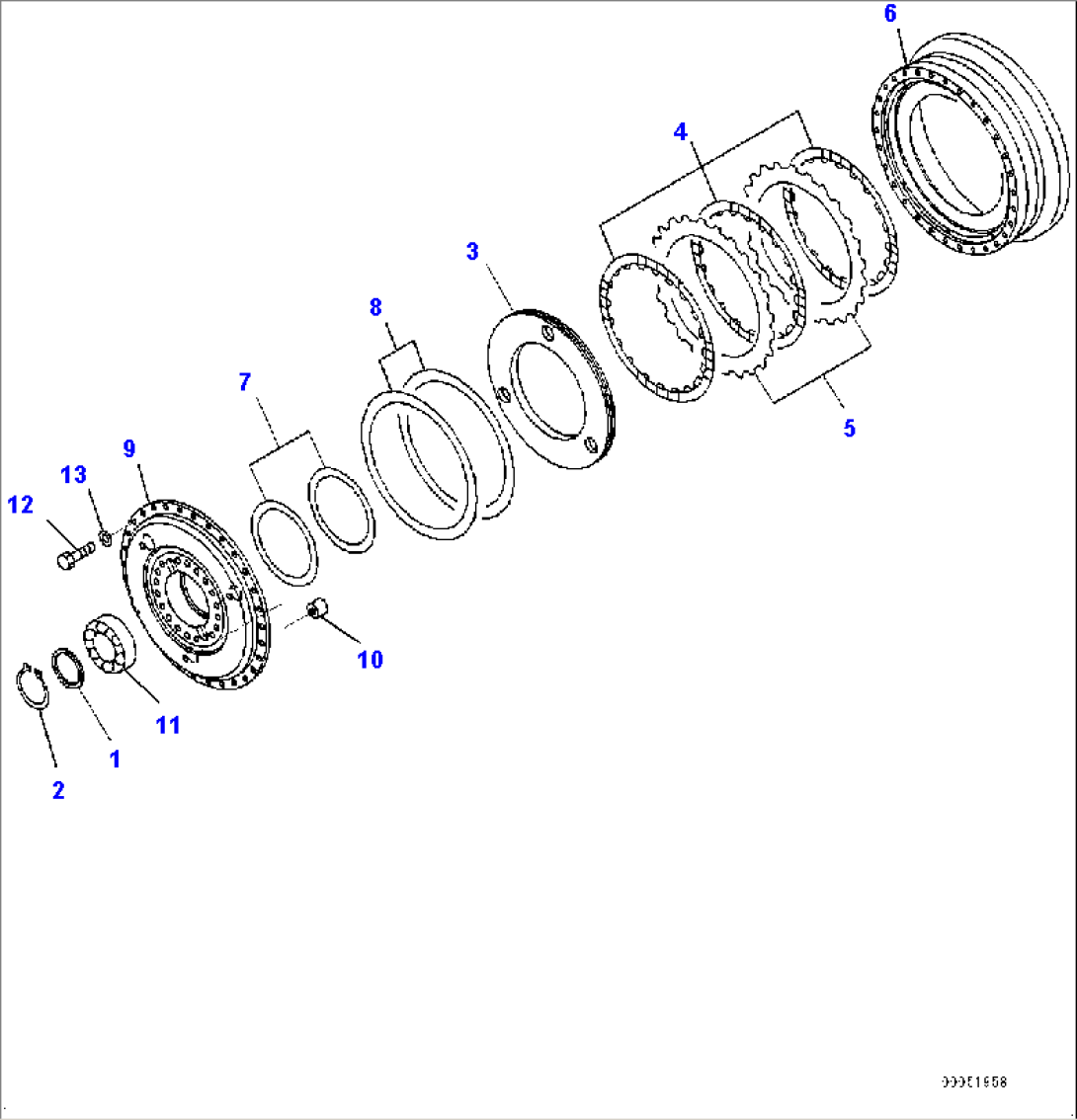

| 561-13-71000 | Torque Converter Assembly | 8173- | ||
| 1 | 568-13-11770 | Plate | 8173- | |
| 2 | 04064-08530 | Ring, Snap, for Shaft Side | 8173- | |
| 3 | 561-13-77210 | Piston | 8173- | |
| 4 | 195-15-32710 | Disc | 8173- | |
| 5 | 281-15-12720 | Plate | 8173- | |
| 6 | 561-13-71211 | Case | 8173- | |
| 7 | 113-15-12861 | Seal Ring, (Kit : K01, K02) | 8173- | |
| 8 | 426-15-19220 | Seal Ring, (Kit : K01, K02) | 8173- | |
| 8 | 561-13-77110 | Housing, Complete | 8173- | |
| 9 | Housing | 8173- | ||
| 10 | 711-31-27130 | Pin | 8173- | |
| 11 | 711-20-11550 | Bearing | 8173- | |
| 12 | 01010-81235 | Bolt | 8173- | |
| 13 | 01643-31232 | Washer | 8173- |
