| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-27-31130 | Tube | 5129- | |
| 2 | 07000-B3028 | O-ring | 5129- | |
| 3 | 01010-81060 | Bolt | 5129- | |
| 4 | 01643-31032 | Washer | 5129- | |
| 5 | 07260-22656 | Hose | 5129- | |
| 6 | 07289-00035 | Clamp | 5129- | |
| 7 | (56B-27-31140) | Tube | - |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 3m0 s/n 5129 up ( 40°c spec.)
- Power transmitting system
- Torque converter and transmission, front differential oil filler piping (#5129 )
Поиск по каталогу

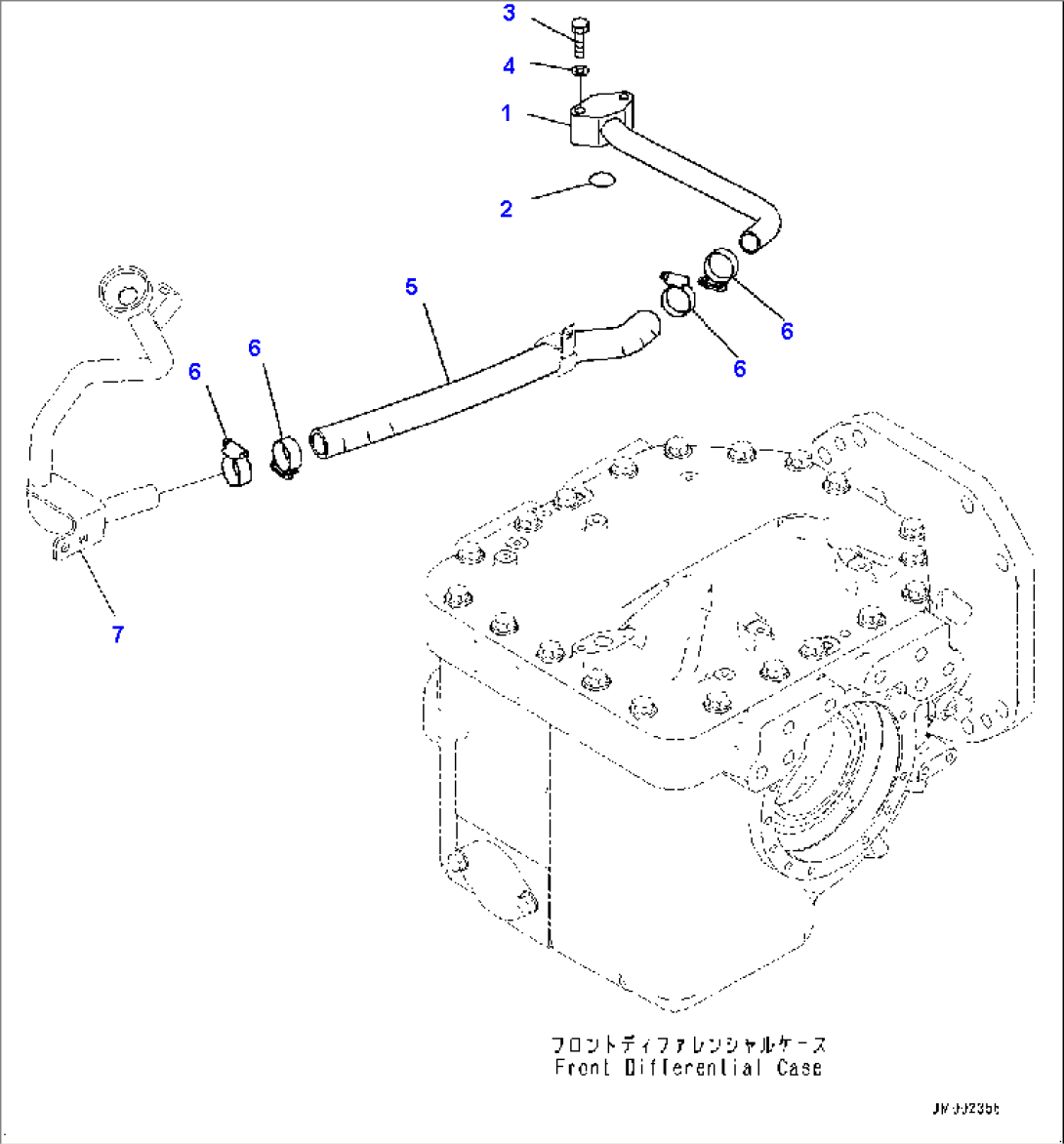

Torque Converter and Transmission, Front Differential Oil Filler Piping (#5129-)
