| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-16-21160 | TUBE | 50001-50869 | |
| 1A | 07042-30108 | PLUG | 50236-@ | |
| 2 | 07000-A3035 | O-RING | 50001-@ | |
| 3 | 01435-01060 | BOLT | 50001-@ | |
| 4 | 425-16-21190 | TUBE | 50001-50869 | |
| 5 | 07000-A3045 | O-RING | 50001-@ | |
| 6 | 01435-01265 | BOLT | 50001-@ |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Torque converter and transmission
- Torque converter and transmission line (oil cooler piping¤ transmission side)(#50001 50869)
Поиск по каталогу

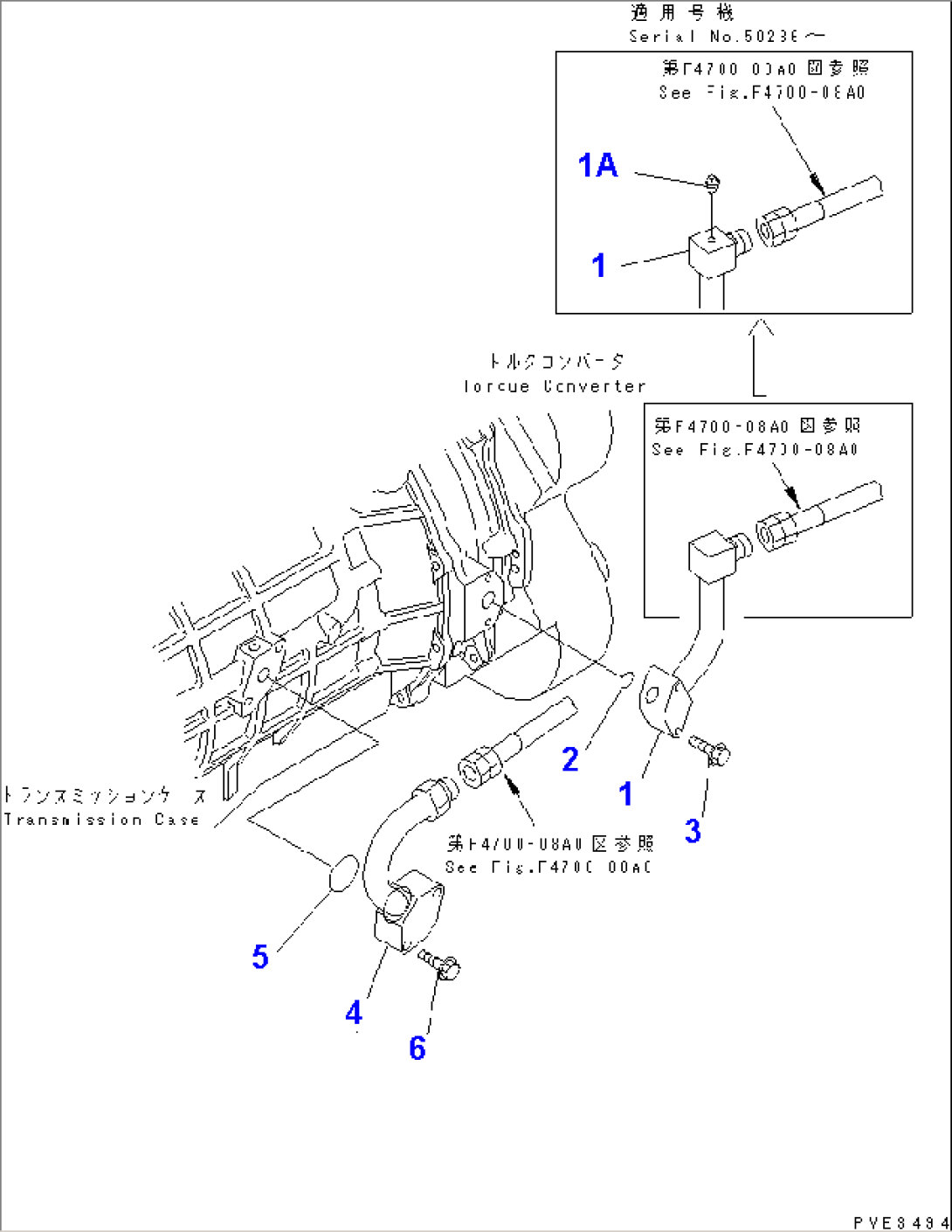

TORQUE CONVERTER AND TRANSMISSION LINE (OIL COOLER PIPING¤ TRANSMISSION SIDE)(#50001-50869)
