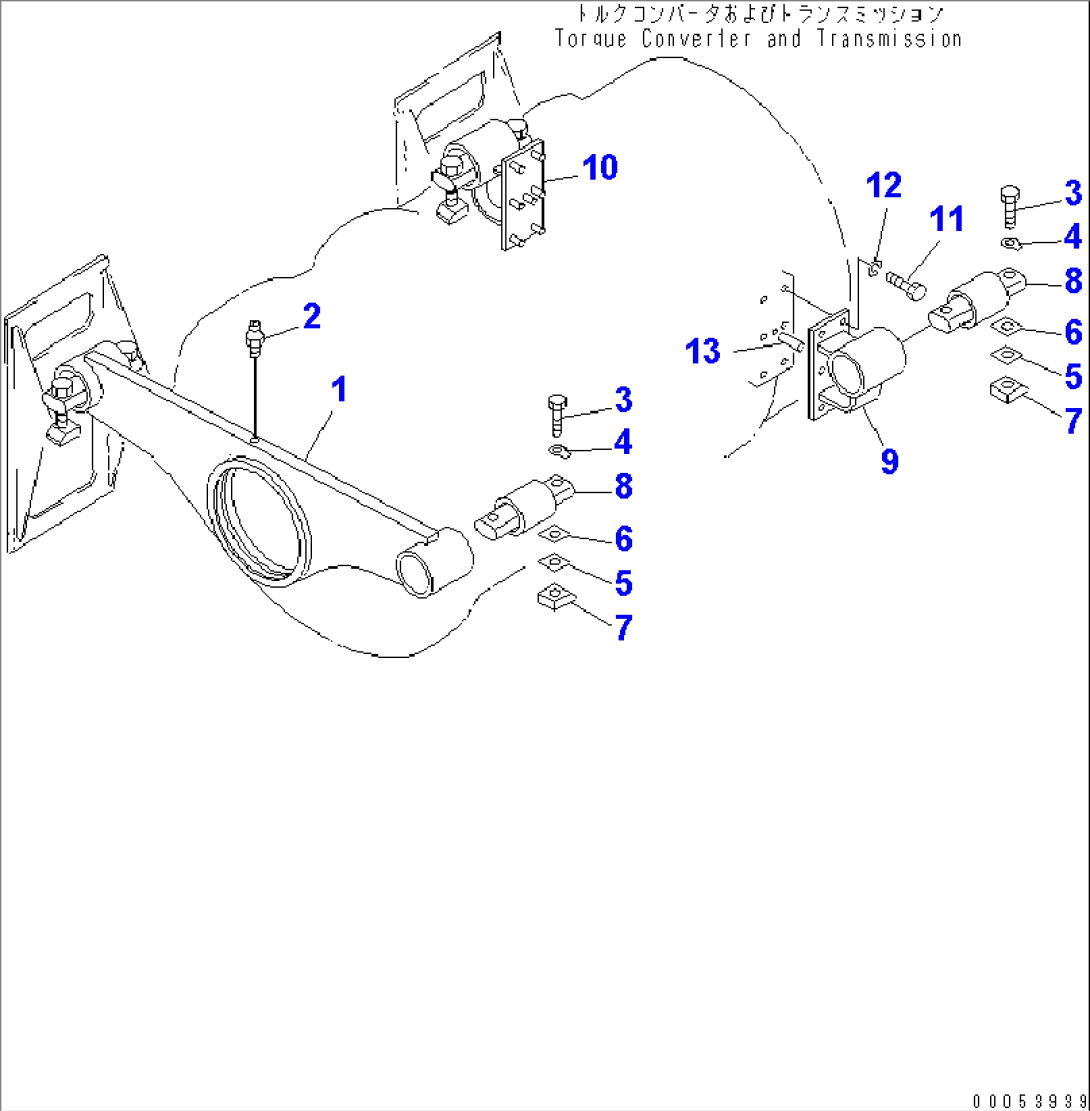

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 568-16-12141 | TRUNNION | 1002- | |
| 2 | 07020-00675 | FITTING | 1002- | |
| 3 | 01010-82085 | BOLT | 1002- | |
| 4 | 01643-32060 | WASHER | 1002- | |
| 5 | 568-16-12120 | SHIM, 1.0MM | 1002- | |
| 6 | 568-16-12130 | SHIM, 0.5MM | 1002- | |
| 7 | 568-16-12220 | SEAT | 1002- | |
| 8 | 568-16-12151 | CUSHION | 1002- | |
| 9 | 561-16-32880 | BRACKET,L.H. | 1002- | |
| 10 | 561-16-32890 | BRACKET,R.H. | 1002- | |
| 11 | 01010-81640 | BOLT | 1002- | |
| 12 | 01643-31645 | WASHER | 1002- | |
| 13 | 04020-01842 | PIN | 1002- |
