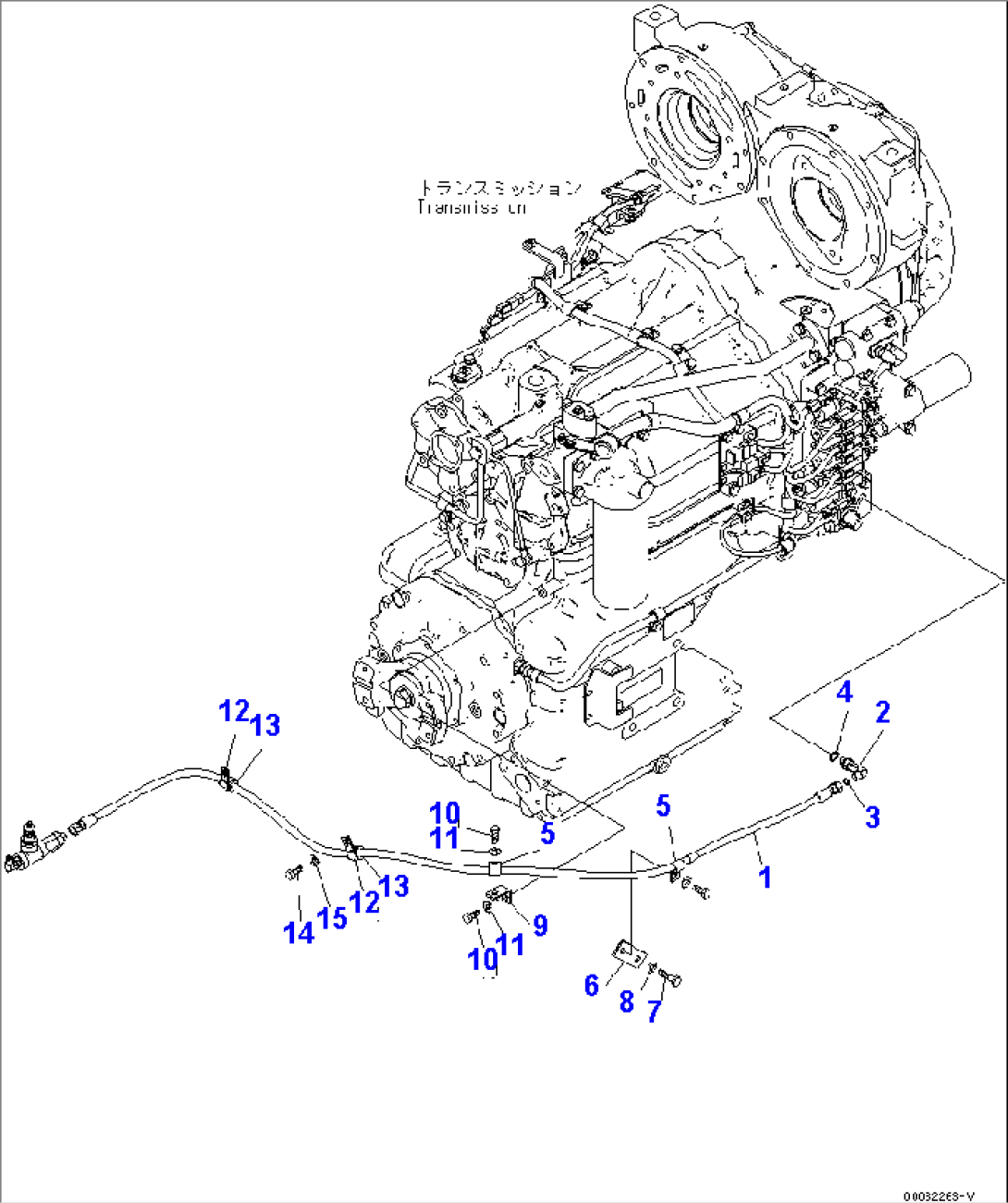

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-43-47560 | HOSE, 2015MM | 90001- | |
| 2 | 02782-1021A | ELBOW | 90001- | |
| 3 | 02896-61008 | O-RING | 90001- | |
| 4 | 07002-61423 | O-RING | 90001- | |
| 5 | 04434-51310 | CLIP | 90001- | |
| 6 | 421-43-47570 | BRACKET | 90001- | |
| 7 | 01010-81060 | BOLT | 90001- | |
| 8 | 01643-31032 | WASHER | 90001- | |
| 9 | 22T-61-18130 | BRACKET | 90001- | |
| 10 | 01010-81020 | BOLT | 90001- | |
| 11 | 01643-31032 | WASHER | 90001- | |
| 12 | 04434-51910 | CLIP | 90001- | |
| 13 | 07095-20213 | CUSHION | 90001- | |
| 14 | 01010-81020 | BOLT | 90001- | |
| 15 | 01643-31032 | WASHER | 90001- |
