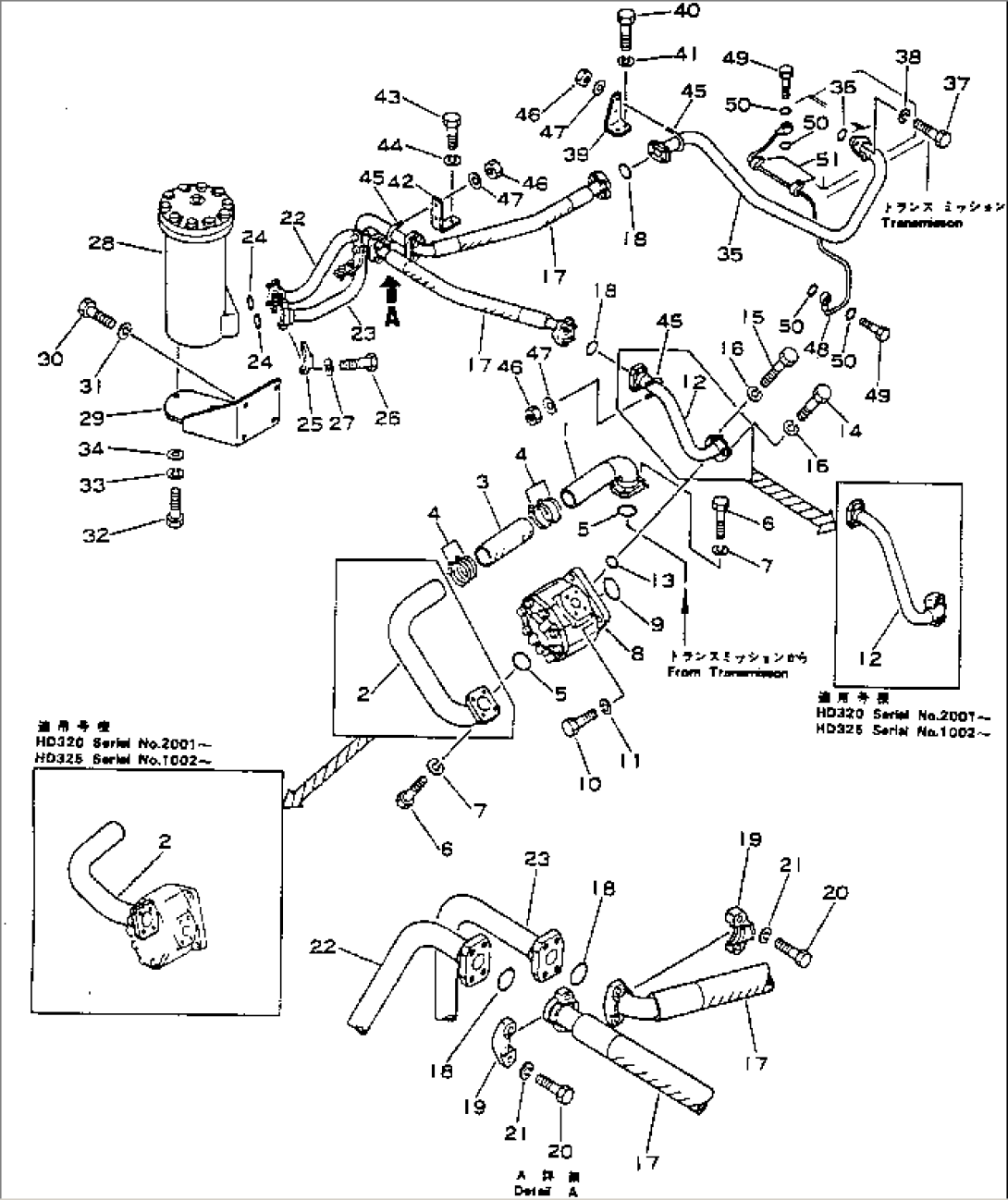

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-16-11492 | TUBE | 1002- | |
| 2 | 566-16-11523 | TUBE | 1000-1000 | |
| 2 | 566-16-31121 | TUBE | 1002- | |
| 3 | 07260-25822 | HOSE | 1002- | |
| 4 | 07281-10809 | CLAMP | 1002- | |
| 5 | 07000-12060 | O-RING | 1002- | |
| 6 | 01010-51250 | BOLT | 1002- | |
| 7 | 01602-21236 | WASHER | 1002- | |
| 8 | (07439-66103) | PUMP ASS'Y | 1002- | |
| 9 | 07000-12080 | O-RING | 1002- | |
| 10 | 01010-51245 | BOLT | 1002- | |
| 11 | 01602-21236 | WASHER | 1002- | |
| 12 | 566-16-11532 | TUBE | 1000-1000 | |
| 12 | 566-16-31131 | TUBE | 1002- | |
| 13 | 07000-13035 | O-RING | 1002- | |
| 14 | 01010-51050 | BOLT | 1002- | |
| 15 | 01010-51060 | BOLT | 1002- | |
| 16 | 01602-21030 | WASHER | 1002- | |
| 17 | 07114-01007 | HOSE | 1002- | |
| 18 | 07000-13032 | O-RING | 1002- | |
| 19 | 07371-31049 | FLANGE | 1002- | |
| 20 | 07372-21035 | BOLT | 1002- | |
| 21 | 01602-21030 | WASHER | 1002- | |
| 22 | 566-16-11764 | TUBE | 1002- | |
| 23 | 566-16-11774 | TUBE | 1002- | |
| 24 | 07000-13038 | O-RING | 1002- | |
| 25 | 07371-31255 | FLANGE | 1002- | |
| 26 | 07372-21030 | BOLT | 1002- | |
| 27 | 01602-21030 | WASHER | 1002- | |
| 28 | (145-60-37102) | FILTER ASS'Y | 1002- | |
| 29 | 566-60-18213 | BRACKET | 1002- | |
| 30 | 01010-31430 | BOLT | 1002- | |
| 31 | 01602-21442 | WASHER | 1002- | |
| 32 | 01010-51435 | BOLT | 1002- | |
| 33 | 01602-21442 | WASHER | 1002- | |
| 34 | 01643-31445 | WASHER | 1002- | |
| 35 | 566-16-11592 | TUBE | 1002- | |
| 36 | 07000-13028 | O-RING | 1002- | |
| 37 | 01010-51035 | BOLT | 1002- | |
| 38 | 01602-21030 | WASHER | 1002- | |
| 39 | 566-16-11542 | BRACKET | 1002- | |
| 40 | 01010-51025 | BOLT | 1002- | |
| 41 | 01602-21030 | WASHER | 1002- | |
| 42 | 566-16-11451 | BRACKET | 1002- | |
| 43 | 01010-51225 | BOLT | 1002- | |
| 44 | 01602-21236 | WASHER | 1002- | |
| 45 | 07283-23442 | CLIP | 1002- | |
| 46 | 01599-01011 | NUT | 1002- | |
| 47 | 01643-31032 | WASHER | 1002- | |
| 48 | (566-16-11633) | TUBE | 1002- | |
| 49 | (6631-51-9580) | BOLT | 1002- | |
| 50 | (07000-12012) | O-RING | 1002- | |
| 51 | (566-16-11970) | CLIP | 1002- |
