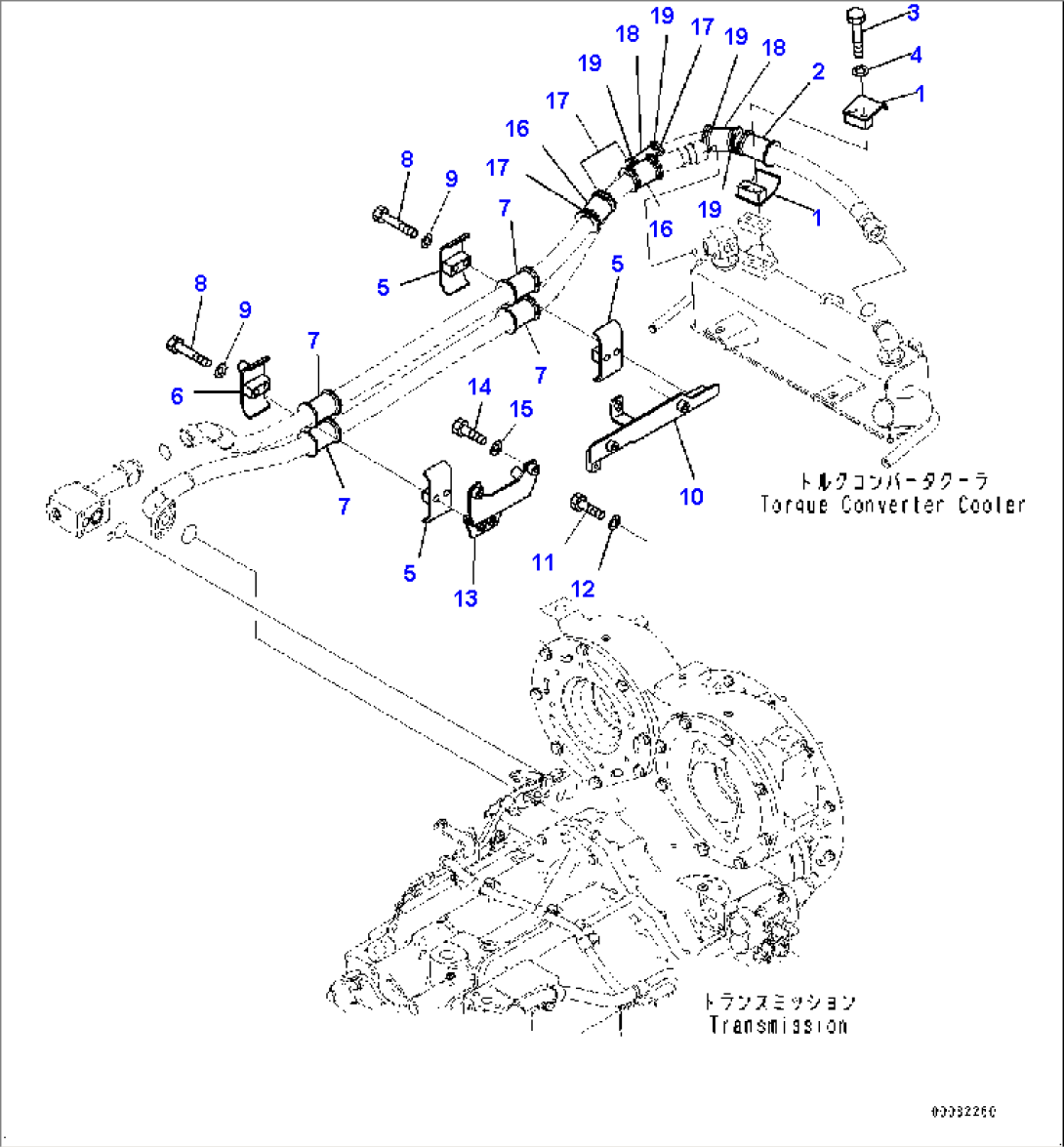

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22P-62-13530 | Clamp | 90216-@ | |
| 2 | 07095-01035 | Cushion | 90216-@ | |
| 3 | 01010-81280 | Bolt | 90216-@ | |
| 4 | 01643-31232 | Washer | 90216-@ | |
| 5 | 22P-62-13560 | Clamp | 90216-@ | |
| 6 | 421-62-41450 | Clamp | 90216-@ | |
| 7 | 07095-01035 | Cushion | 90216-90445 | |
| 8 | 01010-81280 | Bolt | 90216-@ | |
| 9 | 01643-31232 | Washer | 90216-@ | |
| 10 | 421-62-41180 | Bracket | 90216-@ | |
| 11 | 01010-81035 | Bolt | 90216-@ | |
| 12 | 01643-31032 | Washer | 90216-@ | |
| 13 | 421-62-41440 | Bracket | 90216-@ | |
| 14 | 01010-81035 | Bolt | 90216-@ | |
| 15 | 01643-31032 | Washer | 90216-@ | |
| 16 | 07095-01035 | Cushion | 90216-90445 | |
| 17 | 08034-20823 | Band | 90216-@ | |
| 18 | 07095-01035 | Cushion | 90216-@ | |
| 19 | 08034-20823 | Band | 90216-@ |
