| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-09-41111 | HOSE¤ 1555MM | A38001- | |
| 2 | 421-09-41122 | HOSE¤ 2285MM | A38001- | |
| 3 | 21W-62-42640 | ELBOW | A38001- | |
| 4 | 421-09-31140 | O-RING | A38001- | |
| 5 | 07002-23334 | O-RING | A38001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 6 s/n a38001 up
- Power train and final drive
- Torque converter and transmission (torque converter cooling line)
Поиск по каталогу

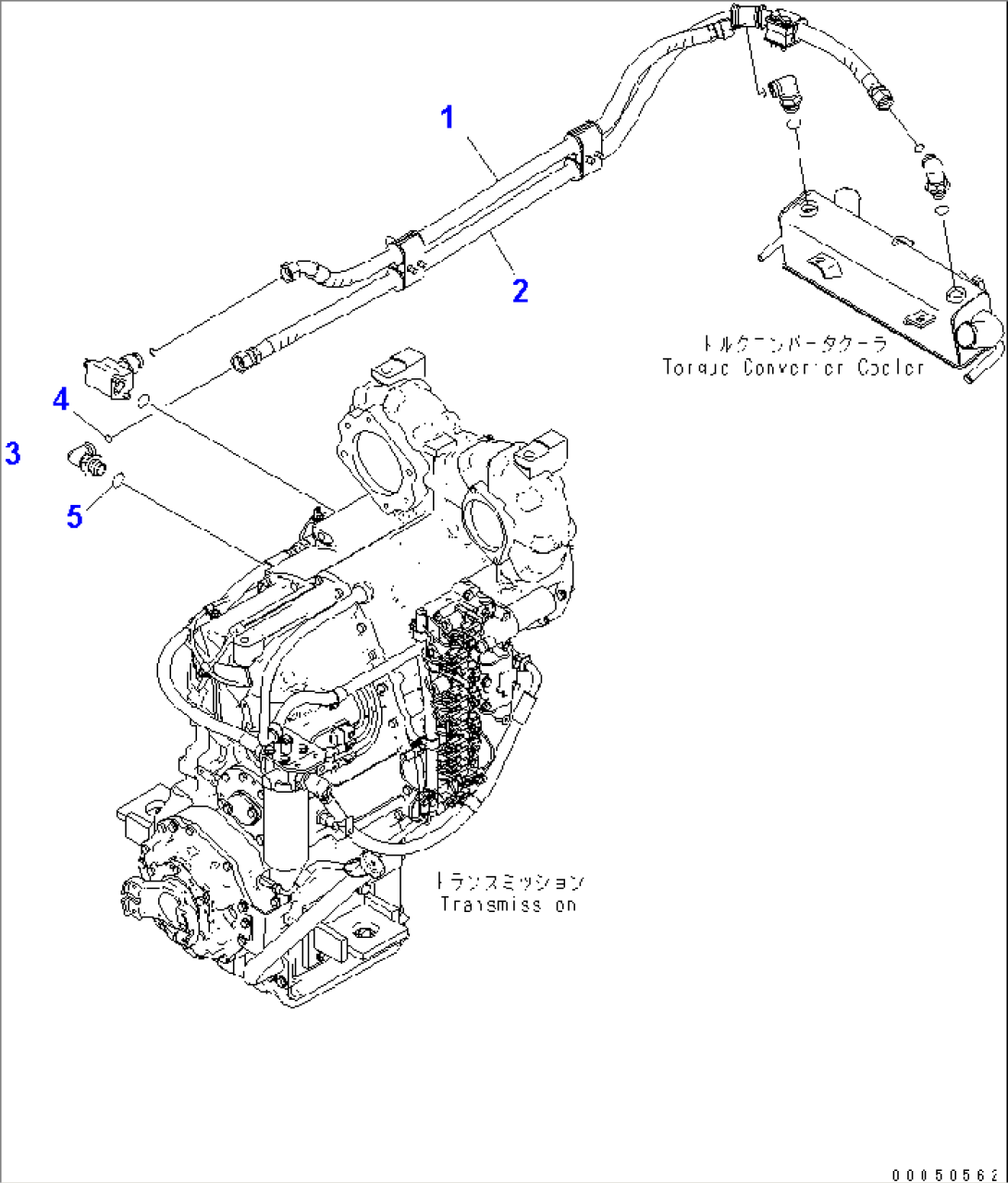

TORQUE CONVERTER AND TRANSMISSION (TORQUE CONVERTER COOLING LINE)
