| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-06-11570 | Bracket | 80138- | |
| 2 | 04434-53211 | Clip | 80138- | |
| 3 | 07095-20522 | Cushion | 80138- | |
| 4 | 04434-51910 | Clip | 80138- | |
| 5 | 07095-20213 | Cushion | 80138- | |
| 6 | 01010-81020 | Bolt | 80138- | |
| 7 | 01643-31032 | Washer | 80138- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd1500 7 s/n 80138 up (chassis only)
- Power transmitting system
- Torque converter and transmission, wiring harness mounting (#80138 )
Поиск по каталогу

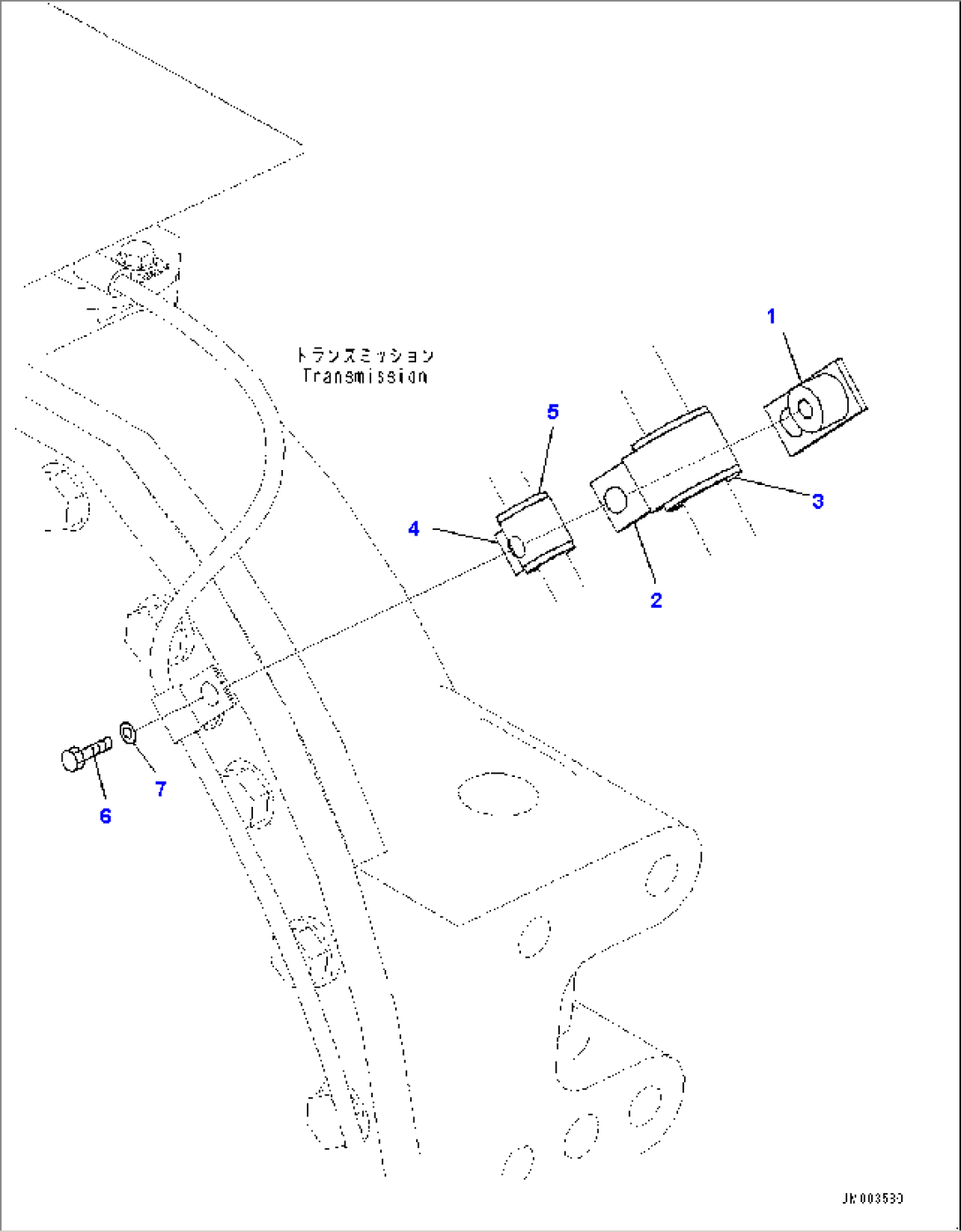

Torque Converter and Transmission, Wiring Harness Mounting (#80138-)
