| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| 711-56-31004 | TORQUE CONVERTER A. | 50018- | ||
| \0\711-56-31003 | TORQUE CONVERTER A. | 50001-50017 | ||

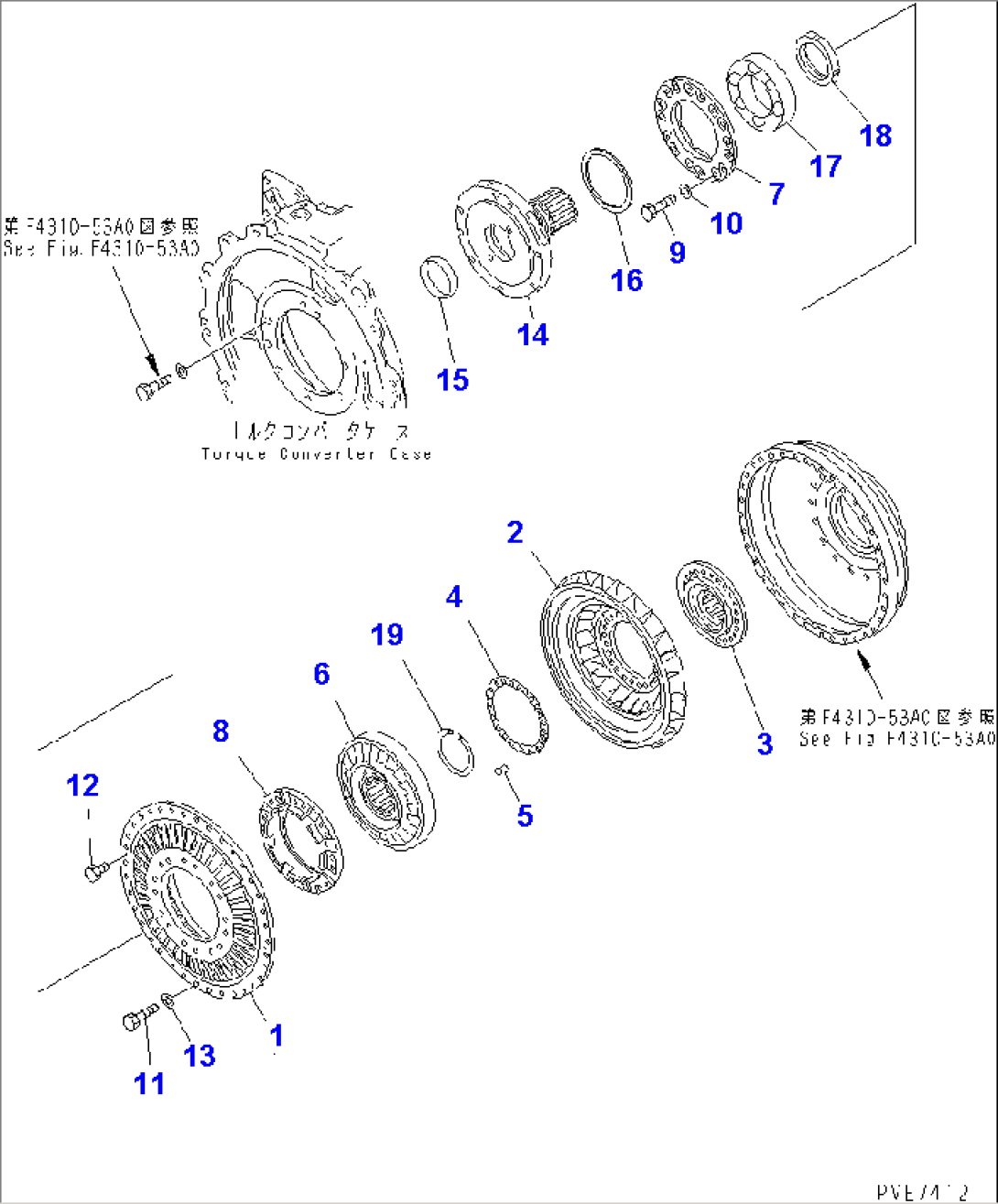

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4310-51A0 TO F4310-56A0. | ||||
| 1 | 711-56-31122 | PUMP | 50001- | |
| 711-56-31511 | TURBINE ASS'Y | (1444)- | ||
| 711-56-31510 | TURBINE ASS'Y | 50001-(1443) | ||
| 2 | \6\ | TURBINE | 50001- | |
| 3 | \6\ | BOSS | (1444)- | |
| \6\ | BOSS | 50001-(1443) | ||
| 4 | \6\ | PLATE | 50001- | |
| 5 | 711-56-31550 | RIVET | 50001- | |
| 6 | 711-56-32110 | STATOR | 50001- | |
| 7 | 711-56-31142 | RETAINER | 50001- | |
| 8 | 711-56-31193 | GUIDE | (1444)- | |
| 711-56-31192 | GUIDE | 50001-(1443) | ||
| 9 | 01010-81045 | BOLT | 50001- | |
| 10 | 01643-31032 | WASHER | 50001- | |
| 11 | 01010-81035 | BOLT | 50001- | |
| 12 | 07040-11007 | PLUG | 50001- | |
| 13 | 01643-31032 | WASHER | 50001- | |
| 14 | 711-56-32521 | SHAFT | 50001- | |
| 15 | 711-56-32530 | SLEEVE | 50001- | |
| 16 | 07018-31706 | RING,SEAL (K1) | 50001- | |
| 17 | 711-56-31160 | BEARING | 50001- | |
| 18 | 711-56-32681 | LOCK NUT | 50001- | |
| 19 | 04070-00105 | RING | 50001- |
