| Item | Part No. | Part Name | Qty | Serial No. |
| 428-13-21001 | TORQUE CONVERTER A. | 51001- | ||
| 428-13-21000 | TORQUE CONVERTER A. | 50001-51000 | ||

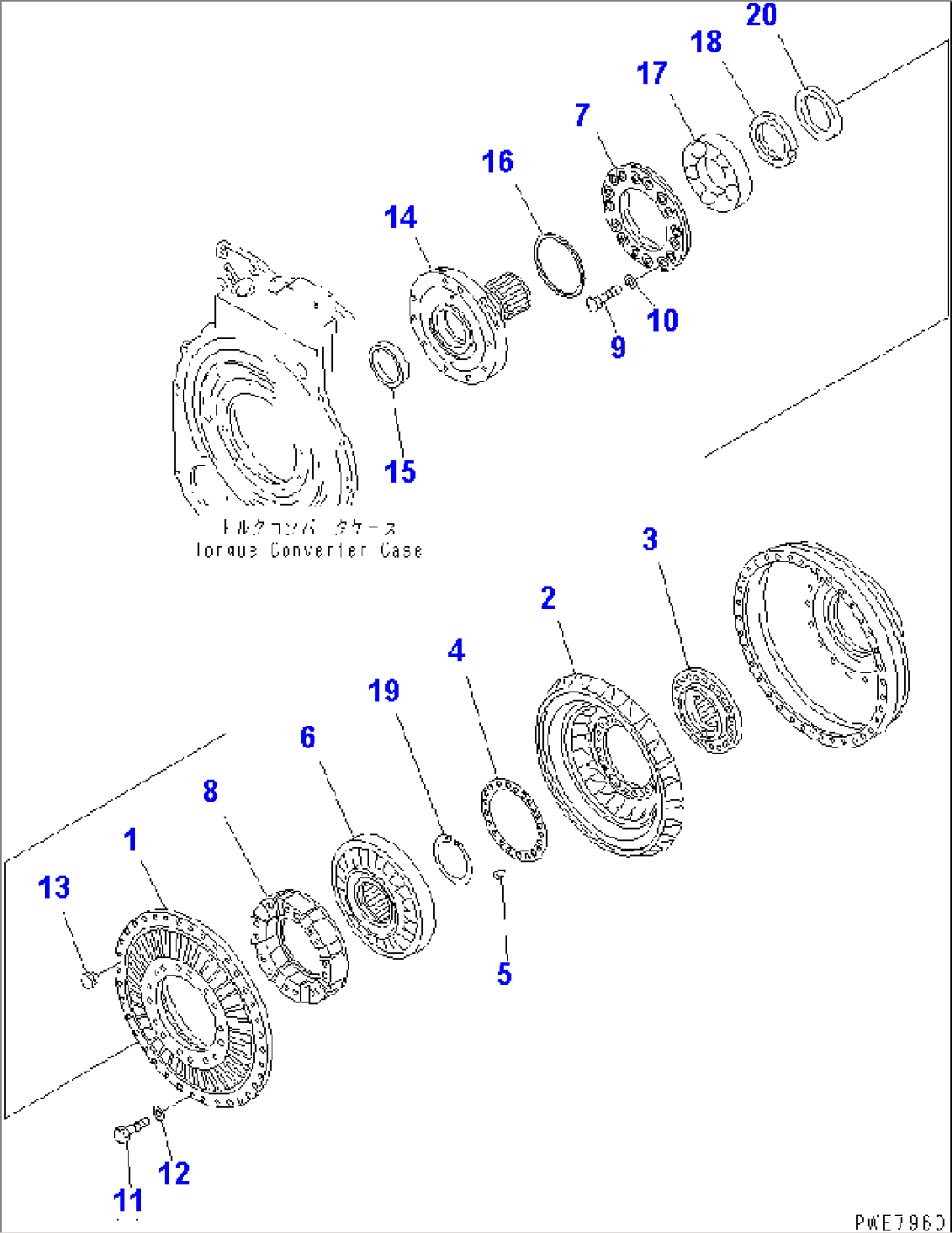

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4310-51A0 TO F4310-56A0A. | ||||
| 1 | 428-13-11121 | PUMP | 50001- | |
| 428-13-11510 | TURBINE ASS'Y | 50001- | ||
| 2 | \6\ | TURBINE | 50001- | |
| 3 | \6\ | BOSS | 50001- | |
| 4 | \6\ | PLATE | 50001- | |
| 5 | \6\ | RIVET | 50001- | |
| 6 | 428-13-12111 | STATOR | 50001- | |
| 7 | 428-13-11140 | RETAINER | 50001- | |
| 8 | 428-13-11191 | GUIDE | 50001- | |
| 9 | 01010-81045 | BOLT | 50001- | |
| 10 | 01643-31032 | WASHER | 50001- | |
| 11 | 01010-81035 | BOLT | 50001- | |
| 12 | 01643-31032 | WASHER | 50001- | |
| 13 | 07040-11007 | PLUG | 50001- | |
| 14 | 428-13-12521 | SHAFT | 50001- | |
| 15 | 428-13-12530 | SLEEVE | 50001- | |
| 16 | 07018-31706 | RING | 50001- | |
| 17 | 711-35-13350 | BEARING | 50001- | |
| 18 | 711-56-32680 | LOCK NUT | 50001- | |
| 19 | 04064-09530 | RING | 50001- | |
| 20 | 428-13-11770 | PLATE | 50001- |
