| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 154-13-61001 | TORQUE CONVERTER A. | 10060- | ||
| 154-13-61000 | TORQUE CONVERTER A. | 10001-10059 | ||

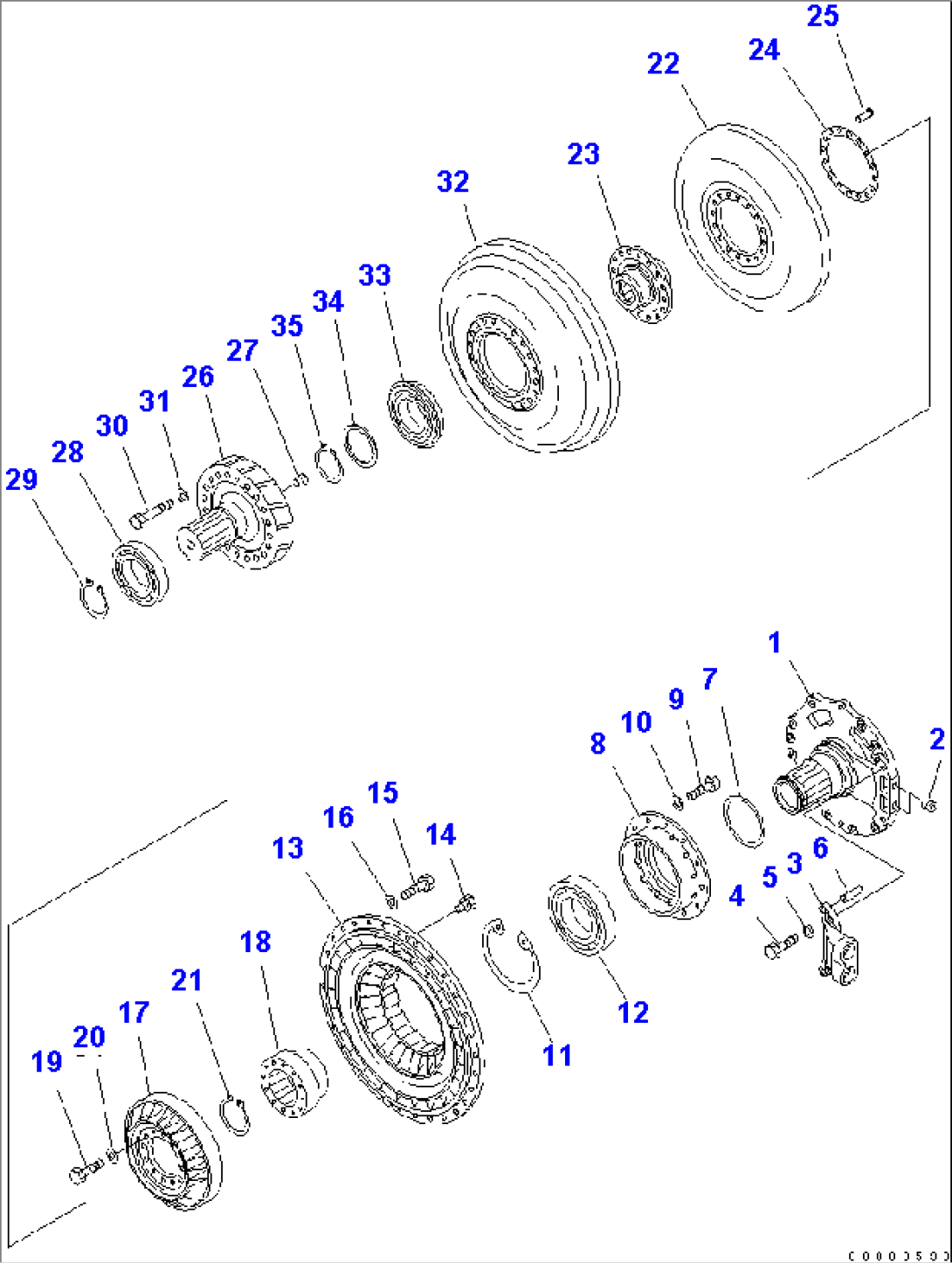

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2310-51A0 TO F2310-55A0. | ||||
| 1 | 154-13-62521 | STATOR SHAFT | (100494)- | |
| 1 | 154-13-62520 | STATOR SHAFT | 10001-(100498) | |
| 2 | 07043-70211 | PLUG | 10001- | |
| 3 | 154-13-62530 | FLANGE | 10001- | |
| 4 | 01010-81030 | BOLT | 10001- | |
| 5 | 01643-31032 | WASHER | 10001- | |
| 6 | 04020-01228 | PIN,DOWEL | 10001- | |
| 7 | 07018-31205 | RING (K1) | 10001- | |
| 8 | 154-13-61140 | RETAINER | 10001- | |
| 9 | 01010-81035 | BOLT | 10001- | |
| 10 | 01643-31032 | WASHER | 10001- | |
| 11 | 04071-00170 | RING,SNAP | 10001- | |
| 12 | 154-13-61160 | BEARING | 10001- | |
| 13 | 154-13-61120 | PUMP | 10001- | |
| 14 | 07040-11007 | PLUG | 10001- | |
| 15 | 01010-81035 | BOLT | 10001- | |
| 16 | 01643-31032 | WASHER | 10001- | |
| 17 | 154-13-62110 | STATOR | 10001- | |
| 18 | 154-13-62120 | RACE | 10001- | |
| 19 | 01010-81035 | BOLT | 10001- | |
| 20 | 01643-31032 | WASHER | 10001- | |
| 21 | 04064-08025 | RING,SNAP | 10001- | |
| 154-13-61510 | TURBINE COMPLETE | 10001- | ||
| 22 | \6\ | TURBINE | 10001- | |
| 23 | \6\ | TURBINE BOSS | 10001- | |
| 24 | \6\ | PLATE | 10001- | |
| 25 | \6\ | RIVET | 10001- | |
| 154-13-00350 | SHAFT ASS'Y | 10001- | ||
| 26 | \6\ | SHAFT | 10001- | |
| 27 | \6\ | ORIFICE | 10001- | |
| 28 | 17A-13-39320 | BEARING | (100286)- | |
| 28 | 06031-00216 | BEARING | 10001-(100285) | |
| 29 | 04064-08025 | RING,SNAP | 10001- | |
| 30 | 01010-81270 | BOLT | 10001- | |
| 31 | 01643-31232 | WASHER | 10001- | |
| 32 | 154-13-61210 | CASE | 10001- | |
| 33 | 06043-06216 | BEARING | 10001- | |
| 34 | 711-53-11770 | PLATE | 10001- | |
| 35 | 04064-08025 | RING,SNAP | 10001- |
