| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (14X-13-31001) | TORQUE CONVERTER A. | (105545)- | ||
| (14X-13-31000) | TORQUE CONVERTER A. | 69001-(105544) | ||

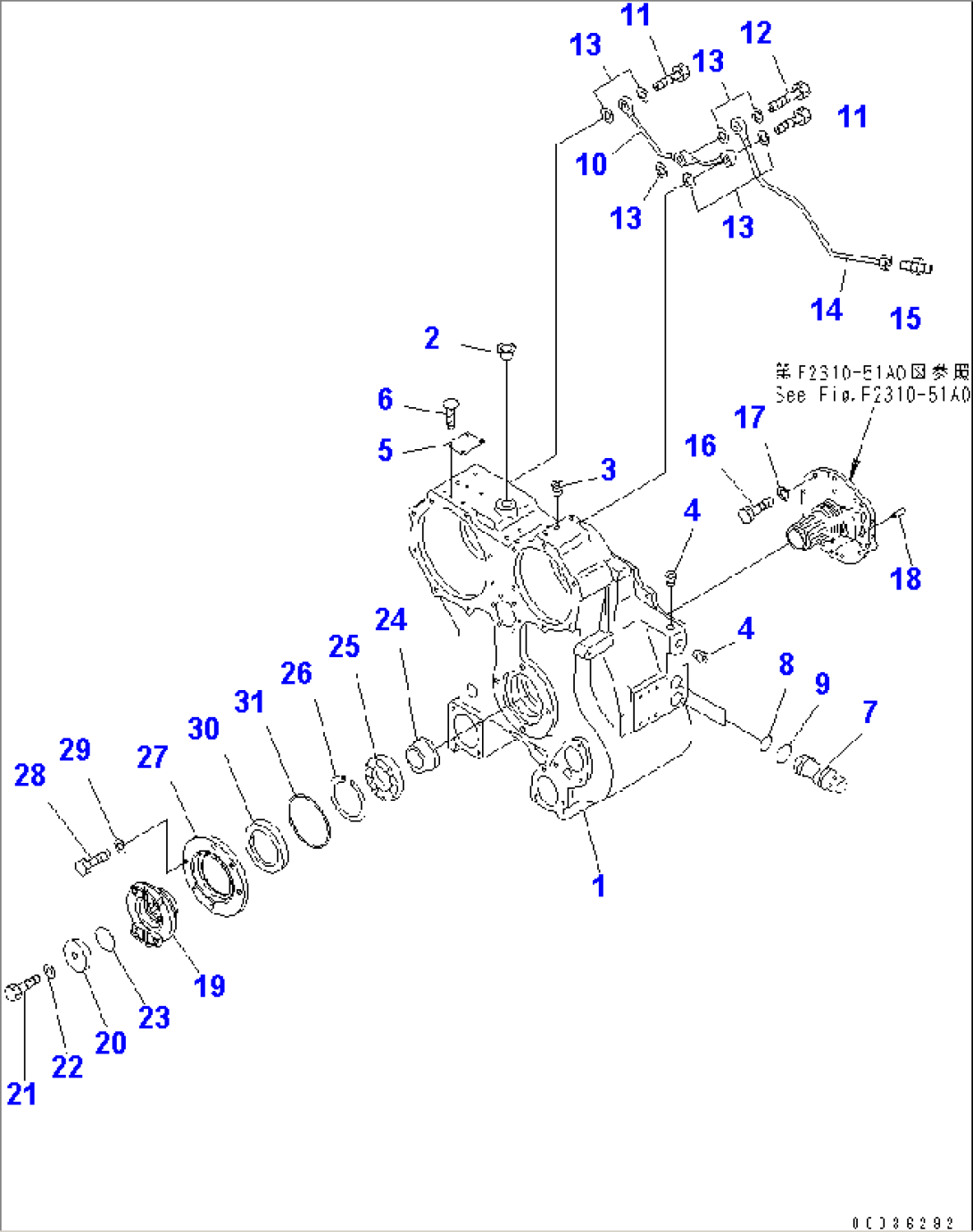

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2310-51A0 TO F2310-55A0. | ||||
| 1 | 14X-13-23110 | CASE | 69001- | |
| 2 | 07048-02216 | PLUG | 69001- | |
| 3 | 07043-70108 | PLUG | 69001- | |
| 4 | 07043-A0617 | PLUG | 69001- | |
| 5 | 09607-05080 | PLATE, NAME | 69001- | |
| 6 | 04418-13060 | SCREW | 69001- | |
| 7 | 14X-13-12550 | SLEEVE | 69001- | |
| 8 | 07000-73030 | O-RING (K-1) | 69001- | |
| 9 | 07000-73032 | O-RING (K-1) | 69001- | |
| 10 | 14X-10-11320 | TUBE | 69001- | |
| 11 | 07206-30812 | BOLT | 69001- | |
| 12 | 14X-10-11330 | JOINT | 69001- | |
| 13 | 07005-01212 | SEAL, WASHER (K-1) | 69001- | |
| 14 | 14X-13-13261 | TUBE | 69001- | |
| 15 | 07213-50813 | CONNECTOR | 69001- | |
| 16 | 01010-81030 | BOLT | 69001- | |
| 17 | 01643-31032 | WASHER | 69001- | |
| 18 | 04020-01228 | PIN | 69001- | |
| 19 | 14X-13-31360 | COUPLING | 69001- | |
| 20 | 22W-15-16270 | HOLDER | 69001- | |
| 21 | 01050-51670 | BOLT | 69001- | |
| 22 | 01643-31645 | WASHER | 69001- | |
| 23 | 07000-75055 | O-RING (K-1) | 69001- | |
| 24 | 14X-13-11370 | SPACER | 69001- | |
| 25 | 14X-13-39320 | BEARING | 69001- | |
| 26 | 04071-00125 | RING | 69001- | |
| 27 | 14X-13-33350 | RETAINER | 69001- | |
| 28 | 01010-81235 | BOLT | 69001- | |
| 29 | 01643-31232 | WASHER | 69001- | |
| 30 | 07012-50110 | SEAL | (105639)- | |
| 30 | 07012-10110 | SEAL | 69001-(105638) | |
| 31 | 07000-75170 | O-RING (K-1) | 69001- |
