| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| 711-28-00015 | TORQUE CONVERTER A. | (2806)- | ||

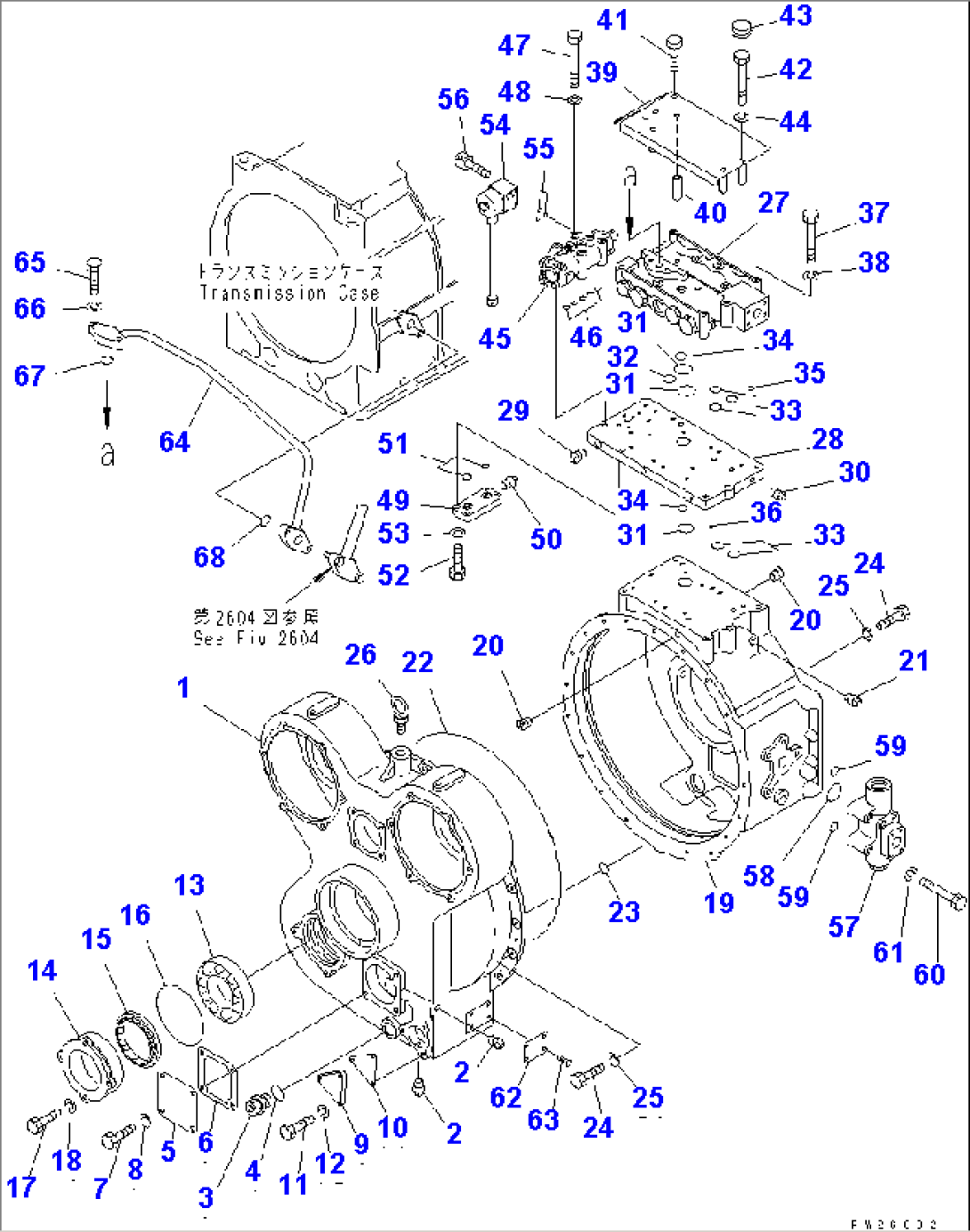

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2231ATO 2245. | ||||
| 711-28-00041 | HOUSING ASS'Y | (2290)- | ||
| 1 | \6\ | HOUSING | (2290)- | |
| 2 | 07042-20415 | PLUG | 1501- | |
| 3 | 07044-13620 | PLUG | 1501- | |
| 4 | 07002-33634 | O-RING (KIT) | 1501- | |
| 5 | 175-13-23220 | COVER | 1501- | |
| 6 | 175-13-23231 | GASKET (KIT) | 1501- | |
| 7 | 01010-51225 | BOLT | 1501- | |
| 8 | 01602-21236 | WASHER,SPRING | 1501- | |
| 9 | 568-13-13160 | PLATE | 1501- | |
| 10 | 568-13-13170 | GASKET (KIT) | 1501- | |
| 11 | 01010-51225 | BOLT | 1501- | |
| 12 | 01602-21236 | WASHER,SPRING | 1501- | |
| 13 | 281-13-31180 | BEARING | 1501- | |
| 14 | 569-13-13330 | RETAINER | 1501- | |
| 15 | 07012-10110 | SEAL,OIL (KIT) | 1501- | |
| 16 | 07000-05150 | O-RING (KIT) | 1501- | |
| 17 | 01010-51030 | BOLT | 1501- | |
| 18 | 01602-21030 | WASHER,SPRING | 1501- | |
| 711-28-00030 | HOUSING ASS'Y | 1501- | ||
| 19 | \6\ | HOUSING | 1501- | |
| 20 | 07043-00617 | PLUG | 1501- | |
| 21 | 07042-20415 | PLUG | 1501- | |
| 22 | 566-13-13341 | O-RING (KIT) | 1501- | |
| 23 | 07000-63032 | O-RING (KIT) | 1501- | |
| 24 | 01010-51440 | BOLT | 1501- | |
| 25 | 01602-21442 | WASHER,SPRING | 1501- | |
| 26 | 04530-02030 | BOLT,EYE | 1501- | |
| 27 | 711-28-00151 | VALVE ASS'Y | (2235)- | |
| 28 | 711-28-33120 | SEAT | (2322)- | |
| 29 | 07042-20211 | PLUG | 1501- | |
| 30 | 07042-20108 | PLUG | 1501- | |
| 31 | 07000-63040 | O-RING (KIT) | 1501- | |
| 32 | 07000-63035 | O-RING (KIT) | 1501- | |
| 33 | 07000-63028 | O-RING (KIT) | 1501- | |
| 34 | 07000-62020 | O-RING (KIT) | 1501- | |
| 35 | 07000-62014 | O-RING (KIT) | (2322)- | |
| 36 | 07000-62018 | O-RING (KIT) | (2322)- | |
| 37 | 01011-51215 | BOLT | (2806)- | |
| 38 | 01602-21236 | WASHER,SPRING | (2806)- | |
| 39 | 711-28-36550 | COVER | (2806)- | |
| 40 | 711-28-36570 | TUBE | (2806)- | |
| 41 | 01010-81016 | BOLT | (2806)- | |
| 42 | 01011-81290 | BOLT | (2806)- | |
| 43 | 711-28-36560 | CAP | (2806)- | |
| 44 | 01602-21236 | WASHER | (2806)- | |
| 45 | (711-28-00060) | VALVE ASS'Y | 1501- | |
| 46 | 07000-62016 | O-RING (KIT) | 1501- | |
| 47 | 01010-51085 | BOLT | 1501- | |
| 48 | 01643-31032 | WASHER | 1501- | |
| 49 | 711-28-16860 | PLATE | 1501- | |
| 50 | 07042-20211 | PLUG | 1501- | |
| 51 | 07000-62016 | O-RING (KIT) | 1501- | |
| 52 | 01010-51040 | BOLT | 1501- | |
| 53 | 01643-31032 | WASHER | 1501- | |
| 54 | 711-20-31311 | VALVE ASS'Y,SOLENOID | 1501- | |
| 55 | 07000-21006 | O-RING (KIT) | 1501- | |
| 56 | 01252-30550 | BOLT | 1501- | |
| 57 | (568-13-00010) | VALVE ASS'Y | 1501- | |
| 58 | 07000-63042 | O-RING (KIT) | 1501- | |
| 59 | 07000-62018 | O-RING (KIT) | 1501- | |
| 60 | 01010-51285 | BOLT | 1501- | |
| 61 | 01602-21236 | WASHER,SPRING | 1501- | |
| 62 | 09607-05080 | PLATE, NAME,(LIMITED SUPPLY) | 1501- | |
| 63 | 04418-13060 | SCREW | 1501- | |
| 64 | 710-10-18310 | TUBE | 1501- | |
| 65 | 01010-51055 | BOLT | 1501- | |
| 66 | 01602-21030 | WASHER,SPRING | 1501- | |
| 67 | 07000-63025 | O-RING (KIT) | 1501- | |
| 68 | 07000-63035 | O-RING (KIT) | 1501- |
