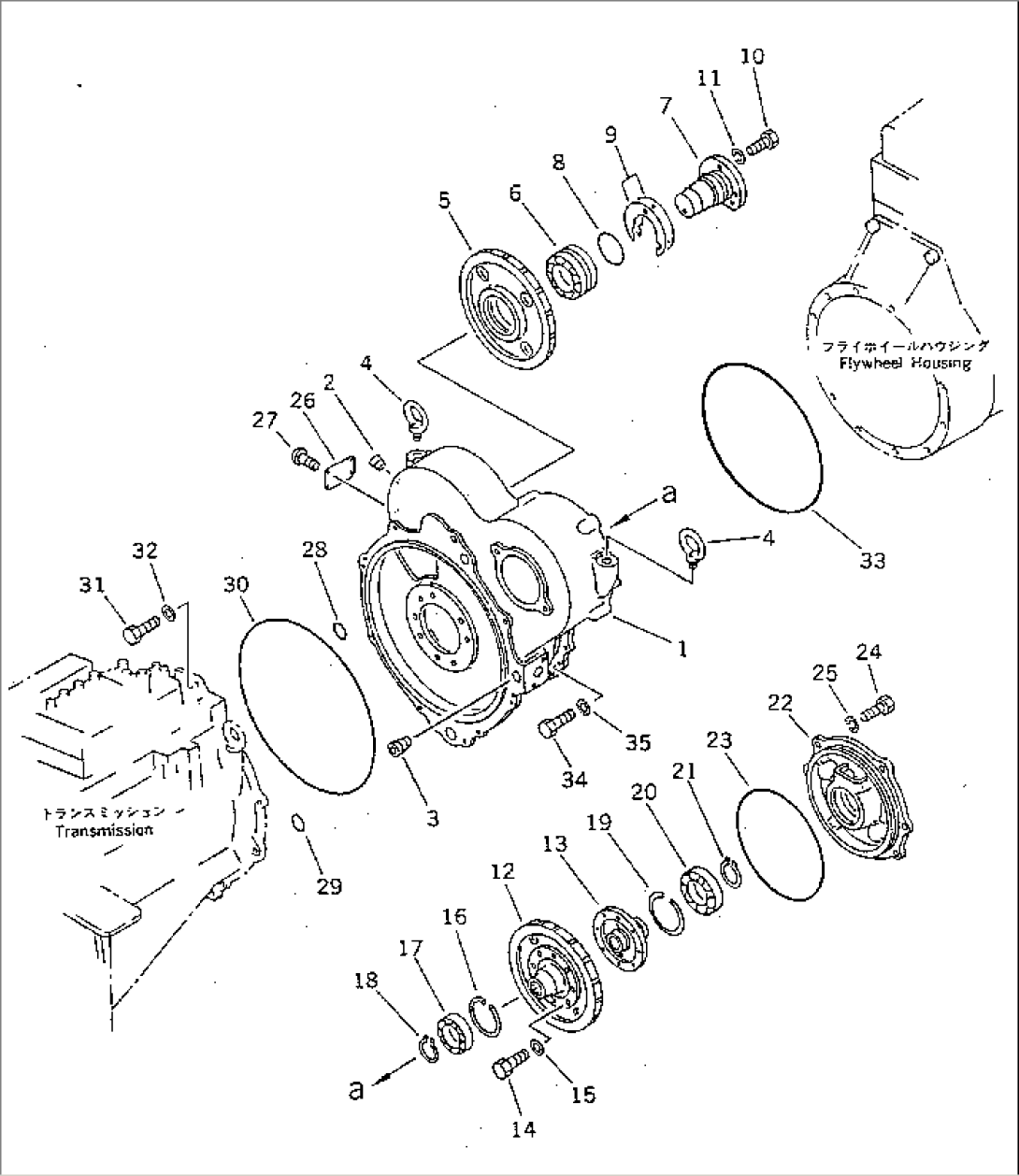

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| 711-49-21002 | TORQUE CONVERTER A. | 20001- | ||
| \0\711-49-21001 | TORQUE CONVERTER A. | 10001-19999 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 AND 2311. | ||||
| 1 | 711-49-13111 | HOUSING | 20001- | |
| 1 | 711-49-13110 | HOUSING | 10001-19999 | |
| 2 | 07043-70108 | PLUG | (4297)-(5049) | |
| 2 | 07043-00108 | PLUG | 10001-(4296) | |
| 3 | 07043-00617 | PLUG | 10001-19999 | |
| 4 | 04530-12030 | BOLT,EYE | 10001- | |
| 5 | 711-49-14211 | GEAR | 10001- | |
| 6 | 711-49-14230 | BEARING,ROLLER | 10001- | |
| 7 | 711-49-14260 | SHAFT | 10001- | |
| 8 | 07000-72070 | O-RING (K1) | (5025)- | |
| 8 | 07000-02070 | O-RING (K1) | 20001-(5024) | |
| 8 | 07000-62070 | O-RING (K1) | 10001-19999 | |
| 9 | 711-49-05010 | SHIM KIT (K1) | 10001- | |
| 9 | \6\ | SHIM, 0.05MM | 10001- | |
| 9 | \6\ | SHIM, 0.1MM | 10001- | |
| 9 | \6\ | SHIM, 0.3MM | 10001- | |
| 10 | 01010-51030 | BOLT | 10001- | |
| 11 | 01602-21030 | WASHER,SPRING | 10001- | |
| 12 | 711-49-14311 | GEAR | 10001- | |
| 13 | 711-49-14361 | BOSS | 10001- | |
| 14 | 01010-61030 | BOLT | 10001- | |
| 15 | 01643-31032 | WASHER | 10001- | |
| 16 | 04065-09030 | RING,SNAP | 10001- | |
| 17 | 711-49-14330 | BEARING | 10001- | |
| 18 | 04064-05020 | RING,SNAP | 10001- | |
| 19 | 04071-00120 | RING,SNAP | 10001- | |
| 20 | 06030-06311 | BEARING | 10001- | |
| 21 | 04064-05520 | RING,SNAP | 10001- | |
| 22 | 711-49-14341 | COVER | 10001- | |
| 23 | 07000-05270 | O-RING (K1) | 20001- | |
| 23 | 07000-65270 | O-RING (K1) | 10001-19999 | |
| 24 | 01010-51235 | BOLT | 10001- | |
| 25 | 01602-21236 | WASHER,SPRING | 10001- | |
| 26 | 09607-05080 | PLATE, NAME,(LIMITED SUPPLY) | 10001- | |
| 27 | 04418-03060 | SCREW | 10001- | |
| 28 | 07000-73035 | O-RING | 10001- | |
| 29 | 07000-73038 | O-RING | 10001- | |
| 30 | 07000-05465 | O-RING | 10001- | |
| 31 | 01010-51235 | BOLT | 10001- | |
| 32 | 01643-31232 | WASHER | 10001- | |
| 33 | 424-13-11110 | O-RING | 10001- | |
| 34 | 01010-31030 | BOLT | 10001- | |
| 35 | 01643-31032 | WASHER | 10001- |
