| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| 566-13-42030 | TORQUE CONVERTER A. | 6001- | ||
| 566-13-41031 | TORQUE CONVERTER A. | 5706-6000 | ||
| 566-13-01150 | TORQUE CONVERTER A. | 5001-5705 | ||

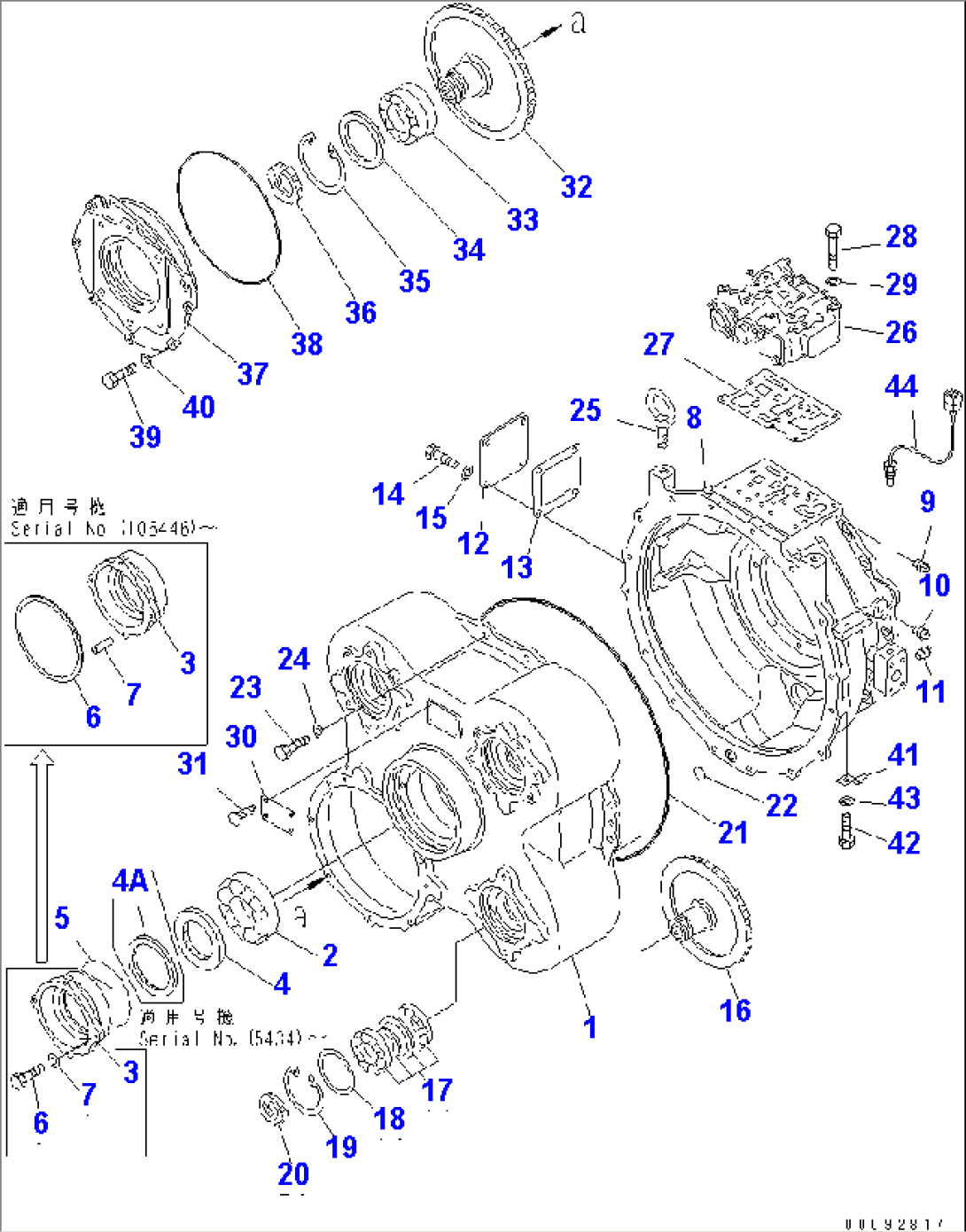

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2235 TO 2245. | ||||
| 1 | 566-13-43130 | HOUSING,FRONT | 5001- | |
| 2 | 711-20-31180 | BEARING | (106581)- | |
| 2 | 06031-00314 | BEARING | 5706-(106580) | |
| 2 | 711-20-31180 | BEARING | 5001-5705 | |
| 3 | 566-13-42140 | RETAINER | (5434)- | |
| 3 | 711-20-33370 | RETAINER | 5001-(5433) | |
| 4 | 07012-50095 | SEAL,OIL (K1) | 5001- | |
| 4A | 425-15-28710 | SEAL (K1) | (5434)- | |
| 5 | 07000-72145 | O-RING (K1) | 5001- | |
| 6 | 04071-00180 | RING | (106446)- | |
| 6 | 07372-21030 | BOLT | 5001-(106445) | |
| 7 | 04020-00820 | PIN | (106446)- | |
| 7 | 01602-21030 | WASHER,SPRING | 5001-(106445) | |
| 566-13-01120 | REAR HOUSING ASS'Y | 5001- | ||
| 8 | \6\ | HOUSING,REAR | 5001- | |
| 9 | 07043-70415 | PLUG | 5001- | |
| 10 | 07043-70617 | PLUG | 5001- | |
| 11 | 07042-80108 | PLUG | 5001- | |
| 12 | 135-13-23220 | COVER | 5001- | |
| 13 | 135-13-23232 | GASKET (K1) | (4230)- | |
| 13 | \0\135-13-23231 | GASKET (K1) | 5001-(4229) | |
| 14 | 01010-81025 | BOLT | 5001- | |
| 15 | 01643-31032 | WASHER | 5001- | |
| 16 | 566-13-44210 | GEAR,DRIVE | 5001- | |
| 17 | 711-35-14230 | BEARING | 5001- | |
| 18 | 711-35-14120 | PLATE | 5001- | |
| 19 | 04065-09530 | RING,SNAP | 5001- | |
| 20 | 01530-04812 | NUT | 5001- | |
| 21 | 281-13-23340 | O-RING (K1) | 5001- | |
| 22 | 07000-73025 | O-RING (K1) | 5001- | |
| 23 | 01010-81235 | BOLT | 5001- | |
| 24 | 01643-31232 | WASHER | 5001- | |
| 25 | 04530-12438 | BOLT,EYE | (106720)- | |
| 25 | 04530-02438 | BOLT,EYE | 5001-(106719) | |
| 26 | (569-13-01110) | VALVE ASS'Y | 5001- | |
| 27 | 566-13-46750 | GASKET (K1) | 5001- | |
| 28 | 01010-81090 | BOLT | 5001- | |
| 29 | 01643-31032 | WASHER | 5001- | |
| 30 | 09607-05080 | PLATE, NAME,(LIMITED SUPPLY) | 5001- | |
| 31 | 04418-13060 | SCREW | 5001- | |
| 32 | 566-13-44310 | GEAR | 5001- | |
| 33 | 566-13-44330 | BEARING | 5001- | |
| 34 | 566-13-44340 | PLATE | 5001- | |
| 35 | 04065-01204 | RING,SNAP | 5001- | |
| 36 | 566-13-44360 | NUT | 5001- | |
| 37 | 566-13-44350 | COVER | 5001- | |
| 38 | 07000-75290 | O-RING | 5001- | |
| 39 | 01010-81035 | BOLT | 5001- | |
| 40 | 01643-51032 | WASHER | 5001- | |
| 41 | 08193-21012 | CLIP | 6001- | |
| 41 | 08053-01512 | CLIP | 5001-6000 | |
| 42 | 01010-81016 | BOLT | 5001- | |
| 43 | 01643-31032 | WASHER | 5001- | |
| 44 | 7861-93-3320 | SENSOR | 6001- | |
| 44 | 7861-92-3320 | SENSOR | 5706-6000 |
