| Item | Part No. | Part Name | Qty | Serial No. |
| (569-15-01011) | TORQFLOW ASS'Y | 2001-2087 | ||
| (\2\569-15-01010) | TORQFLOW ASS'Y | (2001-2016) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2231 TO 2425. | ||||
| 711-35-00055 | TORQUE CONVERTER A. | (1554)- | ||
| 711-35-00054 | TORQUE CONVERTER A. | (1540)-(1553) | ||
| \0\711-35-00053 | TORQUE CONVERTER A. | (1496)-(1539) | ||
| \0\711-35-00052 | TORQUE CONVERTER A. | 2088-(1495) | ||
| \0\711-35-00051 | TORQUE CONVERTER A. | 2001-2087 | ||
| (\2\711-35-00050) | TORQUE CONVERTER A. | (2001-2016) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2231 TO 2241. | ||||

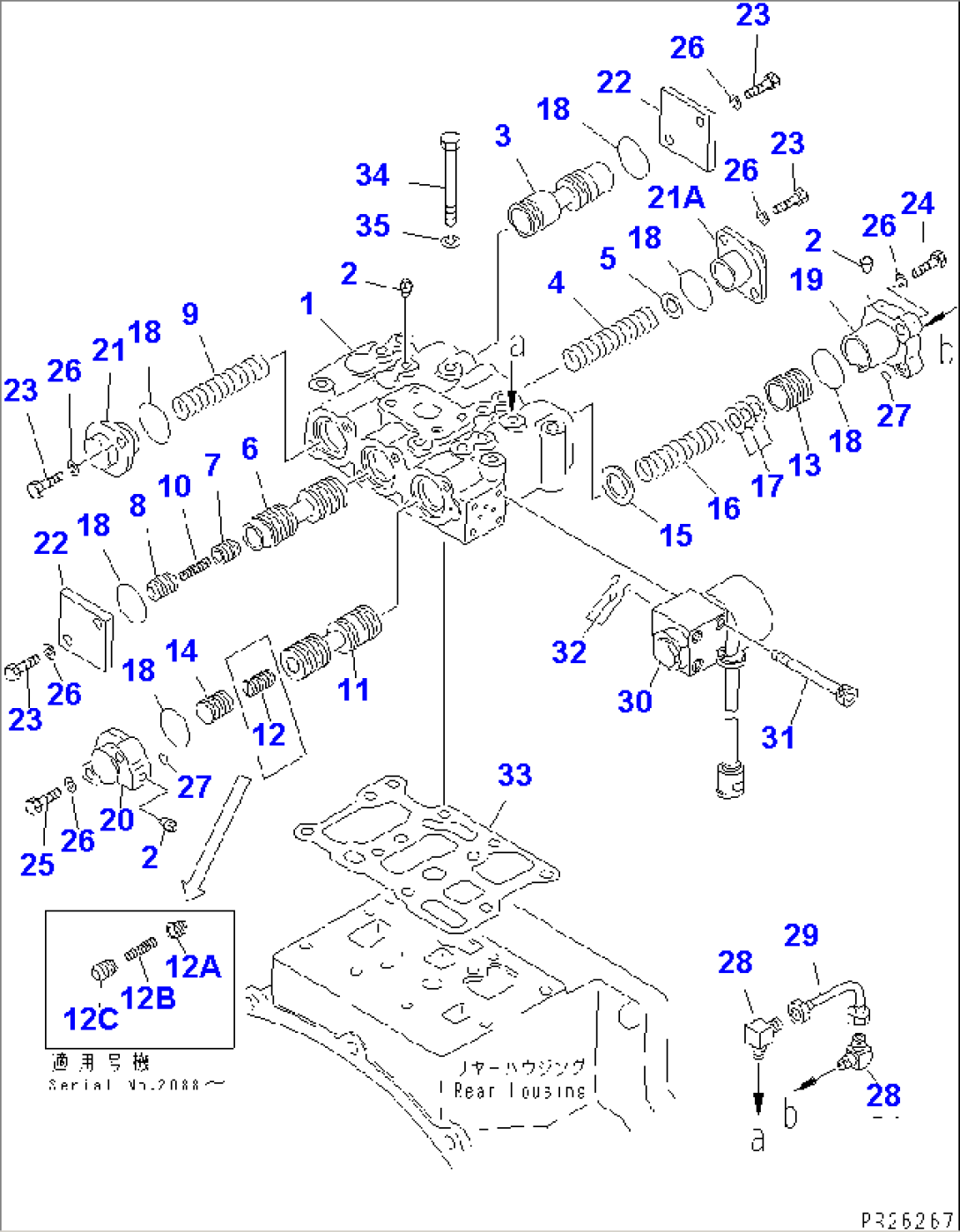

| 1 | 711-35-00303 | VALVE ASS'Y | (1585)- | |
| 711-35-00302 | VALVE ASS'Y | (1496)-(1584) | ||
| \0\711-35-00301 | VALVE ASS'Y | 2088-(1495) | ||
| \0\711-35-00300 | VALVE ASS'Y | 2001-2087 | ||
| 711-35-00310 | BODY ASS'Y | 2001- | ||
| 1 | \6\ | BODY,VALVE | 2001- | |
| 2 | 07042-20108 | PLUG | 2001- | |
| 3 | 711-20-16620 | SPOOL | 2001- | |
| 4 | 711-35-26761 | SPRING | (1496)- | |
| 711-35-26760 | SPRING | 2001-(1495) | ||
| 5 | 125-15-36480 | SHIM¤ 0.5MM | (1496)- | |
| 6 | 711-35-46630 | SPOOL | (1496)- | |
| 711-35-26630 | SPOOL | 2001-(1495) | ||
| 7 | 711-35-46651 | VALVE | (1496)- | |
| 711-28-46650 | PISTON | 2088-(1495) | ||
| 711-35-26650 | VALVE | 2001-2087 | ||
| 8 | 711-35-46660 | VALVE | (1496)- | |
| 711-35-26660 | VALVE | 2001-(1495) | ||
| 9 | 711-20-16760 | SPRING | 2001- | |
| 10 | 711-35-26690 | SPRING | (1496)- | |
| 180-14-25560 | SPRING | 2001-(1495) | ||
| 11 | 711-35-26822 | SPOOL | (1496)- | |
| 711-35-26821 | SPOOL | 2088-(1495) | ||
| 711-35-26820 | SPOOL | 2001-2087 | ||
| 12 | 711-28-16840 | PISTON | 2001-2087 | |
| 12A | 198-15-15760 | VALVE | 2088- | |
| 12B | 198-15-15770 | SPRING¤ (L= 30.0) | 2088- | |
| 12C | 175-15-15550 | VALVE | 2088- | |
| 13 | 711-20-36671 | PISTON | 2088- | |
| 711-20-16671 | PISTON | 2001-2087 | ||
| 14 | 711-40-16840 | PISTON | 2001- | |
| 15 | 711-20-16730 | RING | 2001- | |
| 16 | 711-35-26770 | SPRING | 2088- | |
| 711-20-16770 | SPRING | 2001-2087 | ||
| 17 | 125-15-36480 | SHIM¤ 0.5MM | (1585)- | |
| 18 | 07000-63038 | O-RING (K2) | 2001- | |
| 19 | 711-35-26780 | COVER | 2001- | |
| 20 | 711-40-16760 | COVER | 2001- | |
| 21 | 711-20-16720 | COVER | 2001- | |
| 21A | 711-20-36720 | COVER | (1496)- | |
| 711-20-16720 | COVER | 2001-(1495) | ||
| 22 | 711-20-16740 | PLATE | 2001- | |
| 23 | 01010-51030 | BOLT | 2001- | |
| 24 | 01010-51035 | BOLT | 2001- | |
| 25 | 01010-51045 | BOLT | 2001- | |
| 26 | 01602-21030 | WASHER,SPRING | 2001- | |
| 27 | 07000-62010 | O-RING (K2) | 2001- | |
| 28 | 176-43-41350 | ELBOW | 2001- | |
| 29 | 711-35-26790 | TUBE | 2001- | |
| 30 | 711-20-31311 | VALVE ASS'Y | (1585)- | |
| 711-20-31310 | VALVE ASS'Y | 2001-(1584) | ||
| 31 | 01252-30550 | BOLT | 2001- | |
| 32 | 07000-21006 | O-RING (K2) | 2001- | |
| 33 | 711-35-16751 | GASKET (K2) | 2001- | |
| 34 | 01010-51085 | BOLT | 2001- | |
| 35 | 01602-21030 | WASHER,SPRING | 2001- |
