| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| (566-13-42030) | TORQUE CONVERTER A. | 6001- | ||
| (566-13-41031) | TORQUE CONVERTER A. | 5706-6000 | ||
| (566-13-01150) | TORQUE CONVERTER A. | 5001-5705 | ||

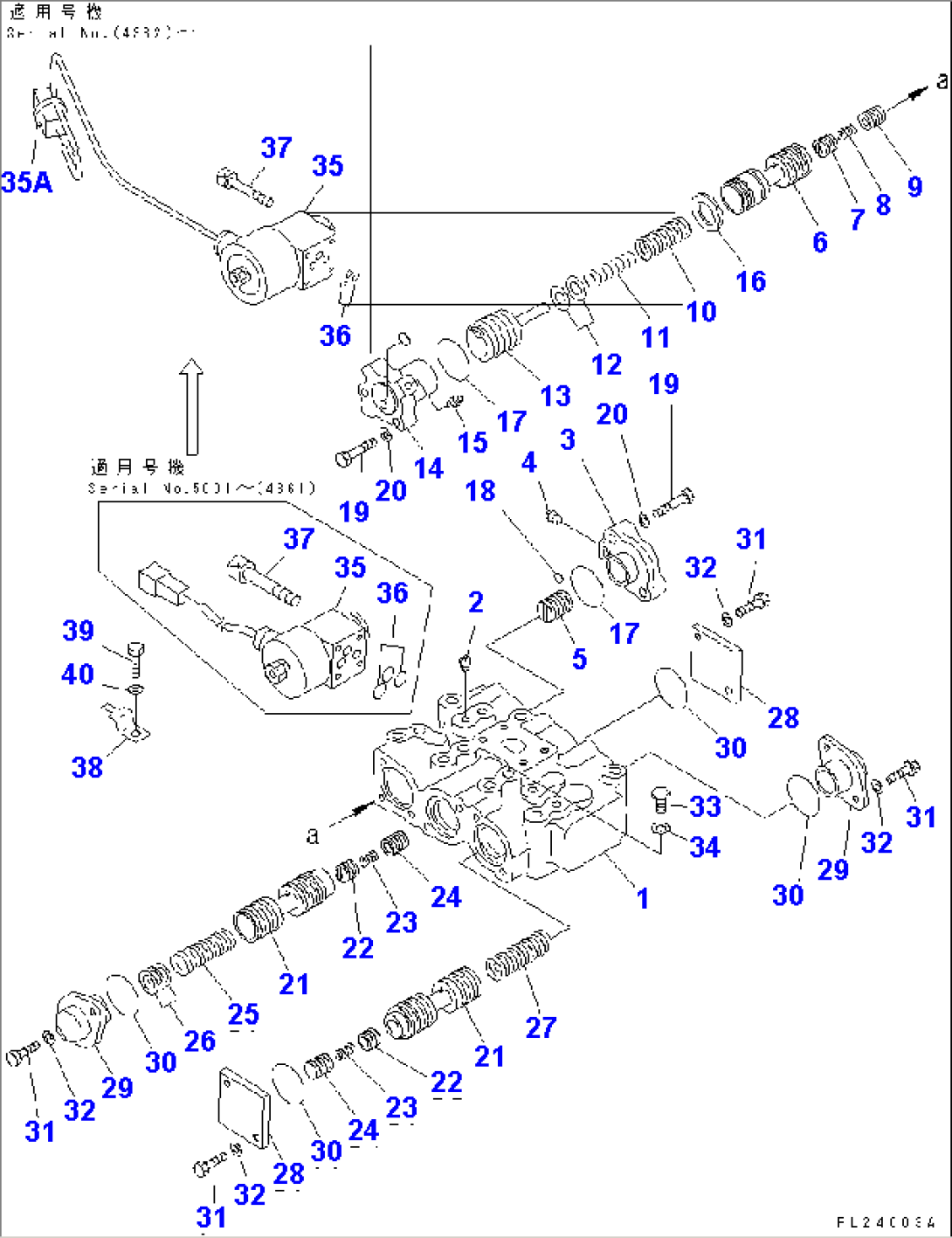

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2235 TO 2245. | ||||
| 566-13-01110 | VALVE ASS'Y | 5001- | ||
| 1 | \6\ | BODY,VALVE | 5001- | |
| 2 | 07042-20108 | PLUG | 5001- | |
| 3 | 711-40-16760 | COVER | 5001- | |
| 4 | 07042-20108 | PLUG | 5001- | |
| 5 | 561-13-46840 | PISTON | 5001- | |
| 6 | 569-13-46820 | SPOOL | 5001- | |
| 7 | 198-15-15760 | VALVE | 5001- | |
| 8 | 198-15-15770 | SPRING, (L= 30.0),(L=30) | 5001- | |
| 9 | 561-13-46850 | PISTON | 5001- | |
| 10 | 569-13-46770 | SPRING,(L=123.5) | 5001- | |
| 11 | 569-13-46790 | SPRING,(L=78.1) | 5001- | |
| 12 | 175-15-56470 | SHIM, 0.50MM | 5001- | |
| 13 | 569-13-46670 | VALVE | 5001- | |
| 14 | 711-35-46780 | COVER | 5001- | |
| 15 | 07042-20108 | PLUG | 5001- | |
| 16 | 711-20-16730 | RING | 5001- | |
| 17 | 07000-63038 | O-RING (K2) | 5001- | |
| 18 | 07000-62010 | O-RING (K2) | 5001- | |
| 19 | 01010-81045 | BOLT | 5001- | |
| 20 | 01643-51032 | WASHER | 5001- | |
| 21 | 711-20-36630 | SPOOL | 5001- | |
| 22 | 711-35-46651 | VALVE | 5001- | |
| 23 | 711-35-26690 | SPRING,(L=26) | 5001- | |
| 24 | 711-35-46660 | VALVE | 5001- | |
| 25 | 561-13-46760 | SPRING,(L=118) | 5001- | |
| 26 | 125-15-36480 | SHIM, 0.5MM | 5001- | |
| 27 | 711-28-46761 | SPRING,(L=144.1) | 5001- | |
| 28 | 711-20-16740 | PLATE | 5001- | |
| 29 | 711-20-16720 | COVER | 5001- | |
| 30 | 07000-63038 | O-RING (K2) | 5001- | |
| 31 | 01010-81030 | BOLT | 5001- | |
| 32 | 01643-51032 | WASHER | 5001- | |
| 33 | 569-13-46620 | PLUG | 5001- | |
| 34 | 07005-01212 | SEAL, WASHER (K2) | 5001- | |
| 35 | 19M-13-21310 | SOLENOID VALVE A. | 6001- | |
| 35 | 569-13-41311 | SOLENOID VALVE A. | (4362)-006000 | |
| 35 | \0\569-13-41310 | SOLENOID VALVE A. | 5001-(4361) | |
| 35A | 08034-00414 | BAND | (4592)- | |
| 35A | 08034-00310 | BAND | (4362)-(4591) | |
| 36 | 07000-71006 | O-RING (K2) | 5001- | |
| 37 | 01252-30650 | BOLT | 5001- | |
| 38 | 08193-21012 | CLIP | 6001- | |
| 38 | 08053-01512 | CLIP | 5001-6000 | |
| 39 | 01010-81016 | BOLT | 5001- | |
| 40 | 01643-31032 | WASHER | 5001- |
