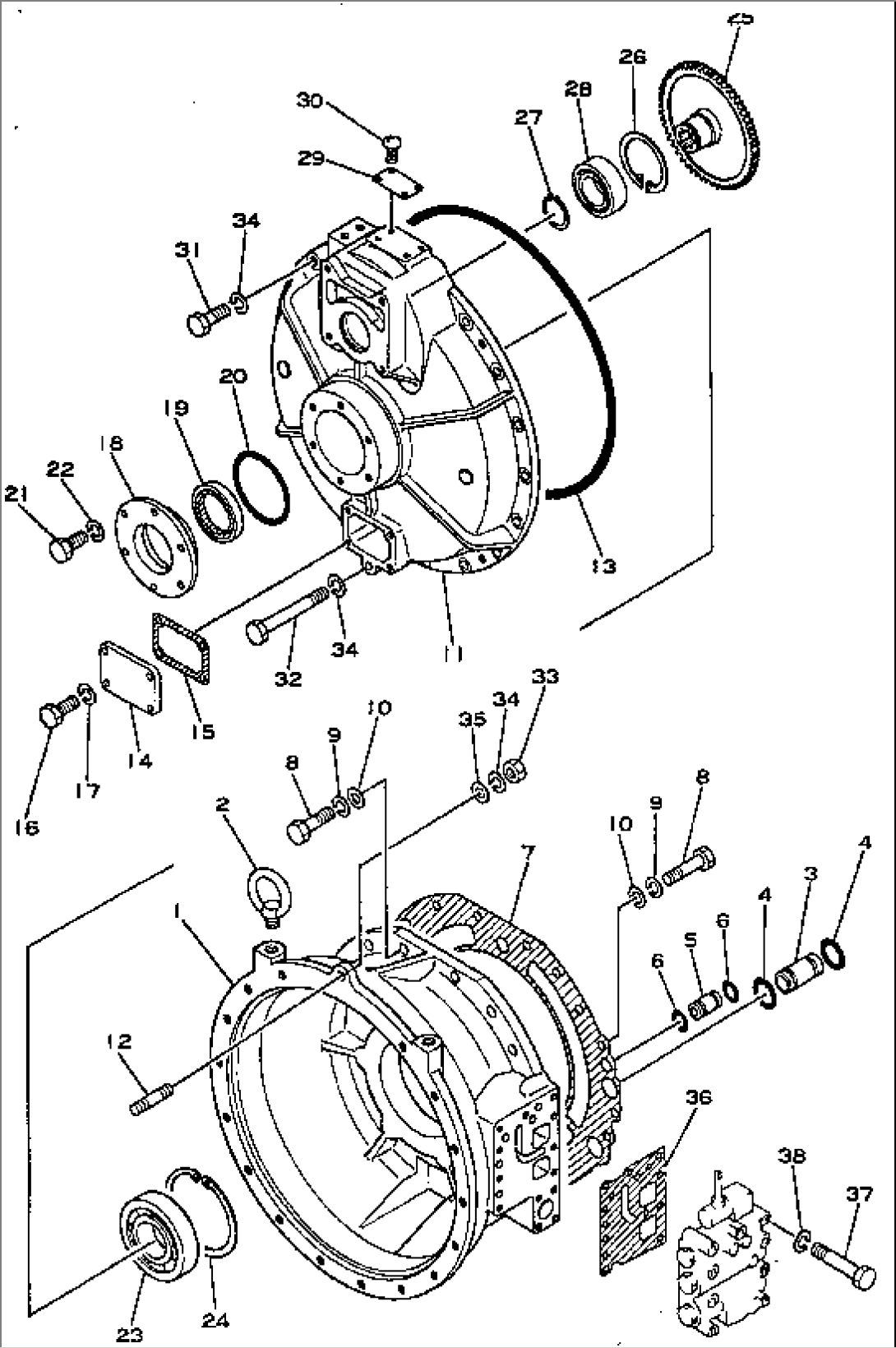

| Item | Part No. | Part Name | Qty | Serial No. |
| (566-13-31001) | TORQUE CONVERTOR A.,(TCS43-2D) | K3001-(2000) | ||
| 1 | 566-13-33111 | HOUSING | K3001-(2000) | |
| 2 | 04530-02030 | BOLT | K1006-(2000) | |
| 3 | 566-13-13291 | SLEEVE | K1006-(2000) | |
| 4 | 07000-03032 | O-RING | K1006-(2000) | |
| 5 | 566-13-13190 | SLEEVE | K1006-(2000) | |
| 6 | 07000-02018 | O-RING | K1006-(2000) | |
| 7 | 566-13-13212 | GASKET | K3001-(2000) | |
| 8 | 01010-31260 | BOLT | K1006-(2000) | |
| 9 | 01602-01236 | WASHER | K1006-(2000) | |
| 10 | 01641-01223 | WASHER | K1006-(2000) | |
| 11 | 566-13-13123 | HOUSING | K1162-(2000) | |
| 12 | 01144-31235 | STUD | K1006-(2000) | |
| 13 | 566-13-13341 | O-RING | K1006-(2000) | |
| 14 | 566-13-13222 | COVER | K1162-(2000) | |
| 15 | 566-13-13231 | GASKET | K1006-(2000) | |
| 16 | 01010-31030 | BOLT | K1162-(2000) | |
| 17 | 01602-01030 | WASHER | K1006-(2000) | |
| 18 | 566-13-13371 | RETAINER | K1162-(2000) | |
| 19 | 566-13-13310 | SEAL | K1006-(2000) | |
| 20 | 07000-02125 | O-RING | K1006-(2000) | |
| 21 | 01010-31025 | BOLT | K1006-(2000) | |
| 22 | 01602-01030 | WASHER | K1006-(2000) | |
| 23 | 566-13-13360 | BEARING | K1038-(2000) | |
| 24 | 04071-00160 | RING | K1006-(2000) | |
| 25 | 566-13-14111 | GEAR | K1006-(2000) | |
| 26 | 04065-01030 | RING | K1006-(2000) | |
| 27 | 04064-05520 | RING | K1006-(2000) | |
| 28 | 06030-05211 | BEARING | K1006-(2000) | |
| 29 | 09607-05080 | PLATE, NAME | K1006-(2000) | |
| 30 | 04418-03060 | SCREW | K1006-(2000) | |
| 31 | 01010-31240 | BOLT | K1006-(2000) | |
| 32 | 566-13-13380 | BOLT | K1006-(2000) | |
| 33 | 01580-31210 | NUT | K1006-(2000) | |
| 34 | 01602-01236 | WASHER | K1006-(2000) | |
| 35 | 01641-01223 | WASHER | K1162-(2000) | |
| 36 | 566-13-36740 | GASKET | K3001-(2000) | |
| 37 | 01010-31090 | BOLT | K1006-(2000) | |
| 38 | 01602-01030 | WASHER | K1006-(2000) |
