| Item | Part No. | Part Name | Qty | Serial No. |

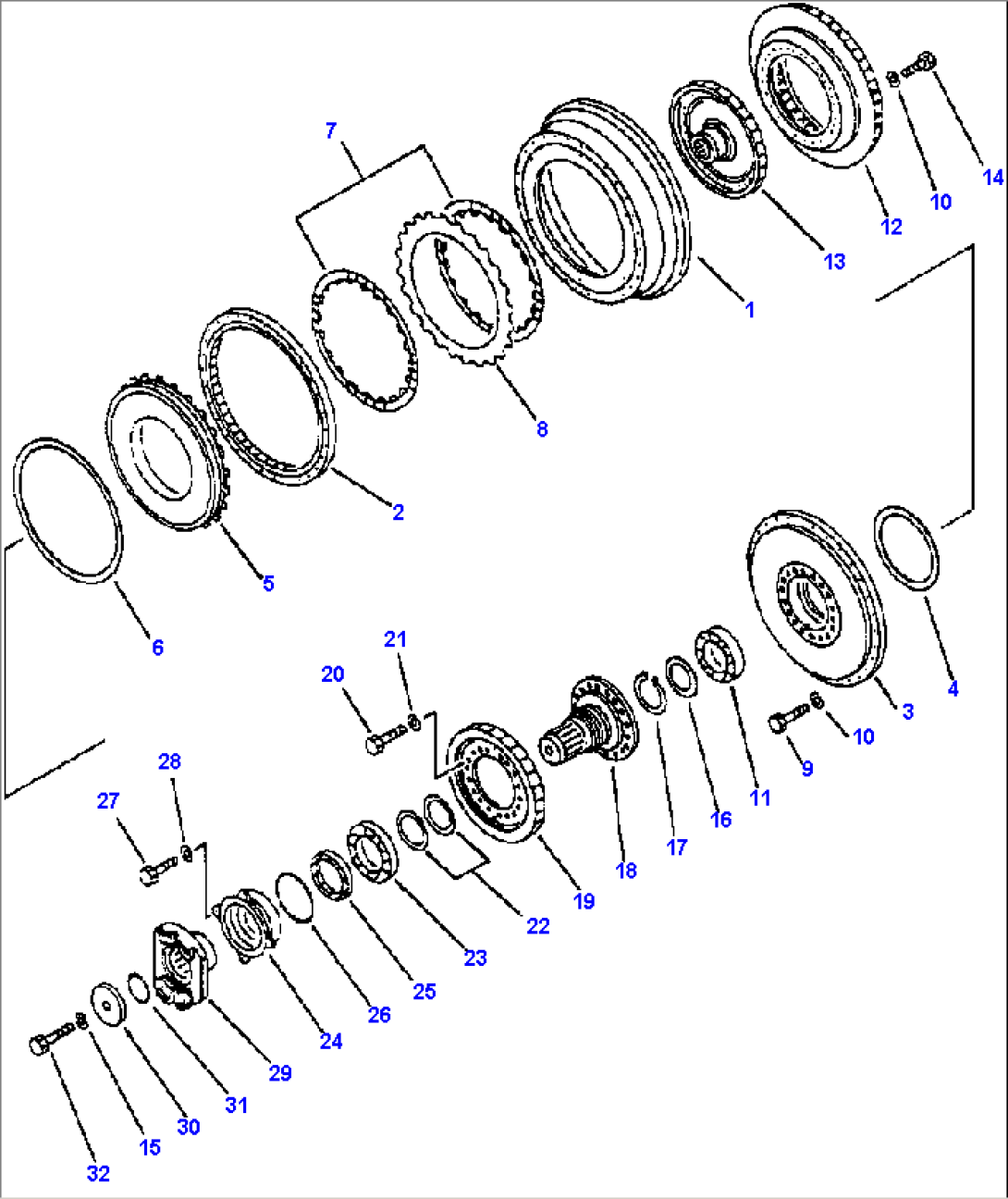

| 0 | 561-13-00010 | TORQUE CONVERTER ASSEMBLY | ||
| 1 | 711-28-41211 | CASE | ||
| 2 | 569-13-17171 | GEAR | ||
| 3 | 711-28-47120 | HOUSING | ||
| 4 | 281-13-17150 | RING, SEAL | ||
| 5 | 711-28-47211 | PISTON | ||
| 6 | 281-13-17250 | RING, SEAL | ||
| 7 | 195-15-32710 | DISC | ||
| 8 | 281-15-12720 | PLATE | ||
| 9 | 01010-61255 | BOLT | ||
| 10 | 01643-31232 | WASHER | ||
| 11 | 711-20-11550 | BEARING | ||
| 12 | 561-13-41520 | TURBINE | ||
| 13 | 711-28-41532 | BOSS | ||
| 14 | 01010-61230 | BOLT | ||
| 15 | 01643-32060 | WASHER | ||
| 16 | 568-13-11770 | PLATE | ||
| 17 | 04064-08530 | RING, SNAP | ||
| 18 | 711-28-41351 | SHAFT | ||
| 19 | 711-28-41341 | GEAR | ||
| 20 | 01010-61655 | BOLT | ||
| 21 | 01643-31645 | WASHER | ||
| 22 | 07018-21104 | RING, SEAL | ||
| 23 | 06032-00218 | BEARING | ||
| 24 | 711-28-43370 | RETAINER | ||
| 25 | 07012-10110 | SEAL, DUST (1) | ||
| 26 | 07000-05150 | O-RING (1) | ||
| 27 | 01010-51025 | BOLT | ||
| 28 | 01643-31032 | WASHER | ||
| 29 | 711-28-41360 | FLANGE | ||
| 30 | 711-28-31370 | HOLDER | ||
| 31 | 07000-65075 | O-RING (1) | ||
| 32 | 01050-62090 | BOLT | ||
| 32 | 561-13-05020 | NOTE (1) INCLUDED IN 561-13-05020 TORQUE CONVERTER KIT. |
