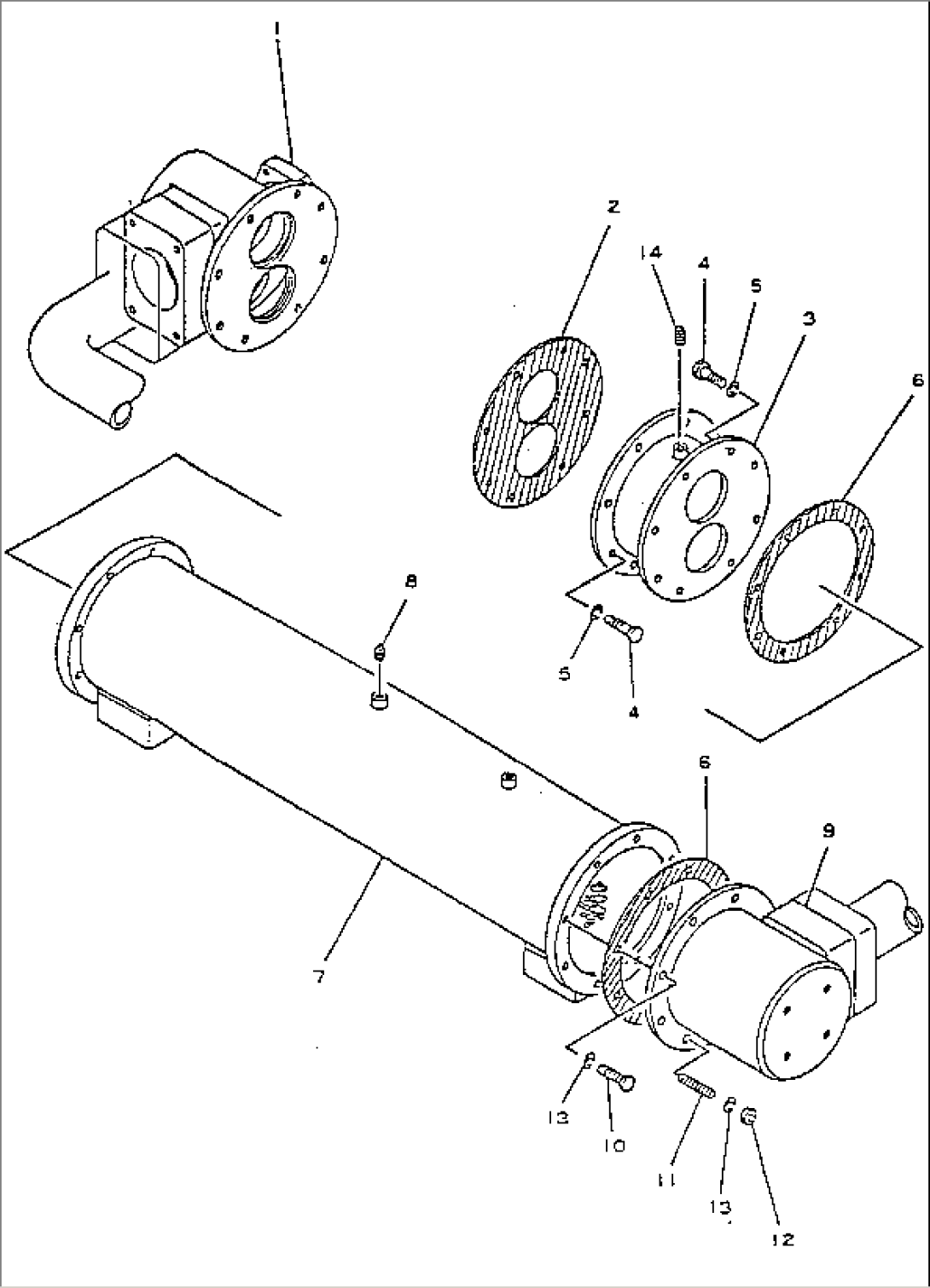

| Item | Part No. | Part Name | Qty | Serial No. |
| 562-03-13301 | COOLER ASS'Y,TORQUE CONVERTER | 1002- | ||
| 1 | 569-03-13112 | COVER | 1002- | |
| 2 | 569-03-13120 | GASKET | 1002- | |
| 3 | 569-03-13131 | COVER | 1002- | |
| 4 | 01010-51030 | BOLT | 1002- | |
| 5 | 01602-21030 | WASHER | 1002- | |
| 6 | 569-03-13140 | GASKET | 1002- | |
| 7 | 569-03-13151 | ELEMENT | 1002- | |
| 8 | 07042-20108 | PLUG | 1002- | |
| 9 | 569-03-13161 | COVER | 1002- | |
| 10 | 01010-51030 | BOLT | 1002- | |
| 11 | 01124-31030 | STUD | 1002- | |
| 12 | 01580-11008 | NUT | 1002- | |
| 13 | 01602-21030 | WASHER | 1002- | |
| 14 | 07042-20211 | PLUG | 1002- |
