| Item | Part No. | Part Name | Qty | Serial No. |

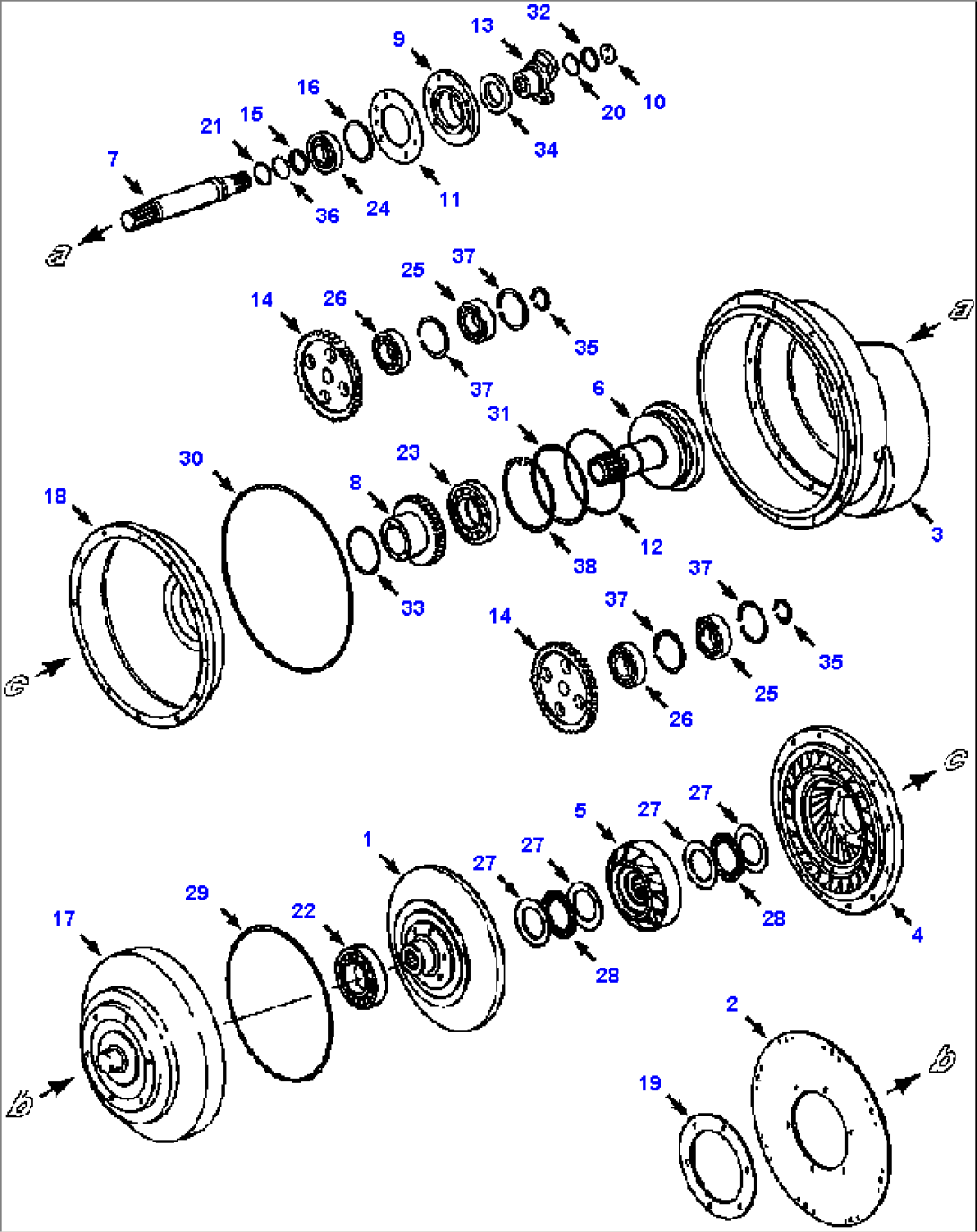

| 1311 098 H91 | CONVERTER ASSY, TORQUE | |||
| 1 | 1311 155 H1 | TURBINE | ||
| 2 | 1311 156 H1 | DISC, COUPLING | ||
| 3 | 1311 154 H1 | HOUSING, ONE PIECE | ||
| 4 | 1311 158 H1 | IMPELLER | ||
| 1311 226 H1 | BOLT, HEX | |||
| 1311 225 H1 | WASHER, FLAT | |||
| 5 | 1311 157 H1 | STATOR | ||
| 6 | 1311 159 H1 | HUB, STATOR | ||
| 30 022 R1 | BOLT, HEX - M10x35 | |||
| 933 965 R1 | WASHER, LOCK - M10 | |||
| 7 | 1311 160 H1 | SHAFT, OUTPUT | ||
| 8 | 1311 161 H1 | GEAR, DRIVE | ||
| 9 | 1311 162 H1 | COVER, HUB | ||
| 30 003 R1 | BOLT, HEX - M8x25 | |||
| 01010-80825 | BOLT, HEX - M8x25 | |||
| 120 214 | WASHER, LOCK - 5/16 | |||
| 10 | 1311 163 H1 | RETAINER, YOKE | ||
| 30 002 R1 | BOLT, HEX - M8x20 | |||
| 01010-80820 | BOLT, HEX - M8x20 | |||
| 120 214 | WASHER, LOCK - 5/16 | |||
| 11 | 1311 164 H1 | GASKET, RETAINER | ||
| 12 | 1311 165 H1 | RING, SEAL | ||
| 13 | 1311 166 H1 | YOKE, OUTPUT | ||
| 14 | 1311 167 H1 | GEAR, PUMP DRIVE | ||
| 15 | 1311 168 H1 | RING, RETAINING | ||
| 16 | 1311 169 H1 | SHIM, COVER | ||
| 17 | 1311 170 H1 | HOUSING, DRIVE | ||
| 30 005 R1 | BOLT, HEX - M8x35 | |||
| 01010-80835 | BOLT, HEX - M8x35 | |||
| 120 214 | WASHER, LOCK - 5/16 | |||
| 18 | 1311 171 H1 | ENCLOSURE, INTERNAL | ||
| 30 002 R1 | BOLT, HEX - M8x20 | |||
| 01010-80820 | BOLT, HEX - M8x20 | |||
| 120 393 | WASHER, FLAT - 5/16 | |||
| 19 | 1311 172 H1 | PLATE, LOCK | ||
| 30 019 R1 | BOLT, HEX - M10x20 | |||
| 20 | 1311 173 H1 | RING, THRUST | ||
| 21 | 1311 174 H1 | RING, SEAL | ||
| 22 | ST 265 | BEARING, BALL | ||
| 23 | 205 368 R91 | BEARING, BALL | ||
| 24 | ST 235 | BEARING, BALL | ||
| 25 | ST 205 A | BEARING, BALL | ||
| 26 | 1311 237 H1 | BEARING, ROLLER | ||
| 1311 236 H1 | BEARING, THRUST ROLLER | |||
| 27 | (NSS) | WASHER, THRUST | ||
| 28 | (NSS) | BEARING, THRUST | ||
| 29 | 1311 235 H1 | RING, SEAL | ||
| 30 | 1311 234 H1 | RING, SEAL | ||
| 31 | 07000-A2125 | RING, SEAL | ||
| 32 | 1311 233 H1 | RING, SEAL | ||
| 33 | 1311 232 H1 | SEAL, OIL | ||
| 34 | 1311 231 H1 | SEAL, OIL | ||
| 35 | 933 029 R1 | RING, RETAINING | ||
| 35 | 04064-03515 | RING, RETAINING | ||
| 36 | 933 075 R1 | RING, RETAINING | ||
| 36 | 04064-04018 | RING, RETAINING | ||
| 37 | 933 076 R1 | RING, RETAINING | ||
| 37 | 04064-07225 | RING, RETAINING | ||
| 38 | 933 077 R1 | RING, RETAINING | ||
| 38 | 04064-09030 | RING, RETAINING | ||
| F1 - OPTIONAL WITH TWO PIECE HOUSING CONVERTER 1243 839 H91. | ||||
