| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||

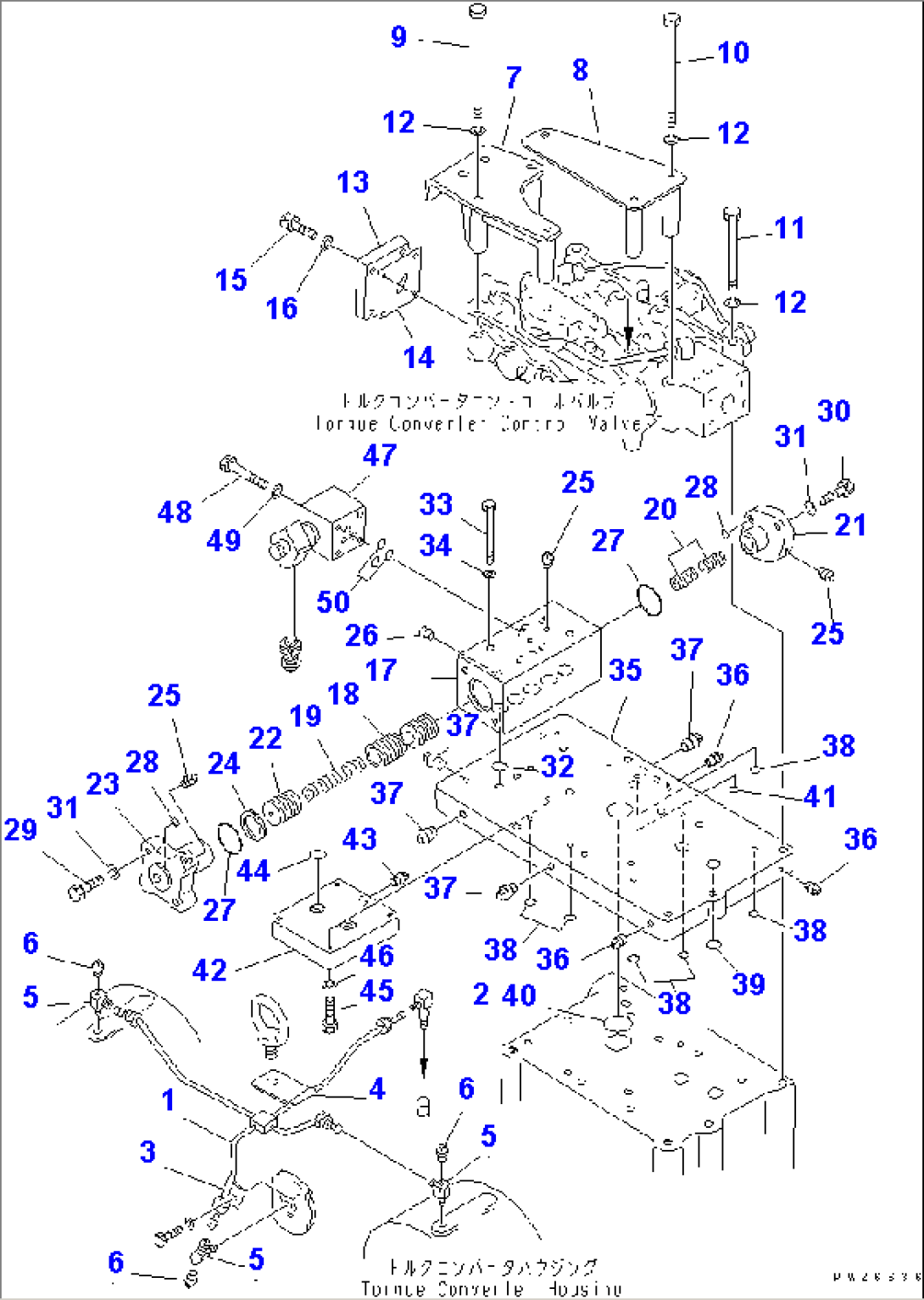

| (711-28-11000) | TORQUE CONVERTER A.,(TCA50-7A) | 1115- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.222A TO 234A. | ||||
| 1 | 711-28-16870 | TUBE | 1115- | |
| 2 | 569-13-16820 | ELBOW | 1115- | |
| 3 | 569-13-16870 | CLIP | 1115- | |
| 4 | 569-13-16830 | CLIP | 1115- | |
| 5 | 569-13-16860 | ELBOW | 1115- | |
| 6 | 07042-20108 | PLUG | 1115- | |
| 7 | 568-13-16552 | COVER | 1115- | |
| 8 | 569-13-16550 | COVER | 1115- | |
| 9 | 01011-81290 | BOLT | 1115- | |
| 10 | 711-28-16560 | BOLT | 1115- | |
| 11 | 01011-81215 | BOLT | 1115- | |
| 12 | 01602-21236 | WASHER | 1115- | |
| 13 | 281-13-16850 | COVER | 1115- | |
| 14 | 281-13-16861 | GASKET (KIT) | 1115- | |
| 15 | 01252-30516 | BOLT | 1115- | |
| 16 | 01601-20513 | WASHER | 1115- | |
| (711-28-36800) | VALVE ASS'Y,SOLENOID | (1460)- | ||
| 711-28-16800 | VALVE ASS'Y,SOLENOID | 1101-(1459) | ||
| 17 | 711-28-16810 | BODY | 1115-(1459) | |
| 18 | 711-28-16821 | SPOOL | 1115-(1459) | |
| 19 | 711-28-16830 | SPRING | 1115-(1459) | |
| 20 | 711-28-16840 | PISTON | 1115-(1459) | |
| 21 | 711-28-16850 | COVER | 1115-(1459) | |
| 22 | 711-20-16670 | PISTON | 1115-(1459) | |
| 23 | 711-20-16780 | COVER | 1115-(1459) | |
| 24 | 711-20-16730 | RING | 1115-(1459) | |
| 25 | 07042-20108 | PLUG | 1115-(1459) | |
| 26 | 07043-00108 | PLUG | 1115-(1459) | |
| 27 | 07000-63038 | O-RING (KIT) | 1115-(1459) | |
| 28 | 07000-62010 | O-RING (KIT) | 1115-(1459) | |
| 29 | 01010-81035 | BOLT | 1115-(1459) | |
| 30 | 01010-81045 | BOLT | 1115-(1459) | |
| 31 | 01602-21030 | WASHER | 1115-(1459) | |
| 32 | 07000-72016 | O-RING (KIT) | 1115- | |
| 33 | 01010-81085 | BOLT | 1115- | |
| 34 | 01643-31032 | WASHER | 1115- | |
| 35 | 711-28-33120 | SEAT | 1115- | |
| 36 | 07042-20108 | PLUG | 1115- | |
| 37 | 07042-20211 | PLUG | 1115- | |
| 38 | 07000-72018 | O-RING (KIT) | 1115- | |
| 39 | 07000-73028 | O-RING (KIT) | 1115- | |
| 40 | 07000-73040 | O-RING (KIT) | 1115- | |
| 41 | 07000-72020 | O-RING (KIT) | 1115- | |
| 42 | 711-28-16860 | PLATE | 1115- | |
| 43 | 07042-20211 | PLUG | 1115- | |
| 44 | 07000-72016 | O-RING (KIT) | 1115- | |
| 45 | 01010-81040 | BOLT | 1115- | |
| 46 | 01643-31032 | WASHER | 1115- | |
| 47 | 711-20-11310 | VALVE,SOLENOID | 1115- | |
| 48 | 01252-30550 | BOLT | 1115- | |
| 49 | 01601-20513 | WASHER | 1115- | |
| 50 | 07000-71006 | O-RING (KIT) | 1115- |
