| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (14X-13-21002) | TORQUE CONVERTER A. | 4995- | ||
| (14X-13-21001) | TORQUE CONVERTER A. | 4557-4994 | ||
| (14X-13-21000) | TORQUE CONVERTER A. | 4001-4556 | ||
| (14X-13-00110) | TORQUE CONVERTER A. | 3034-4000 | ||

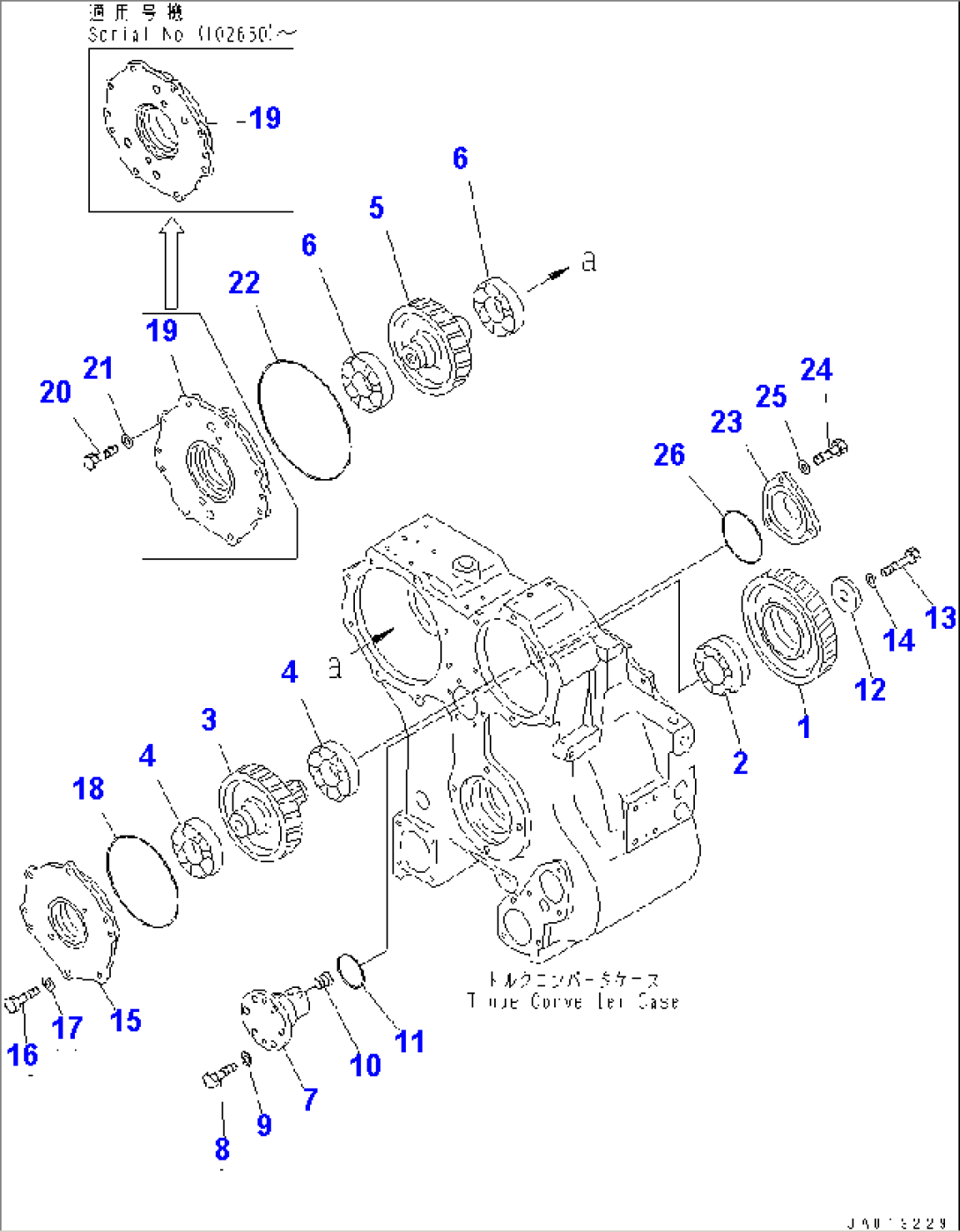

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2310-51A0 TO F2310-55A0. | ||||
| 1 | 134-13-64220 | GEAR | (105351)- | |
| 1 | 14X-13-14220 | GEAR | 3034-(105350) | |
| 2 | 711-49-14230 | BEARING | 3034- | |
| 3 | 14X-13-14321 | GEAR | 3034- | |
| 4 | 06000-06311 | BEARING | 3034- | |
| 5 | 14X-13-14421 | GEAR | 3034- | |
| 6 | 06000-06311 | BEARING | 3034- | |
| 7 | 14X-13-14241 | SHAFT | 3034- | |
| 8 | 01010-81235 | BOLT | 3034- | |
| 9 | 01643-31232 | WASHER | 3034- | |
| 10 | 07043-70211 | PLUG | 3034- | |
| 11 | 07000-72070 | O-RING (K1) | 3034- | |
| 12 | 144-10-12180 | HOLDER | 3034- | |
| 13 | 01010-61460 | BOLT | 3034- | |
| 14 | 01643-31445 | WASHER | 3034- | |
| 15 | 14X-13-14340 | COVER | 3034- | |
| 16 | 01010-81235 | BOLT | 3034- | |
| 17 | 01643-31232 | WASHER | 3034- | |
| 18 | 07000-75210 | O-RING (K1) | 3034- | |
| 19 | 17M-13-44350 | COVER | (102650)- | |
| 19 | 14X-13-14441 | COVER | 3034-(102649) | |
| 20 | 01010-81235 | BOLT | 3034- | |
| 21 | 01643-31232 | WASHER | 3034- | |
| 22 | 07000-75260 | O-RING (K1) | 3034- | |
| 23 | 14X-13-14351 | COVER | 3034- | |
| 24 | 01010-81235 | BOLT | 3034- | |
| 25 | 01643-31232 | WASHER | 3034- | |
| 26 | 07000-72115 | O-RING (K1) | 3034- |
