| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||

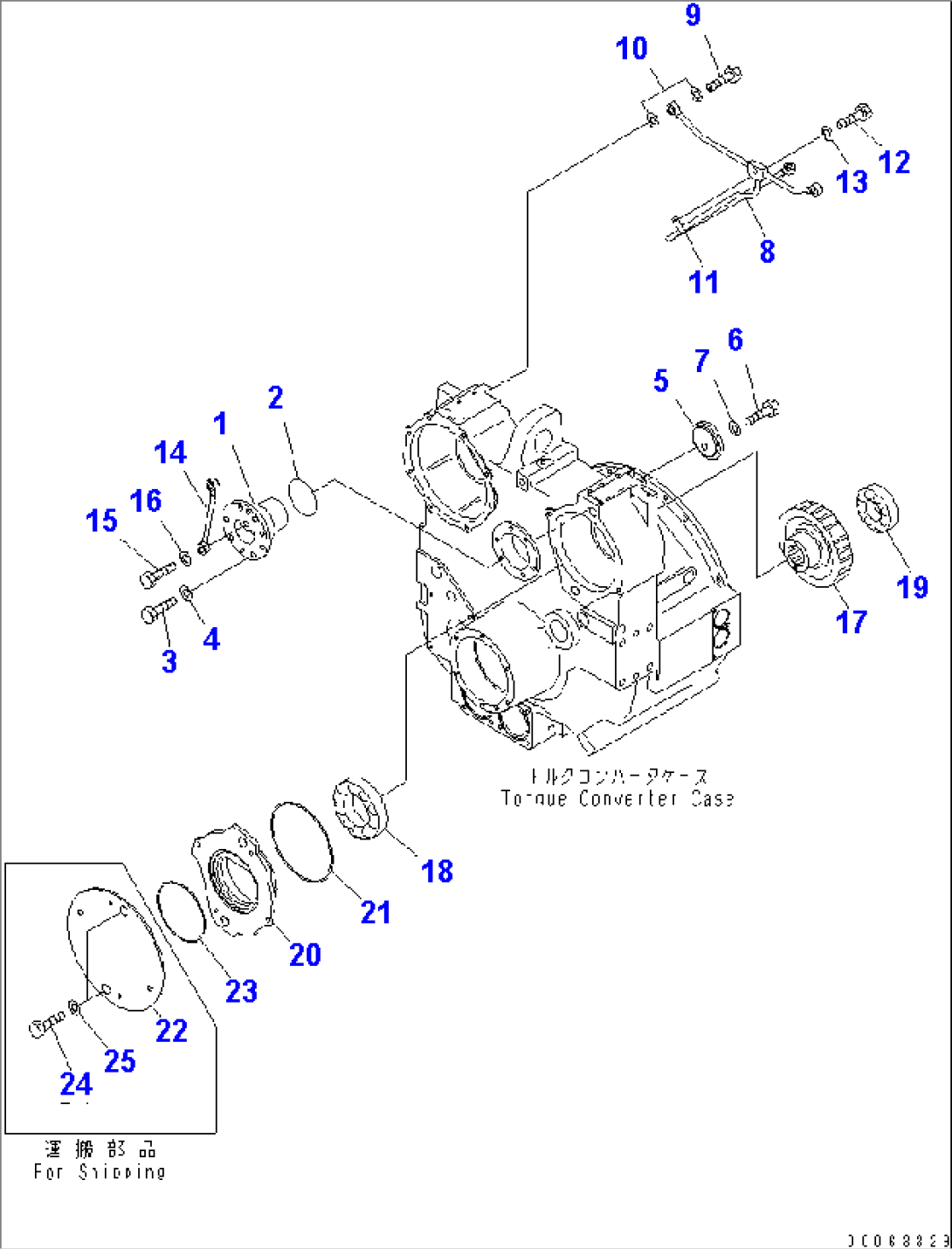

| (17M-13-51040) | CONVERTER ASS'Y,LOCK-UP | 25001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2310-51A2 TO F2310-58A2. | ||||
| 1 | 17M-13-44240 | SHAFT | 25001- | |
| 2 | 07000-72095 | O-RING (K1) | 25001- | |
| 3 | 01010-81235 | BOLT | 25001- | |
| 4 | 01643-31232 | WASHER | 25001- | |
| 5 | 17A-15-18350 | HOLDER | 25001- | |
| 6 | 01010-61645 | BOLT | 25001- | |
| 7 | 01643-31645 | WASHER | 25001- | |
| 8 | 17M-13-46311 | TUBE | (102939)- | |
| 8 | 17M-13-46310 | TUBE | 25001-(102938) | |
| 9 | 07206-31216 | JOINT | 25001- | |
| 10 | 07005-01612 | SEAL, WASHER (K1) | 25001- | |
| 11 | 562-13-16860 | CLIP | 25001- | |
| 12 | 01010-81220 | BOLT | 25001- | |
| 13 | 01643-31232 | WASHER | 25001- | |
| 14 | 17M-13-46390 | TUBE | (102939)- | |
| 14 | 17A-13-26910 | TUBE | 25001-(102938) | |
| 15 | 07206-31216 | JOINT | 25001- | |
| 16 | 07005-01612 | SEAL, WASHER (K1) | 25001- | |
| 17 | 17M-13-42120 | GEAR | 25001- | |
| 18 | 06030-06218 | BEARING | 25001- | |
| 19 | 06333-00311 | BEARING | 25001- | |
| 20 | 154-13-64480 | COVER | 25001- | |
| 21 | 07000-75210 | O-RING (K1) | 25001- | |
| 22 | 17M-13-54490 | COVER | 25001- | |
| 23 | 07000-75165 | O-RING (K1) | 25001- | |
| 24 | 01010-62460 | BOLT | 25001- | |
| 25 | 01643-32460 | WASHER | 25001- |
