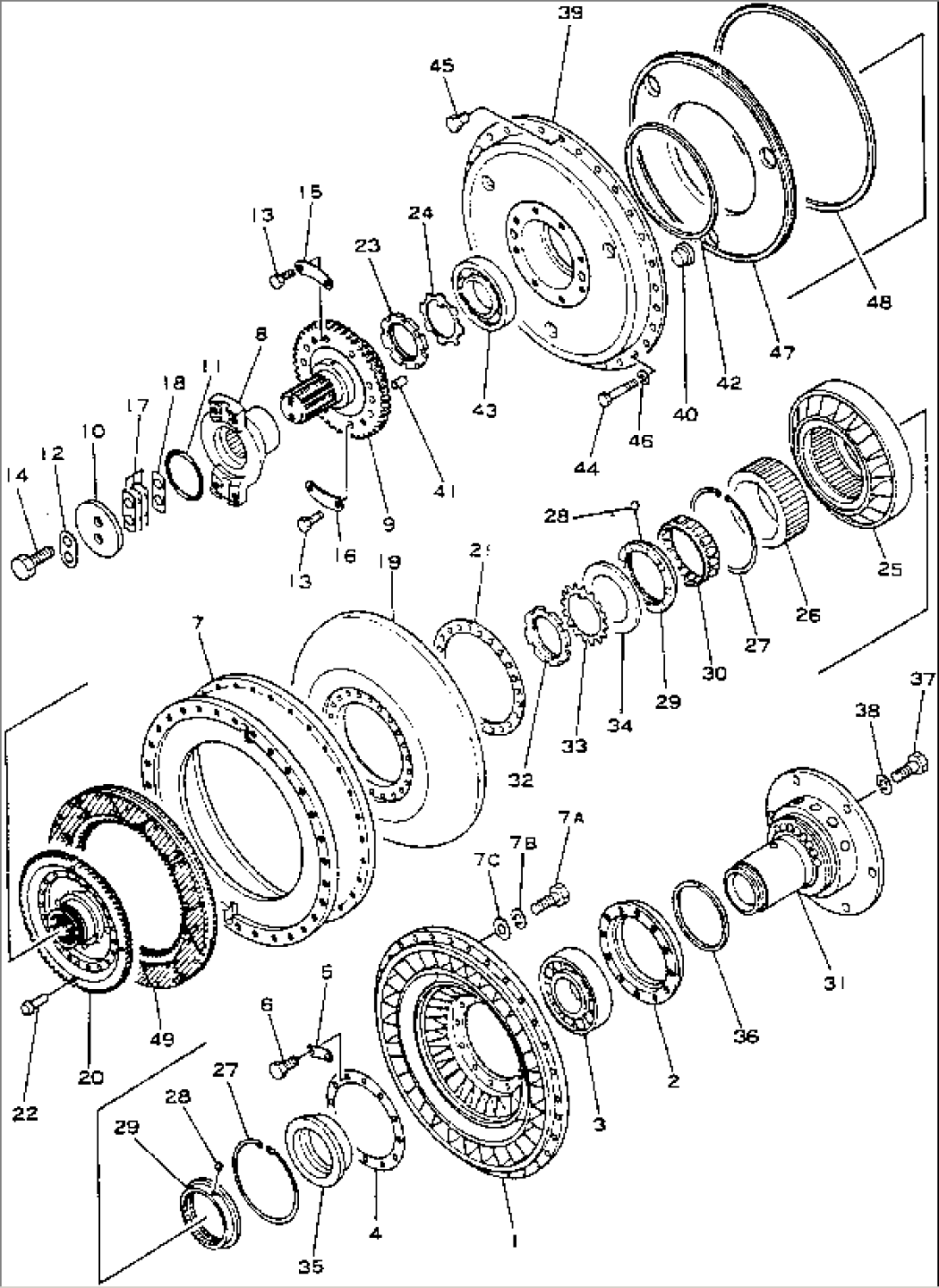

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-13-31001 | TORQUE CONVERTOR A.,(TCS43-2D) | K3001-(2000) | ||
| 1 | 566-13-31120 | PUMP | K3084-(2000) | |
| 1 | 175-13-21123 | PUMP | K3001-K3083 | |
| 2 | 566-13-31140 | RETAINER | K3001-(2000) | |
| 3 | 175-13-21160 | BEARING | K3001-(2000) | |
| 4 | 566-13-31180 | PLATE | K3001-K3083 | |
| 5 | 195-13-11152 | PLATE | K3001-K3083 | |
| 5A | 01643-21032 | WASHER | K3084-(2000) | |
| 6 | 01010-51025 | BOLT | K3001-K3083 | |
| 6A | 01010-51035 | BOLT | K3084-(2000) | |
| 7 | 566-13-31210 | CASE | K3001-(2000) | |
| 7A | 01010-61035 | BOLT | K3001-(2000) | |
| 7B | 01602-21030 | WASHER | K3001-K3243 | |
| 7C | 01643-21032 | WASHER | K3001-(2000) | |
| 8 | 566-13-11871 | COUPLING | K1162-(2000) | |
| 9 | 566-13-11351 | SHAFT | K1006-(2000) | |
| 10 | 566-13-11371 | HOLDER | K1006-(2000) | |
| 11 | 07000-05055 | O-RING | K1006-(2000) | |
| 12 | 566-13-11381 | LOCK | K1006-K3243 | |
| 12A | 01643-31232 | WASHER | K3244-(2000) | |
| 13 | 01010-61235 | BOLT | K1006-(2000) | |
| 14 | 01010-61230 | BOLT | K1006-(2000) | |
| 15 | 566-13-11481 | LOCK | K1006-(2000) | |
| 16 | 566-13-11491 | LOCK | K1006-(2000) | |
| 17 | 566-13-11270 | SHIM | K1006-(2000) | |
| 18 | 566-13-11280 | SHIM | K1006-(2000) | |
| 566-13-31511 | TURBINE ASS'Y | K3001-(2000) | ||
| (\2\287-13-11510) | TURBINE ASS'Y | (K3001-K3327) | ||
| 19 | \6\ | TURBINE | K3001-(2000) | |
| 20 | \6\ | BOSS | K3328-(2000) | |
| 20 | \6\ | BOSS | K3001-K3327 | |
| 21 | \6\ | PLATE | K1006-(2000) | |
| 22 | \6\ | RIVET | K1006-(2000) | |
| 23 | 566-13-11560 | NUT | K1006-(2000) | |
| 24 | 01658-17823 | WASHER | K1006-(2000) | |
| 566-13-32100 | STATOR ASS'Y | K3001-(2000) | ||
| 25 | 566-13-32110 | STATOR | K3001-(2000) | |
| 26 | 566-13-32120 | RACE,OUTER | K3001-(2000) | |
| 27 | 281-13-11170 | RING | K3001-(2000) | |
| 28 | 04260-00635 | BALL | K3001-(2000) | |
| 29 | 566-13-32140 | BUSHING | K3001-(2000) | |
| 30 | 195-13-12161 | WHEEL | K1006-(2000) | |
| 31 | 566-13-32522 | SHAFT | K3328-(2000) | |
| 31 | \0\566-13-32521 | SHAFT | K3001-K3327 | |
| 32 | 566-13-12640 | NUT | K1006-(2000) | |
| 33 | 566-13-12650 | LOCK | K1006-(2000) | |
| 34 | (\2\566-13-32670) | PLATE | (K3001-K3227) | |
| 35 | 566-13-32680 | SPACER | K3001-(2000) | |
| 36 | 195-13-12711 | RING | K1006-(2000) | |
| 37 | 01010-31240 | BOLT | K1006-(2000) | |
| 38 | 01602-11236 | WASHER | K1006-(2000) | |
| 566-13-37111 | HOUSING ASS'Y | K3001-(2000) | ||
| 39 | \6\ | HOUSING | K3001-(2000) | |
| 40 | 287-13-17130 | PIN | K3001-(2000) | |
| 41 | 04020-01638 | PIN | K1006-(2000) | |
| 42 | 566-13-17150 | SEAL | K1006-(2000) | |
| 43 | 06040-06216 | BEARING | K1006-(2000) | |
| 44 | 01010-61235 | BOLT | K3001-(2000) | |
| 45 | 07040-11209 | PLUG | K3001-(2000) | |
| 46 | 01602-01236 | WASHER | K3001-(2000) | |
| 47 | 287-13-17212 | PISTON | K3001-(2000) | |
| 48 | 566-13-17250 | RING | K1006-(2000) | |
| 49 | 154-15-12715 | DISC | K3001-(2000) |
