| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| (711-28-00015) | TORQUE CONVERTER A. | (2806)- | ||
| (\0\711-28-00014) | TORQUE CONVERTER A. | (2322)-(2805) | ||
| (\0\711-28-00013) | TORQUE CONVERTER A. | (2303)-(2321) | ||
| (\0\711-28-00012) | TORQUE CONVERTER A. | (2290)-(2302) | ||
| (\0\711-28-00011) | TORQUE CONVERTER A. | (2251)-(2289) | ||
| (\0\711-28-00010) | TORQUE CONVERTER A. | 1501-(2250) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2231 TO 2245. | ||||

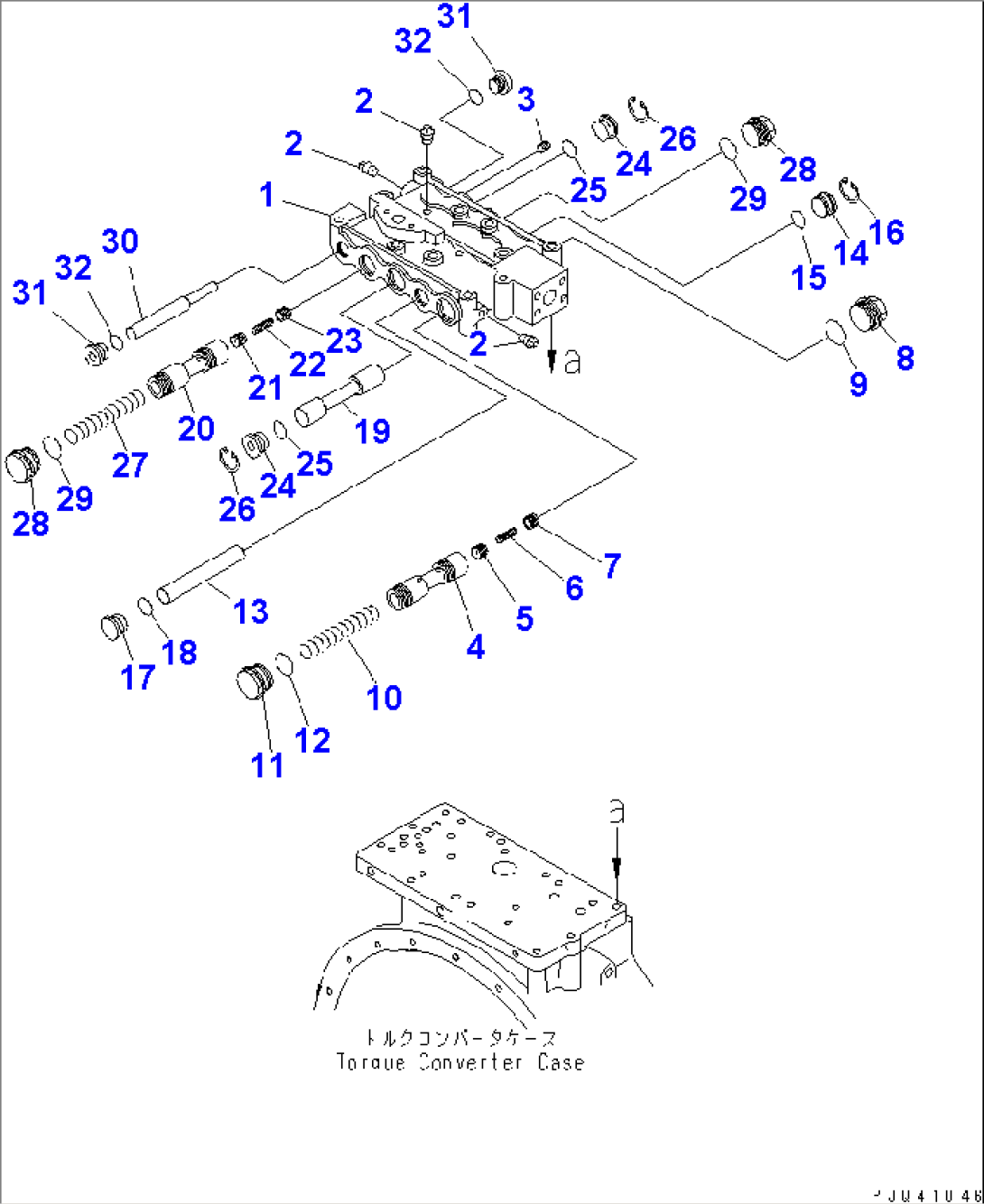

| 711-28-00051 | VALVE ASS'Y | (2251)- | ||
| \1\711-28-00050 | VALVE ASS'Y | 1501-(2250) | ||
| 1 | \6\ | BODY | 1501- | |
| 2 | 07042-20108 | PLUG | 1501- | |
| 3 | 07043-00108 | PLUG | 1501- | |
| 4 | 711-28-36621 | SPOOL | 1501- | |
| 4 | (\2\711-28-36620) | SPOOL | (1501-(2250)) | |
| 5 | 195-15-15130 | SEAL | 1501- | |
| 6 | 180-14-25560 | SPRING | 1501- | |
| 7 | 175-15-15550 | VALVE | 1501- | |
| 8 | 568-13-16511 | PLUG | 1501- | |
| 9 | 07000-33038 | O-RING (KIT) | 1501- | |
| 10 | 568-13-16630 | SPRING | 1501- | |
| 11 | 711-28-36950 | PLUG | 1501- | |
| 12 | 07002-33634 | O-RING (KIT) | 1501- | |
| 13 | 711-28-36650 | SPOOL | 1501- | |
| 14 | 568-13-16730 | STOPPER | 1501- | |
| 15 | 07000-63022 | O-RING (KIT) | 1501- | |
| 16 | 04065-03212 | RING,SNAP | 1501- | |
| 17 | 711-28-36740 | PLUG | 1501- | |
| 18 | 07002-32434 | O-RING (KIT) | 1501- | |
| 19 | 711-28-36910 | SPOOL | 1501- | |
| 20 | 711-28-36670 | SPOOL | 1501- | |
| 21 | 145-15-45390 | VALVE | 1501- | |
| 22 | 180-14-25560 | SPRING | 1501- | |
| 23 | 287-15-15390 | VALVE | 1501- | |
| 24 | 568-13-16180 | STOPPER | 1501- | |
| 25 | 07000-33030 | O-RING (KIT) | 1501- | |
| 26 | 04065-04018 | RING,SNAP | 1501- | |
| 27 | 568-13-16690 | SPRING | 1501- | |
| 28 | 711-28-36960 | PLUG | 1501- | |
| 29 | 07002-33634 | O-RING (KIT) | 1501- | |
| 30 | 711-28-36720 | SPOOL | 1501- | |
| 31 | 07040-12412 | PLUG | 1501- | |
| 32 | 07002-32434 | O-RING (KIT) | 1501- |
