| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| (711-28-00015) | TORQUE CONVERTER A. | (2806)- | ||
| (\0\711-28-00014) | TORQUE CONVERTER A. | (2322)-(2805) | ||
| (\0\711-28-00013) | TORQUE CONVERTER A. | (2303)-(2321) | ||
| (\0\711-28-00012) | TORQUE CONVERTER A. | (2290)-(2302) | ||
| (\0\711-28-00011) | TORQUE CONVERTER A. | (2251)-(2289) | ||
| (\0\711-28-00010) | TORQUE CONVERTER A. | 1501-(2250) | ||

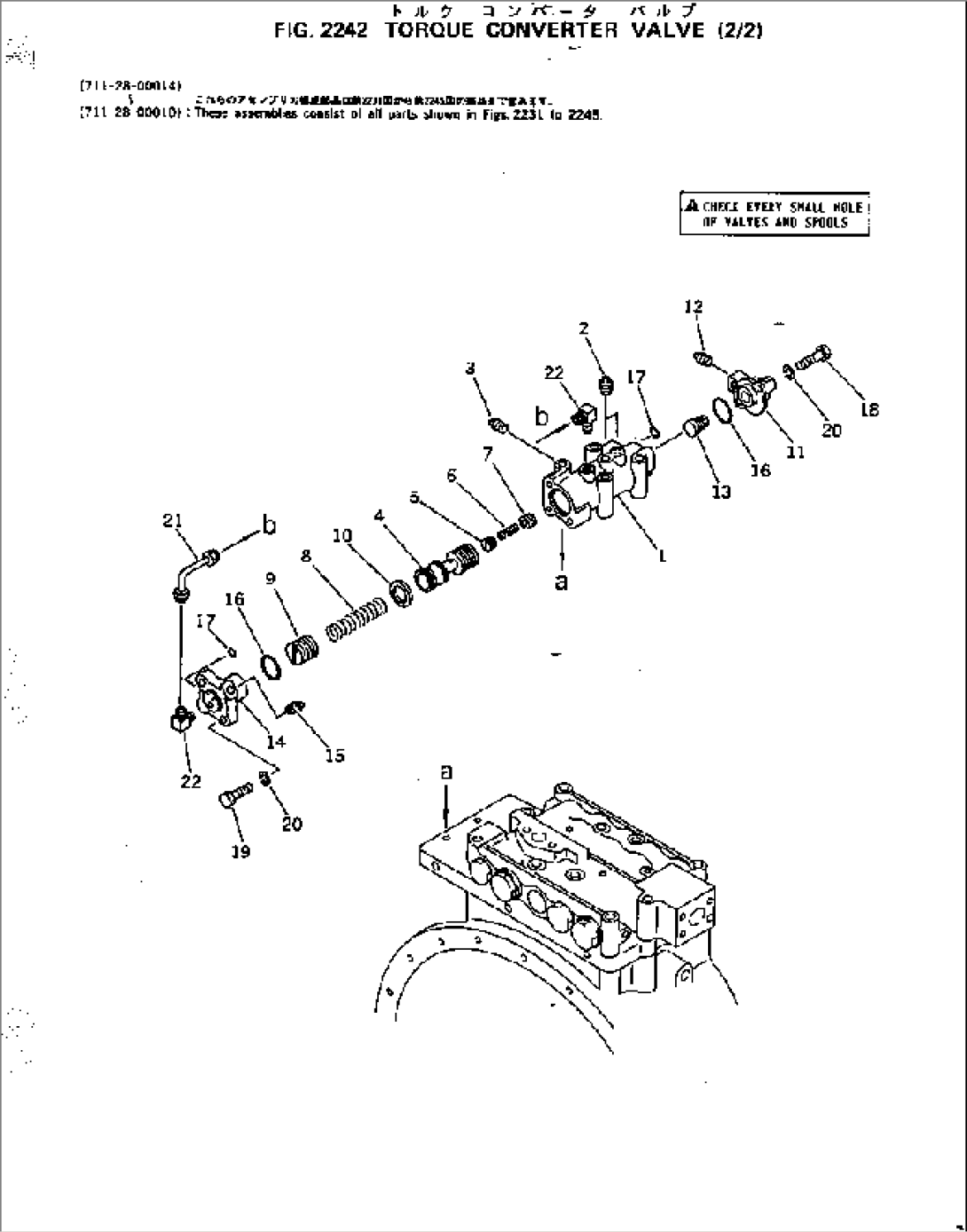

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2231 TO 2245. | ||||
| 711-28-00060 | VALVE ASS'Y | 1501- | ||
| 711-28-00080 | BODY ASS'Y | 1501- | ||
| 1 | \6\ | BODY | 1501- | |
| 2 | 07042-20108 | PLUG | 1501- | |
| 3 | 07043-00108 | PLUG | 1501- | |
| 4 | 711-35-26820 | SPOOL | 1501- | |
| 5 | 198-15-15760 | VALVE | 1501- | |
| 6 | 198-15-15770 | SPRING¤ (L= 30.0) | 1501- | |
| 7 | 175-15-15550 | VALVE | 1501- | |
| 8 | 711-28-26830 | SPRING | 1501- | |
| 9 | 711-20-16670 | PISTON | 1501- | |
| 10 | 711-20-16730 | RING | 1501- | |
| 11 | 711-28-36851 | COVER | (2251)- | |
| (\4\711-28-36850) | COVER | 1501-(2250) | ||
| (711-28-36851{711-28-36841)} | ||||
| 12 | 07042-20108 | PLUG | 1501- | |
| 13 | 711-28-36841 | PISTON | (2251)- | |
| (\4\711-28-36840) | PISTON | 1501-(2250) | ||
| (711-28-36851{711-28-36841)} | ||||
| 14 | 711-35-26780 | COVER | 1501- | |
| 15 | 07042-20108 | PLUG | 1501- | |
| 16 | 07000-63038 | O-RING (KIT) | 1501- | |
| 17 | 07000-62010 | O-RING (KIT) | 1501- | |
| 18 | 01010-51045 | BOLT | 1501- | |
| 19 | 01010-51035 | BOLT | 1501- | |
| 20 | 01602-21030 | WASHER,SPRING | 1501- | |
| 21 | 711-35-26790 | TUBE | 1501- | |
| 22 | 176-43-41350 | ELBOW | 1501- |
