| Item | Part No. | Part Name | Qty | Serial No. |
| (17M-13-00070) | TORQUE CONVERTER A. | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2310-51A1 TO F2310-57A1. | ||||

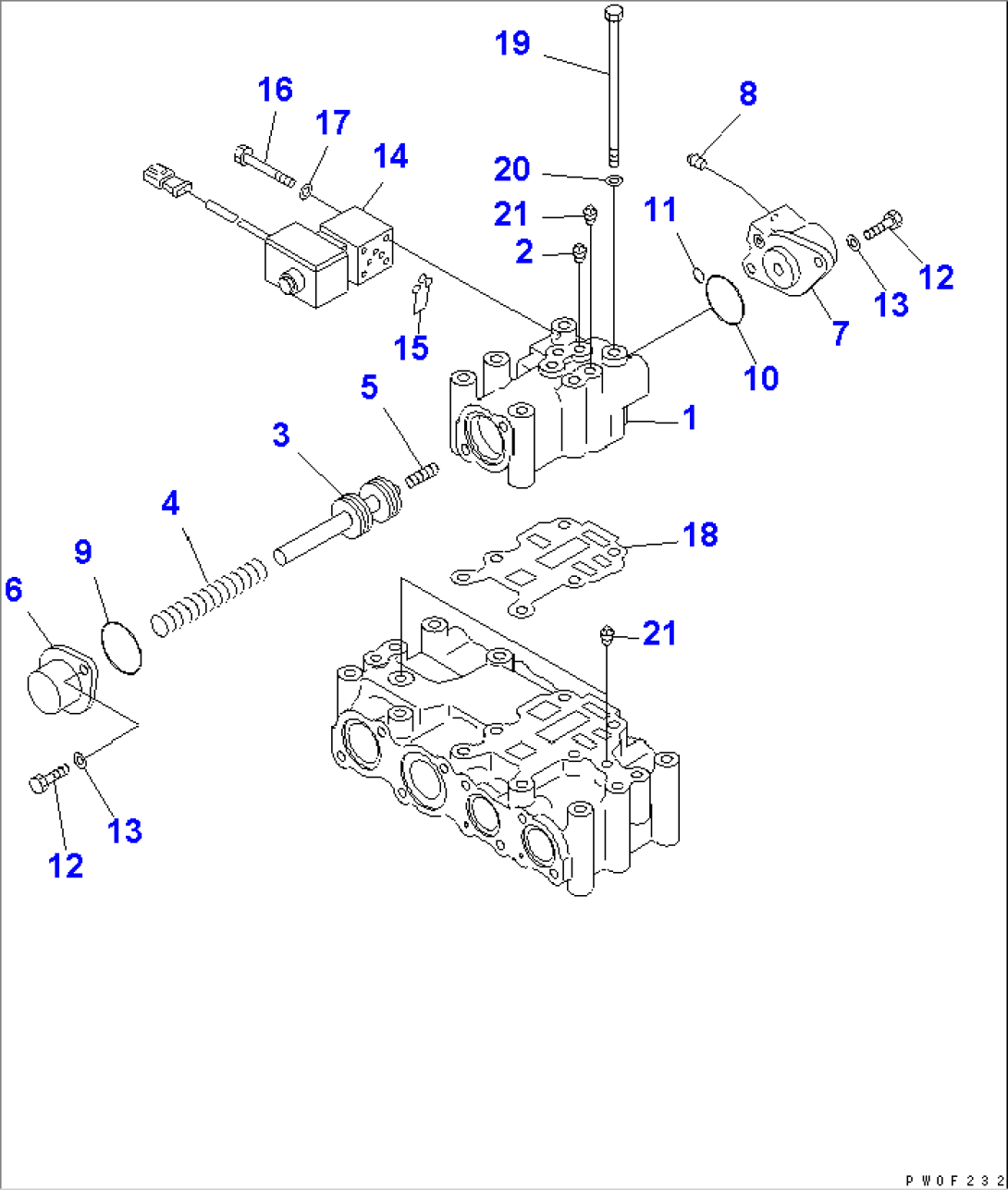

| (17M-13-00080) | VALVE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2310-56A1 AND F2310-57A1. | ||||
| 1 | \6\ | BODY | 10001- | |
| 2 | 07042-80108 | PLUG | (1360)- | |
| 2 | 07042-20108 | PLUG | 10001-(1359) | |
| 3 | 17M-13-26720 | SPOOL | 10001- | |
| 4 | 198-40-13130 | SPRING | 10001- | |
| 5 | 711-66-16731 | PISTON | 10001- | |
| 6 | 711-66-16751 | COVER | 10001- | |
| 711-66-00330 | COVER ASS'Y | 10001- | ||
| 7 | \6\ | COVER | 10001- | |
| 8 | 07042-80108 | PLUG | (1360)- | |
| 8 | 07042-20108 | PLUG | 10001-(1359) | |
| 9 | 07000-63048 | O-RING (K1) | 10001- | |
| 10 | 07000-73045 | O-RING (K1) | 10001- | |
| 11 | 07000-62010 | O-RING (K1) | 10001- | |
| 12 | 01010-81025 | BOLT | 10001- | |
| 13 | 01643-31032 | WASHER | 10001- | |
| 14 | 17M-13-21310 | VALVE ASS'Y,SOLENOID | 10001- | |
| 15 | 07000-41006 | O-RING (K1) | 10001- | |
| 16 | 01010-80655 | BOLT | 10001- | |
| 17 | 01643-30623 | WASHER | 10001- | |
| 18 | 711-66-16920 | GASKET (K1) | 10001- | |
| 19 | 01011-81090 | BOLT | 10001- | |
| 20 | 01643-31032 | WASHER | 10001- | |
| 21 | 07042-80108 | PLUG | (1360)- |
