| Item | Part No. | Part Name | Qty | Serial No. |
| 714-07-30014 | TRANSMISSION ASS'Y | 85366- | ||
| 714-07-30011 | TRANSMISSION ASS'Y | 85167-85365 | ||
| 714-07-30010 | TRANSMISSION ASS'Y | 66001-85166 | ||

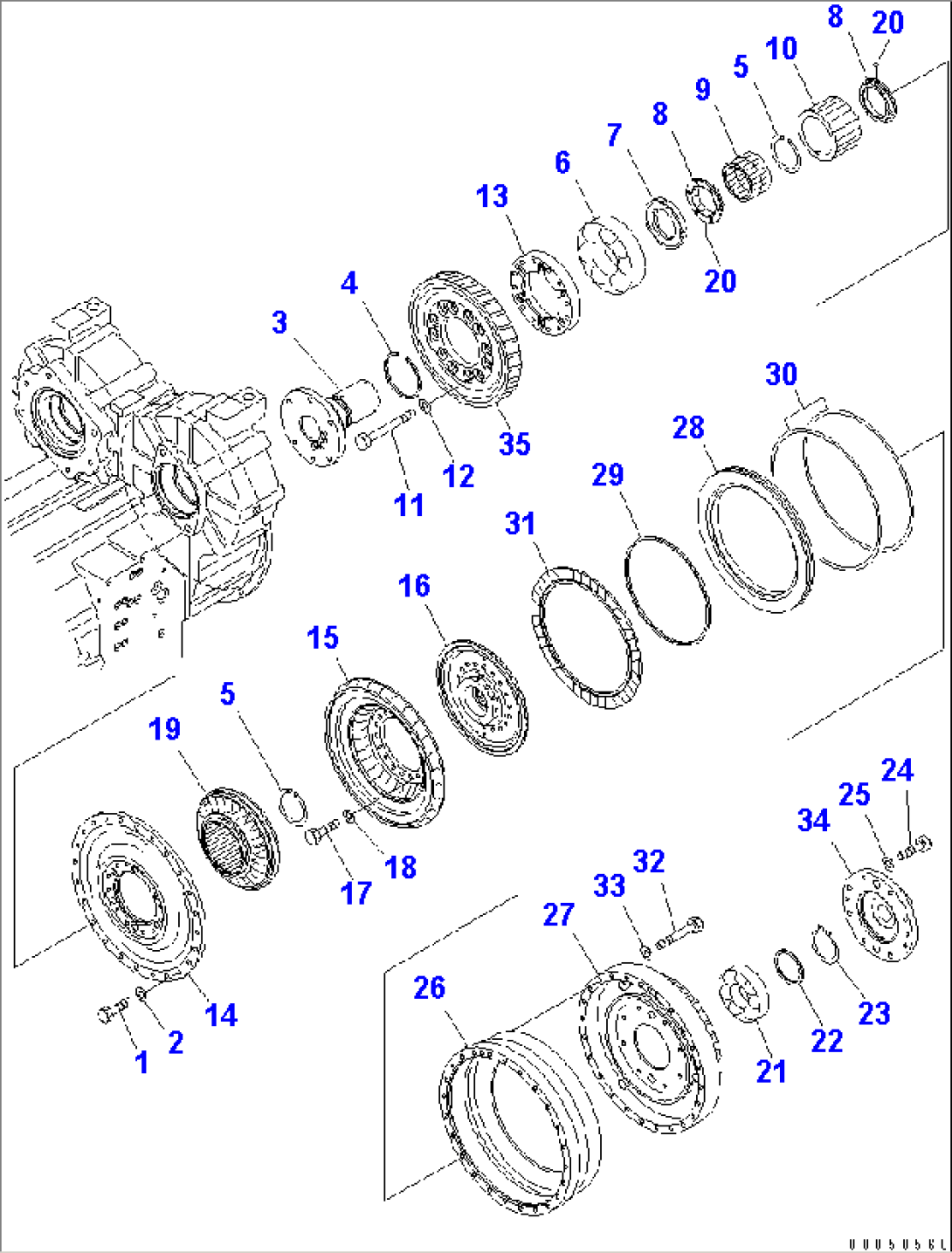

| THESE ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0, 52A1, 53A0 TO 57A0, 58A1, 59A0 TO 61A0, 62A1 TO 64A1, | ||||
| 711-47-61010 | TORQUE CONVERTER A. | 66001- | ||
| 1 | 01010-81030 | BOLT | 66001- | |
| 2 | 01643-31032 | WASHER | 66001- | |
| 3 | 711-47-62551 | SHAFT | 66001- | |
| 4 | 07018-31205 | RING,SEAL | 66001- | |
| 5 | 04077-00120 | RING | 66001- | |
| 6 | 711-47-51160 | BEARING | 66001- | |
| 7 | 711-47-52680 | NUT | 66001- | |
| 8 | 711-47-52140 | BUSHING | 66001- | |
| 9 | 711-47-52160 | WHEEL | 66001- | |
| 10 | 711-47-52120 | OUTER RACE | 66001- | |
| 11 | 01010-81060 | BOLT | 66001- | |
| 12 | 01643-31032 | WASHER | 66001- | |
| 13 | 711-47-51191 | GUIDE | 66001- | |
| 14 | 711-47-51411 | PUMP | 66001- | |
| 15 | 711-47-51520 | TURBINE | 66001- | |
| 16 | 711-47-51570 | BOSS | 66001- | |
| 17 | 01010-81025 | BOLT | 66001- | |
| 18 | 01643-31032 | WASHER | 66001- | |
| 19 | 711-47-51430 | STATOR | 66001- | |
| 20 | 04260-00635 | BALL | 66001- | |
| 21 | 06040-06214 | BEARING | 66001- | |
| 22 | 711-47-11770 | PLATE | 66001- | |
| 23 | 04064-07025 | RING | 66001- | |
| 24 | 01010-81035 | BOLT | 66001- | |
| 25 | 01643-31032 | WASHER | 66001- | |
| 26 | 711-61-21210 | CASE | 66001- | |
| 27 | 711-47-57110 | HOUSING | 66001- | |
| 28 | 23S-13-47210 | PISTON | 66001- | |
| 29 | 711-35-17151 | RING,SEAL | 66001- | |
| 30 | 568-15-12850 | RING | 66001- | |
| 31 | 424-15-12711 | DISC | 66001- | |
| 32 | 01010-81065 | BOLT | 66001- | |
| 33 | 01643-31032 | WASHER | 66001- | |
| 34 | 711-47-51270 | PILOT | 66001- | |
| 35 | 711-47-61151 | GEAR, 99 TEETH | 66001- |
