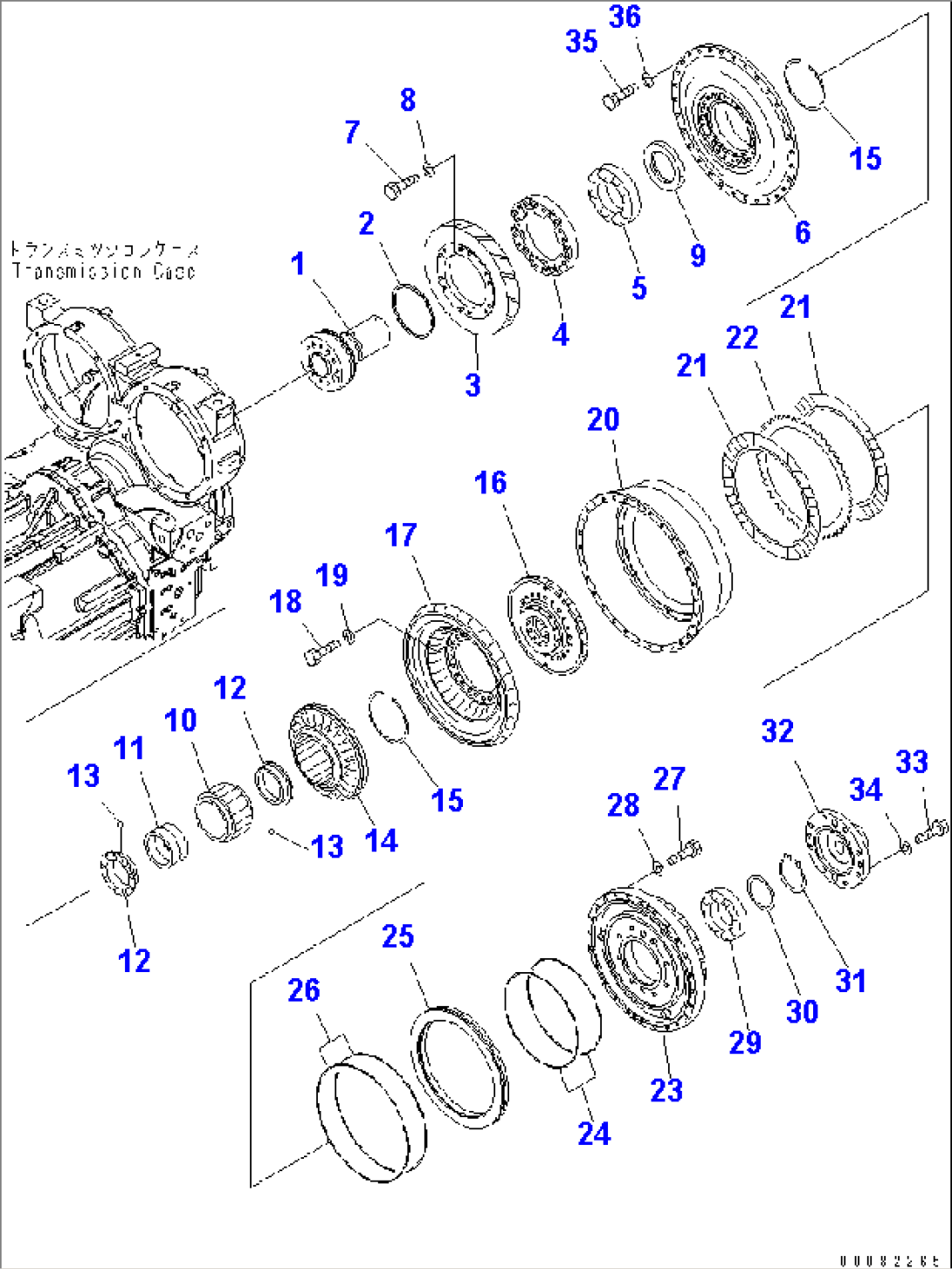

| Item | Part No. | Part Name | Qty | Serial No. |
| 714-07-40010 | TRANSMISSION ASS'Y | 90001- | ||
| 711-47-71010 | TORQUE CONVERTER | 90001- | ||
| 1 | 711-47-72550 | SHAFT | 90001- | |
| 2 | 195-13-12711 | RING,SEAL (K1) | 90001- | |
| 3 | 711-47-71151 | GEAR | 90001- | |
| 4 | 711-47-71191 | GUIDE | 90001- | |
| 5 | 568-13-13351 | BEARING | 90001- | |
| 6 | 711-47-71411 | PUMP | 90001- | |
| 7 | 01010-81075 | BOLT | 90001- | |
| 8 | 01643-31032 | WASHER | 90001- | |
| 9 | 23W-13-12680 | NUT | 90001- | |
| 10 | 711-47-72120 | RACE | 90001- | |
| 11 | 711-73-22540 | FREE WHEEL | 90001- | |
| 12 | 425-13-32140 | BUSHING | 90001- | |
| 13 | 04260-00635 | BALL | 90001- | |
| 14 | 711-47-71431 | STATOR | 90001- | |
| 15 | 567-13-11170 | RING,SNAP | 90001- | |
| 16 | 711-47-71571 | BOSS | 90001- | |
| 17 | 23W-13-11520 | TURBINE | 90001- | |
| 18 | 01010-81030 | BOLT | 90001- | |
| 19 | 01643-31032 | WASHER | 90001- | |
| 20 | 711-47-77211 | CASE | 90001- | |
| 21 | 424-15-12711 | DISC | 90001- | |
| 22 | 135-15-22730 | PLATE | 90001- | |
| 23 | 711-47-77112 | HOUSING | 90001- | |
| 24 | 113-15-12840 | RING (K1) | 90001- | |
| 25 | 711-47-77230 | PISTON | 90001- | |
| 26 | 144-15-22881 | RING,SEAL (K1) | 90001- | |
| 27 | 01010-81050 | BOLT | 90001- | |
| 28 | 01643-31032 | WASHER | 90001- | |
| 29 | 711-16-11560 | BEARING | 90001- | |
| 30 | 711-53-11770 | PLATE | 90001- | |
| 31 | 04064-08025 | RING | 90001- | |
| 32 | 711-47-71271 | COVER | 90001- | |
| 33 | 01010-81240 | BOLT | 90001- | |
| 34 | 01643-31232 | WASHER | 90001- | |
| 35 | 01010-81030 | BOLT | 90001- | |
| 36 | 01643-31032 | WASHER | 90001- |
