| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (425-13-31000) | TORQUE CONVERTER A. | 55001- | ||
| (425-13-31010) | TORQUE CONVERTER A.,(WITH LOCK-UP) | 55001- | ||

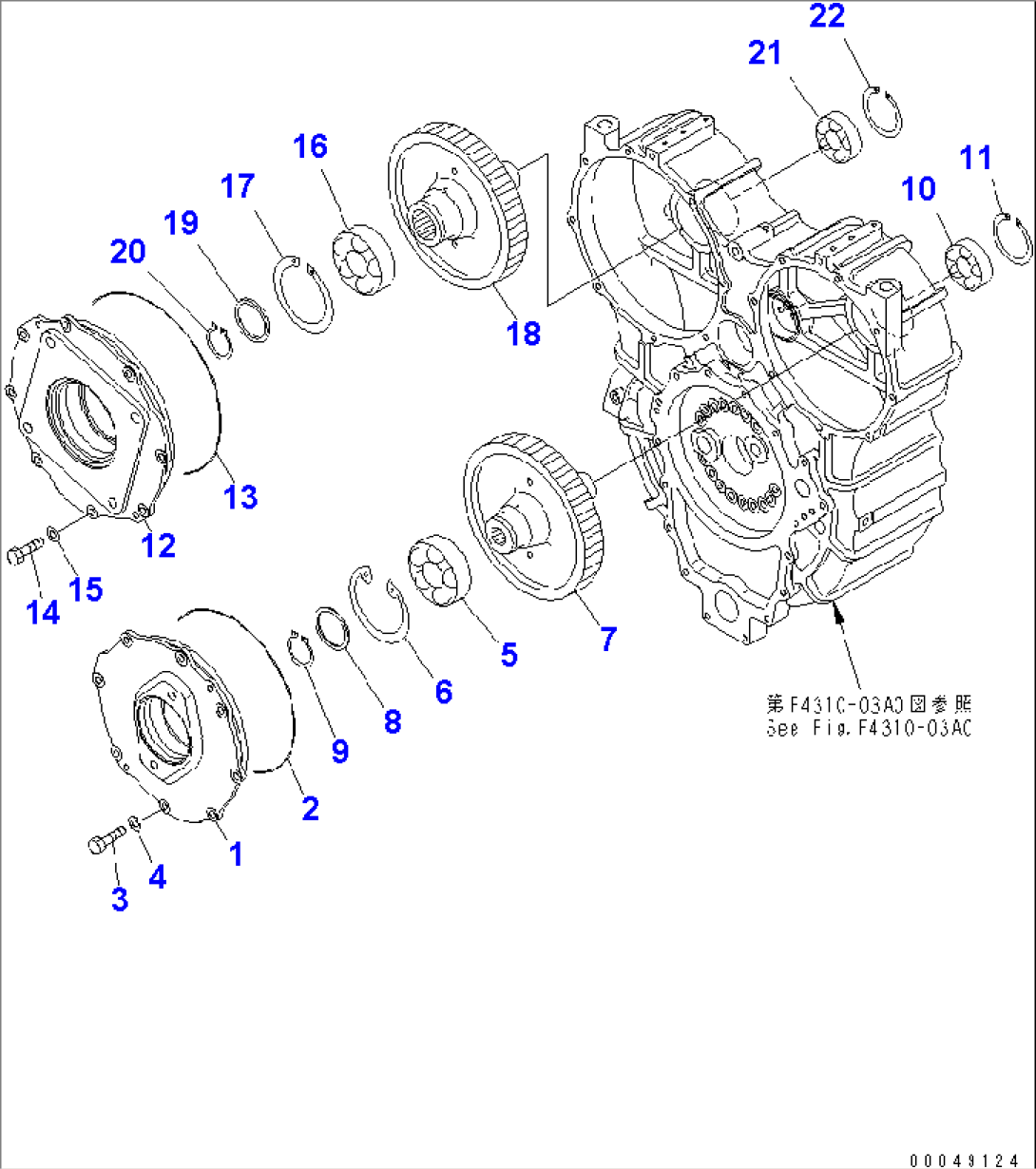

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4310-51A0 TO F4310-55A0. | ||||
| 1 | 425-13-34142 | CAGE,R.H. | 55001- | |
| 2 | 07000-75310 | O-RING (K1) | 55001- | |
| 3 | 01010-81235 | BOLT | (100107)- | |
| 3 | 01010-81235 | BOLT | 55001-(100106) | |
| 4 | 01643-31232 | WASHER | (100107)- | |
| 4 | 01643-31232 | WASHER | 55001-(100106) | |
| 5 | 06040-06214 | BEARING | 55001- | |
| 6 | 04065-01254 | RING,SNAP | 55001- | |
| 7 | 425-13-34211 | GEAR,R.H. | 55001- | |
| 8 | 711-47-11770 | PLATE | 55001- | |
| 9 | 04064-07025 | RING,SNAP | 55001- | |
| 10 | 426-13-49110 | ROLLER | 55001- | |
| 11 | 04077-00100 | RING | 55001- | |
| 12 | 425-13-34130 | CAGE,L.H. | 55001- | |
| 13 | 07000-75345 | O-RING (K1) | 55001- | |
| 14 | 01010-81235 | BOLT | 55001- | |
| 15 | 01643-31232 | WASHER | 55001- | |
| 16 | 06040-06217 | BEARING | 55001- | |
| 17 | 04071-00150 | RING | 55001- | |
| 18 | 425-13-34221 | GEAR,L.H. | 55001- | |
| 19 | 568-13-11770 | PLATE | 55001- | |
| 20 | 04064-08530 | RING,SNAP | 55001- | |
| 21 | 426-13-49110 | ROLLER | 55001- | |
| 22 | 04077-00100 | RING | 55001- |
