| Item | Part No. | Part Name | Qty | Serial No. |
| 714-07-40000 | TRANSMISSION ASS'Y | 90001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0A TO F4350-65A0A AND F4350-66A0 TO F4350-70A0. | ||||

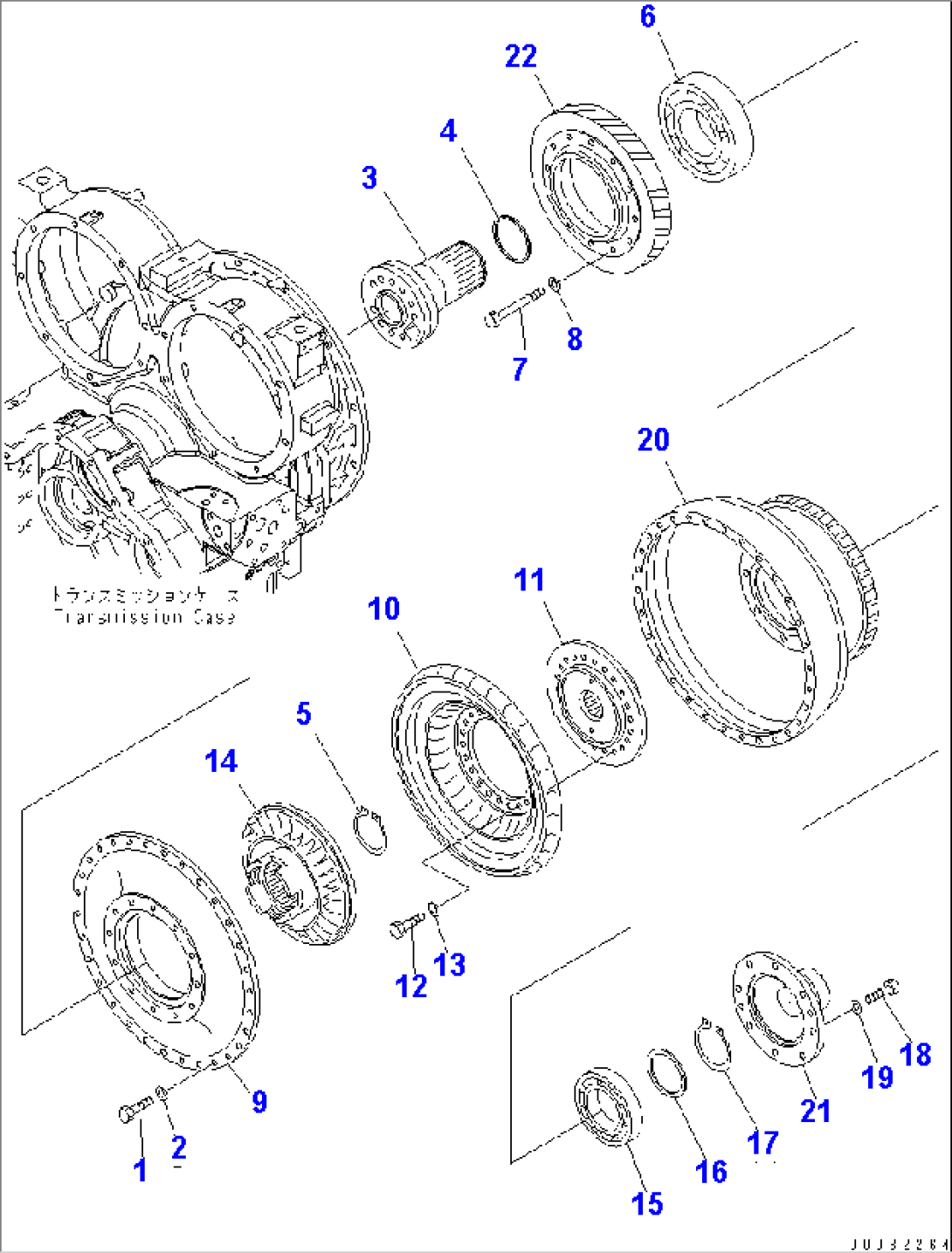

| 711-47-71000 | TORQUE CONVERTER | 90001- | ||
| 1 | 01010-81030 | BOLT | 90001- | |
| 2 | 01643-31032 | WASHER | 90001- | |
| 3 | 711-47-72520 | SHAFT | 90001- | |
| 4 | 195-13-12711 | RING (K1) | 90001- | |
| 5 | 04064-08530 | RING | 90001- | |
| 6 | 711-47-71551 | BEARING | 90001- | |
| 7 | 01010-81065 | BOLT | 90001- | |
| 8 | 01643-31032 | WASHER | 90001- | |
| 9 | 711-47-71121 | PUMP | 90001- | |
| 10 | 23W-13-11520 | TURBINE | 90001- | |
| 11 | 711-47-71530 | BOSS | 90001- | |
| 12 | 01010-81030 | BOLT | 90001- | |
| 13 | 01643-31032 | WASHER | 90001- | |
| 14 | 711-47-72111 | STATOR | 90001- | |
| 15 | 711-16-11560 | BEARING | 90001- | |
| 16 | 711-53-11770 | PLATE | 90001- | |
| 17 | 04064-08025 | RING | 90001- | |
| 18 | 01010-81235 | BOLT | 90001- | |
| 19 | 01643-31232 | WASHER | 90001- | |
| 20 | 711-47-71211 | CASE | 90001- | |
| 21 | 711-47-71250 | PILOT | 90001- | |
| 22 | 711-47-71141 | GEAR | 90001- |
