| Item | Part No. | Part Name | Qty | Serial No. |
| (154-15-00017) | TRANSMISSION ASS'Y | 31102- | ||
| (\0\154-15-00016) | TRANSMISSION ASS'Y | 29713-31101 | ||
| (\0\154-15-00015) | TRANSMISSION ASS'Y | 25001-29712 | ||

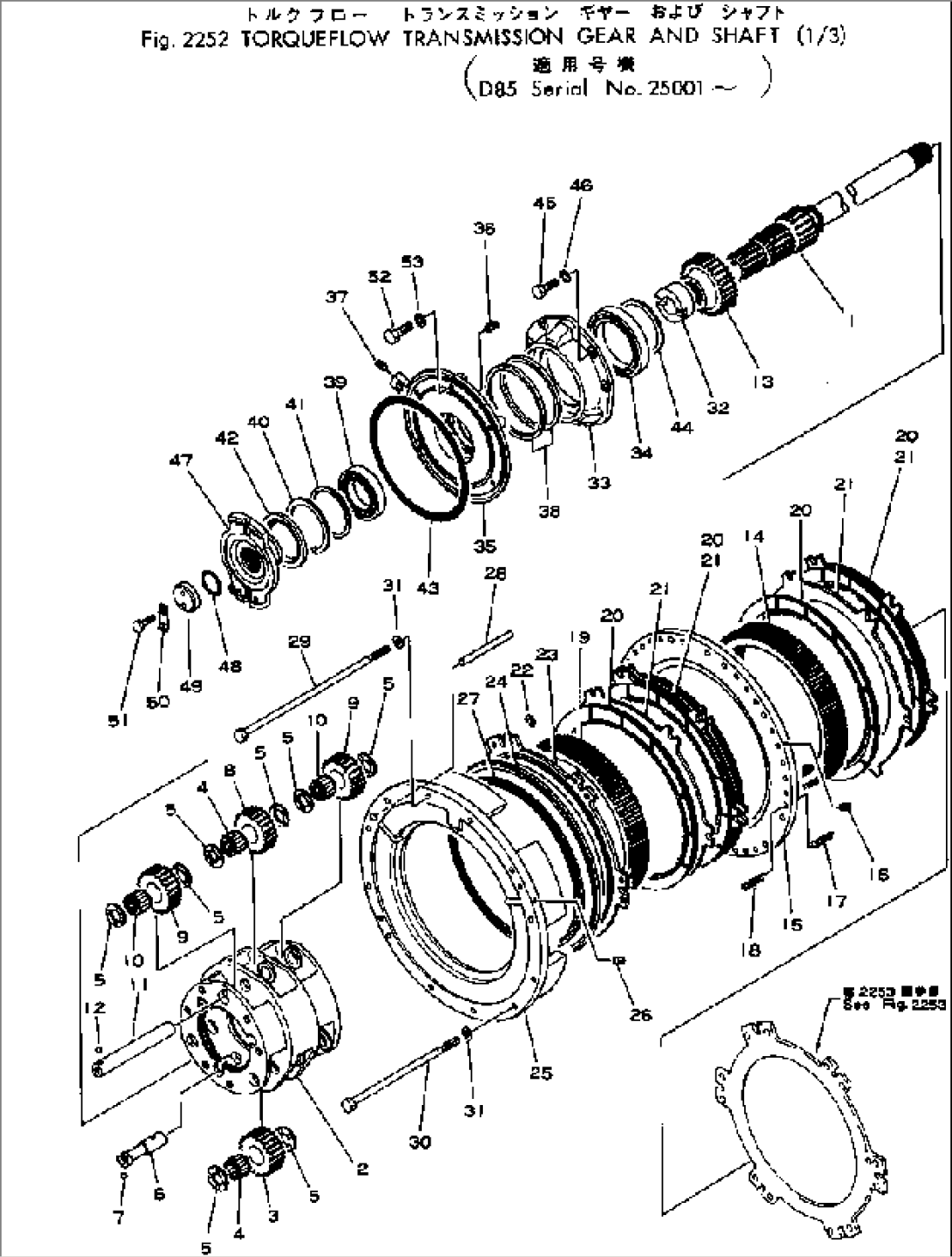

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2251 TO 2263A. | ||||
| (154-15-00026) | TRANSMISSION ASS'Y | 29713- | ||
| (\0\154-15-00025) | TRANSMISSION ASS'Y | 25001-29712 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2251 TO 2255. | ||||
| 1 | 154-15-32110 | SHAFT | 25001- | |
| 2 | 154-15-32320 | CARRIER | 25001- | |
| 3 | 154-15-32470 | GEAR | 25001- | |
| 4 | 154-15-39120 | BEARING | 25001- | |
| 5 | 09233-15125 | WASHER | (17747)- | |
| 5 | \0\09233-05125 | WASHER | 25001-(17746) | |
| 6 | 154-15-32530 | SHAFT | 25001- | |
| 7 | 04260-00635 | BALL | 25001- | |
| 8 | 154-15-32460 | GEAR | 25001- | |
| 9 | 154-15-32450 | GEAR | 25001- | |
| 10 | 09232-05138 | BEARING | 25001- | |
| 11 | 154-15-32510 | SHAFT | 25001- | |
| 12 | 04260-00635 | BALL | 25001- | |
| 13 | 154-15-32120 | GEAR | 25001- | |
| 14 | 155-15-12620 | GEAR | 25001- | |
| 154-15-00271 | PLATE ASS'Y | 25001- | ||
| 15 | \6\ | PLATE | 25001- | |
| 16 | 145-14-11320 | PLUG | 25001- | |
| 17 | 154-15-22760 | SPRING | 25001- | |
| 18 | 175-15-42781 | SPRING | 25001- | |
| 19 | 154-15-32610 | GEAR | 25001- | |
| 20 | 19M-15-12721 | DISC | 31102- | |
| 20 | \0\175-15-12713 | DISC | 25001-31101 | |
| 21 | 175-15-42721 | PLATE | 25001- | |
| 22 | 175-15-42880 | SPRING | 25001- | |
| 23 | 155-15-12892 | PISTON | 25001- | |
| 24 | 154-15-22811 | RING,SEAL (KIT) | 25001- | |
| 154-15-00400 | HOUSING ASS'Y | 25001- | ||
| 25 | \6\ | HOUSING | 25001- | |
| 26 | 145-14-11320 | PLUG | 25001- | |
| 27 | 155-15-12811 | RING,SEAL (KIT) | 25001- | |
| 28 | 155-15-12770 | PIN | 25001- | |
| 29 | 155-15-11191 | BOLT | 25001- | |
| 30 | 155-15-11291 | BOLT | 25001- | |
| 31 | 145-14-11570 | WASHER | 25001- | |
| 32 | 195-15-12141 | SPACER | 25001- | |
| 33 | 154-15-32310 | CAGE | 25001- | |
| 34 | 06000-06924 | BEARING | 25001- | |
| 154-15-00410 | CASE ASS'Y | 25001- | ||
| 35 | \6\ | CASE | 25001- | |
| 36 | 195-15-11230 | PLUG | 25001- | |
| 37 | 07042-30211 | PLUG | 25001- | |
| 38 | 07018-11805 | RING,SEAL | 25001- | |
| 39 | 06000-06016 | BEARING | 25001- | |
| 40 | 04077-00125 | RING,SNAP | 25001- | |
| 41 | 195-15-11240 | SPACER | 25001- | |
| 42 | 07012-10100 | SEAL (KIT) | 25001- | |
| 43 | 07000-05290 | O-RING (KIT) | 25001- | |
| 44 | 04070-00120 | RING | 25001- | |
| 45 | 01010-81230 | BOLT | 25001- | |
| 46 | 01602-21236 | WASHER,SPRING | 25001- | |
| 47 | 154-15-32150 | COUPLING | 25001- | |
| 48 | 07000-75055 | O-RING (KIT) | 25001- | |
| 49 | 175-15-12160 | HOLDER | 25001- | |
| 50 | 04081-05512 | LOCK (KIT) | 25001- | |
| 51 | 01010-81230 | BOLT | 25001- | |
| 52 | 01010-81235 | BOLT | 25001- | |
| 53 | 01602-21236 | WASHER,SPRING | 25001- |
