| Item | Part No. | Part Name | Qty | Serial No. |
| (154-15-00017) | TRANSMISSION ASS'Y | 31102- | ||
| (\0\154-15-00016) | TRANSMISSION ASS'Y | 29713-31101 | ||
| (\0\154-15-00015) | TRANSMISSION ASS'Y | 25001-29712 | ||

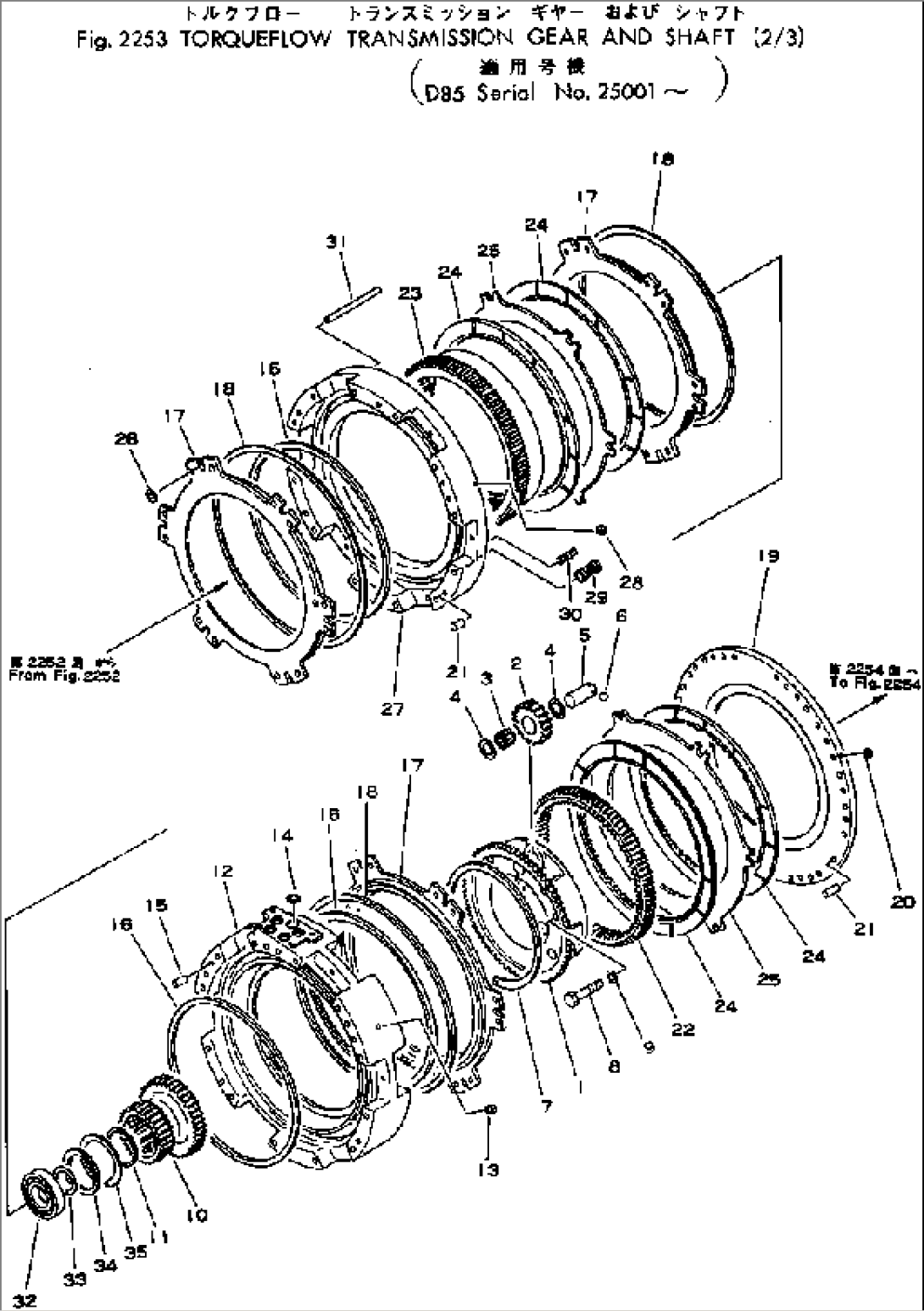

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2251 TO 2263A. | ||||
| (154-15-00026) | TRANSMISSION ASS'Y | 29713- | ||
| (\0\154-15-00025) | TRANSMISSION ASS'Y | 25001-29712 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2251 TO 2255. | ||||
| 1 | 155-15-12363 | CARRIER | 25001- | |
| 2 | 154-15-32490 | GEAR | 25001- | |
| 3 | 09232-03832 | BEARING | 25001- | |
| 4 | 09233-13820 | WASHER | (17747)- | |
| 4 | \0\09233-03820 | WASHER | 25001-(17746) | |
| 5 | 155-15-12551 | SHAFT | 25001- | |
| 6 | 04260-00635 | BALL | 25001- | |
| 7 | 175-15-42670 | RING | 25001- | |
| 8 | 01010-61470 | BOLT | 25001- | |
| 9 | 01602-21442 | WASHER,SPRING | 25001- | |
| 10 | 154-15-32130 | GEAR | 25001- | |
| 11 | 04064-08530 | RING,SNAP | 25001- | |
| 154-15-00251 | HOUSING ASS'Y | 25001- | ||
| 12 | \6\ | HOUSING | 25001- | |
| 13 | 145-14-11320 | PLUG | 25001- | |
| 14 | 07000-73022 | O-RING (KIT) | 25001- | |
| 15 | 04020-01228 | PIN,DOWEL | 25001- | |
| 16 | 155-15-12820 | RING,SEAL (KIT) | 25001- | |
| 17 | 155-15-12880 | PISTON | 25001- | |
| 18 | 154-15-22811 | RING,SEAL (KIT) | 25001- | |
| 154-15-00240 | PLATE ASS'Y | 25001- | ||
| 19 | \6\ | PLATE | 25001- | |
| 20 | 145-14-11320 | PLUG | 25001- | |
| 21 | 175-15-31210 | PIN,DOWEL | 25001- | |
| 22 | 155-15-12650 | GEAR,RING | 25001- | |
| 23 | 155-15-12632 | GEAR,RING | 25001- | |
| 24 | 19M-15-12721 | DISC | 31102- | |
| 24 | \0\175-15-12713 | DISC | 25001-31101 | |
| 25 | 175-15-42721 | PLATE | 25001- | |
| 26 | 175-15-42880 | SPRING | 25001- | |
| 154-15-00262 | HOUSING ASS'Y | 25001- | ||
| 27 | \6\ | HOUSING | 25001- | |
| 28 | 145-14-11320 | PLUG | 25001- | |
| 29 | 569-15-41310 | SLEEVE | .- | |
| 29 | \0\09231-01430 | SLEEVE | 25001-. | |
| 30 | 154-15-22760 | SPRING | 25001- | |
| 31 | 155-15-12770 | PIN | 25001- | |
| 32 | 06042-00212 | BEARING | 25001- | |
| 33 | 04064-06020 | RING,SNAP | 25001- | |
| 34 | 175-15-42340 | PLATE | 25001- | |
| 35 | 130-09-15740 | RING,SNAP | 25001- |
