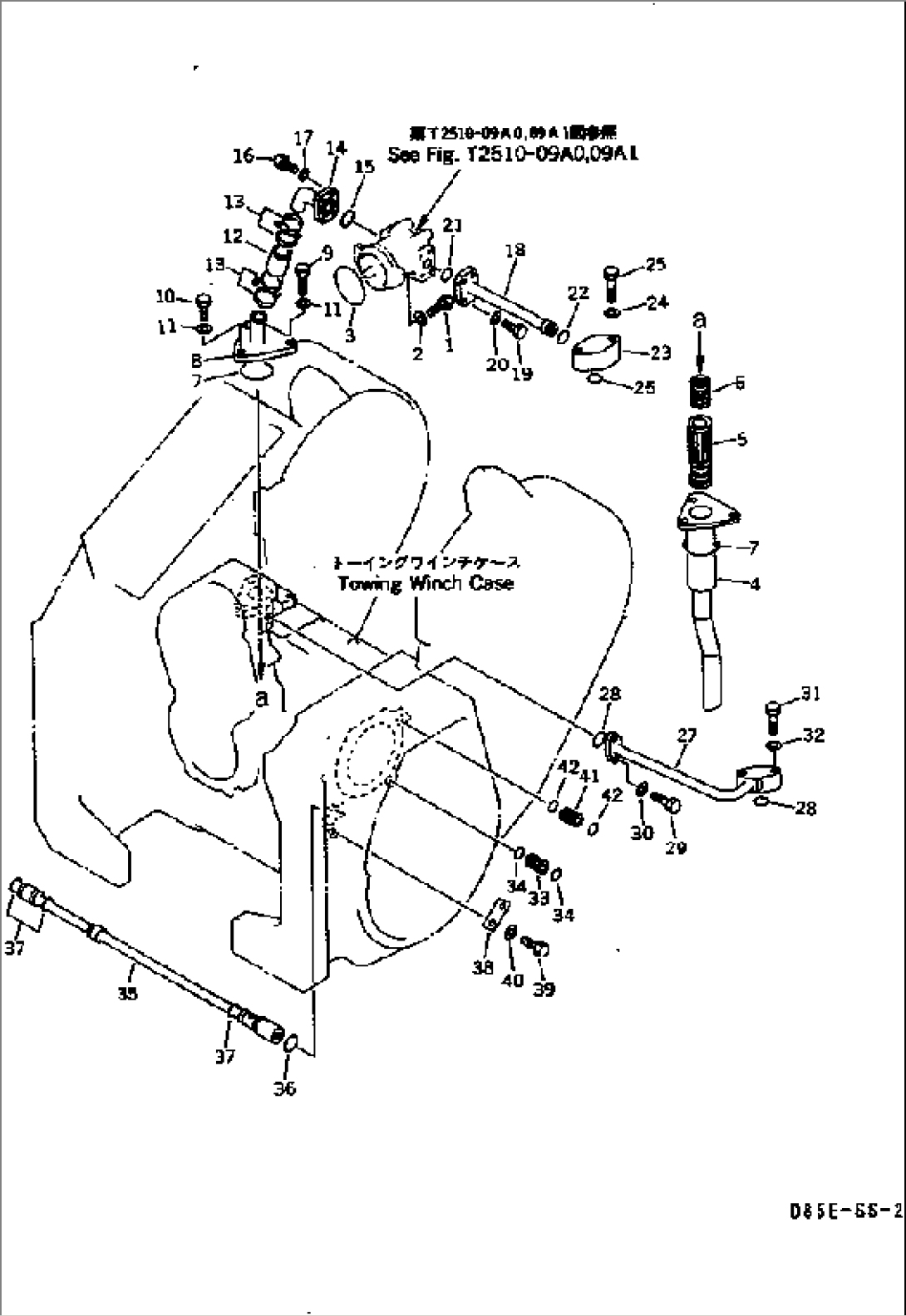

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-51030 | BOLT | 3001- | |
| 2 | 01643-31032 | WASHER | 3001- | |
| 3 | 07000-72085 | O-RING | 3001- | |
| 4 | 14X-960-6121 | TUBE | 3001- | |
| 5 | 125-15-11722 | MAGNET ASS'Y | 3001- | |
| 6 | 125-15-11790 | SPRING | 3001- | |
| 7 | 07000-72070 | O-RING | 3001- | |
| 8 | 14X-960-6131 | TUBE | 3001- | |
| 9 | 01010-51280 | BOLT | 3001- | |
| 10 | 01010-51245 | BOLT | 3001- | |
| 11 | 01643-31232 | WASHER | 3001- | |
| 12 | 07260-02609 | HOSE | 3001- | |
| 13 | 07281-00489 | CLAMP | 3001- | |
| 14 | 14X-960-6142 | TUBE | 4027- | |
| 14 | 14X-960-6141 | TUBE | 3001-4026 | |
| 15 | 07000-73032 | O-RING | 3001- | |
| 16 | 01010-51030 | BOLT | 3001- | |
| 17 | 01602-21030 | WASHER,SPRING | 3001- | |
| 18 | 14X-960-6190 | TUBE | 3001- | |
| 19 | 01010-50835 | BOLT | 3001- | |
| 20 | 01602-20825 | WASHER,SPRING | 3001- | |
| 21 | 07000-73025 | O-RING | 3001- | |
| 22 | 07000-73022 | O-RING | 3001- | |
| 23 | 14X-960-6170 | BLOCK | 3001- | |
| 24 | 01643-31032 | WASHER | 3001- | |
| 25 | 01011-51080 | BOLT | 3001- | |
| 26 | 07000-73025 | O-RING | 3001- | |
| 27 | 14X-960-6150 | TUBE | 3001- | |
| 28 | 07000-73025 | O-RING | 3001- | |
| 29 | 01010-51030 | BOLT | 3001- | |
| 30 | 01602-21030 | WASHER,SPRING | 3001- | |
| 31 | 01011-51080 | BOLT | 3001- | |
| 32 | 01643-31032 | WASHER | 3001- | |
| 33 | 15B-960-6260 | SLEEVE | 3001- | |
| 34 | 07000-72021 | O-RING | 3001- | |
| 35 | 14X-960-6391 | TUBE | 3001- | |
| 36 | 07000-73028 | O-RING | 3001- | |
| 37 | 07000-73025 | O-RING | 3001- | |
| 38 | 04082-00206 | LOCK | 3001- | |
| 39 | 01010-51225 | BOLT | 3001- | |
| 40 | 01643-31232 | WASHER | 3001- | |
| 41 | 14X-960-6260 | SLEEVE | 3001- | |
| 42 | 07000-72021 | O-RING | 3001- |
