| Item | Part No. | Part Name | Qty | Serial No. |
| 14X-960-0010 | CONTROL VALVE ASS'Y | 3034-3148 | ||

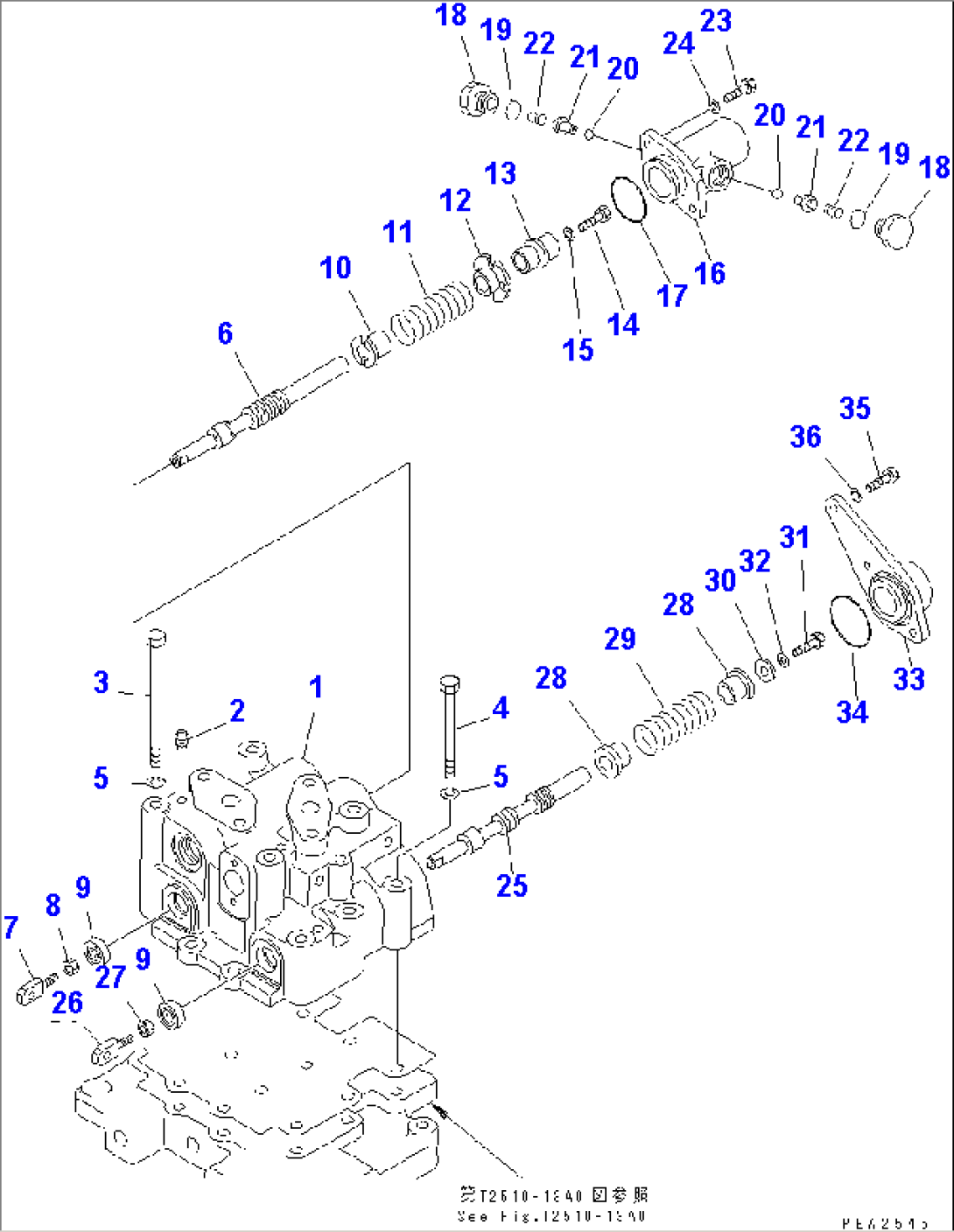

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.T2510-11A0 AND T2510-12A0. | ||||
| 1 | \6\ | BODY,VALVE | 3034-3148 | |
| 2 | 07042-20108 | PLUG | 3034-3148 | |
| 3 | 01011-51030 | BOLT | 3034-3148 | |
| 4 | 01010-51080 | BOLT | 3034-3148 | |
| 5 | 01602-21030 | WASHER,SPRING | 3034-3148 | |
| 6 | 14X-960-5121 | SPOOL | 3034-3148 | |
| 7 | 15B-960-5330 | YOKE | 3034-3148 | |
| 8 | 01580-10806 | NUT | 3034-3148 | |
| 9 | 113-15-29110 | SEAL,OIL | 3034-3148 | |
| 10 | 175-916-4130 | COLLAR | 3034-3148 | |
| 11 | 175-916-4140 | SPRING | 3034-3148 | |
| 12 | 175-916-4150 | STOPPER | 3034-3148 | |
| 13 | 14X-960-5140 | DETENT | 3034-3148 | |
| 14 | 01010-50835 | BOLT | 3034-3148 | |
| 15 | 01643-50823 | WASHER | 3034-3148 | |
| 16 | 15B-960-5230 | COVER | 3034-3148 | |
| 17 | 07000-73035 | O-RING | 3034-3148 | |
| 18 | 175-916-4180 | PLUG | 3034-3148 | |
| 19 | 07000-72015 | O-RING | 3034-3148 | |
| 20 | 04260-00793 | BALL | 3034-3148 | |
| 21 | 701-33-31330 | GUIDE | 3034-3148 | |
| 22 | 709-62-31180 | SPRING | 3034-3148 | |
| 23 | 01010-50820 | BOLT | 3034-3148 | |
| 24 | 01602-20825 | WASHER,SPRING | 3034-3148 | |
| 25 | 14X-960-5131 | SPOOL | 3034-3148 | |
| 26 | 15B-960-5330 | YOKE | 3034-3148 | |
| 27 | 01580-10806 | NUT | 3034-3148 | |
| 28 | 175-916-4210 | COLLAR | 3034-3148 | |
| 29 | 14X-960-5110 | SPRING | 3034-3148 | |
| 30 | 175-916-4230 | WASHER | 3034-3148 | |
| 31 | 01010-50816 | BOLT | 3034-3148 | |
| 32 | 01643-50823 | WASHER | 3034-3148 | |
| 33 | 15B-960-5240 | COVER | 3034-3148 | |
| 34 | 07000-73048 | O-RING | 3034-3148 | |
| 35 | 01010-50820 | BOLT | 3034-3148 | |
| 36 | 01602-20825 | WASHER,SPRING | 3034-3148 |
