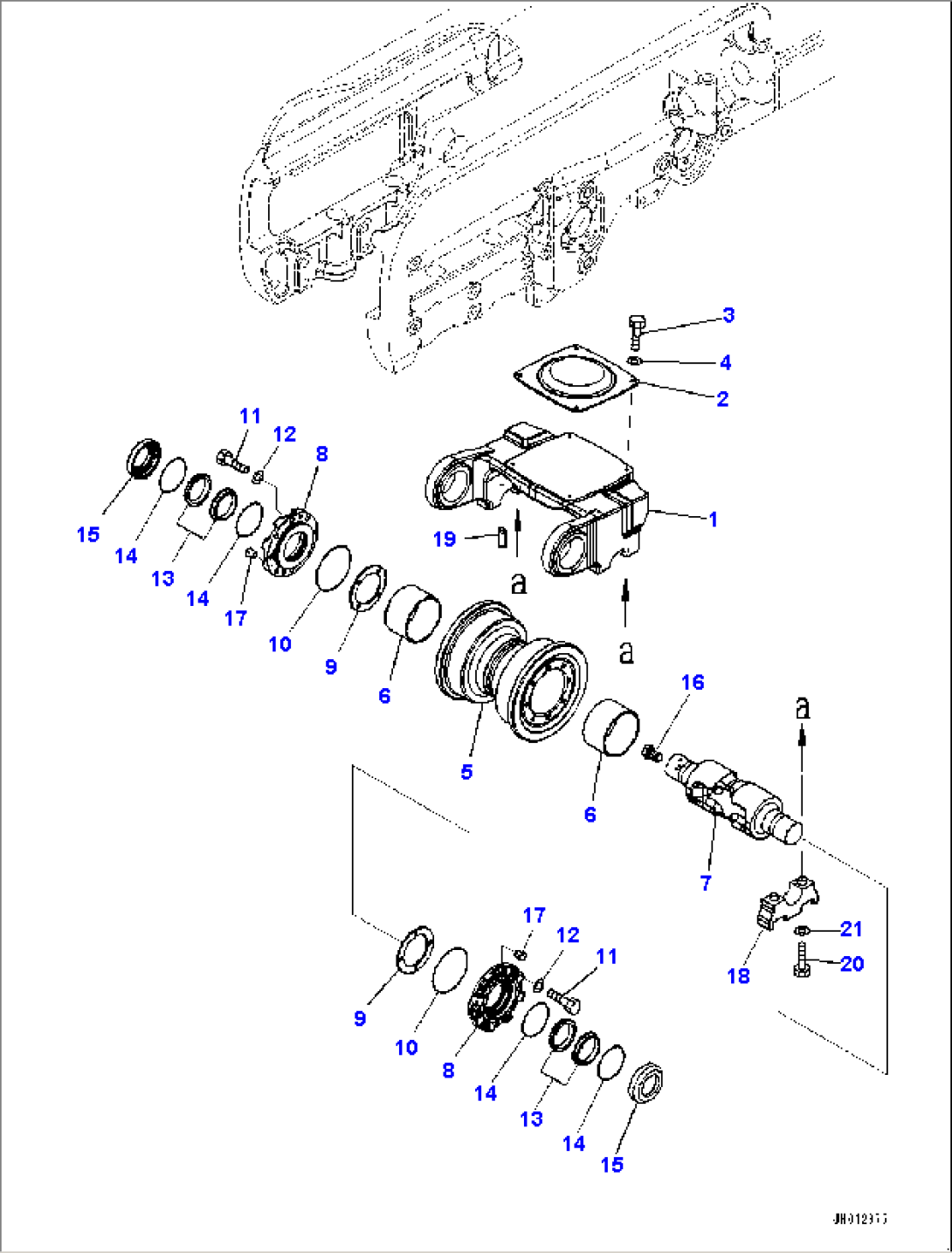

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-30-46151 | Bogie | 100040- | |
| 2 | 17A-30-46141 | Pad | 100040- | |
| 3 | 01010-81025 | Bolt | 100040- | |
| 4 | 01643-31032 | Washer | 100040- | |
| 4 | 17A-30-00612 | Track Roller Assembly | 100040- | |
| 5 | 17A-30-15111 | Roller, Single Flange | 100040- | |
| 6 | 17A-30-15140 | Bushing | 100040- | |
| 7 | 17A-30-45630 | Shaft | 100040- | |
| 8 | 17A-30-45210 | Retainer | 100040- | |
| 9 | 17A-30-45220 | Plate | 100040- | |
| 10 | 07000-12130 | O-ring | 100040- | |
| 11 | 01010-81235 | Bolt | 100040- | |
| 12 | 01643-31232 | Washer | 100040- | |
| 12 | 154-30-00832 | Floating Seal Assembly | 100040- | |
| 13 | Seal | 100040- | ||
| 14 | O-ring | 100040- | ||
| 15 | 17A-30-15181 | Ring | 100040- | |
| 16 | 07052-31624 | Plug | 100040- | |
| 17 | 07049-01215 | Plug | 100040- | |
| 18 | 17A-30-46330 | Cap | 100040- | |
| 19 | 04020-00616 | Pin, Dowel | 100040- | |
| 20 | 01010-62285 | Bolt | 100040- | |
| 21 | 01643-32260 | Washer | 100040- |
