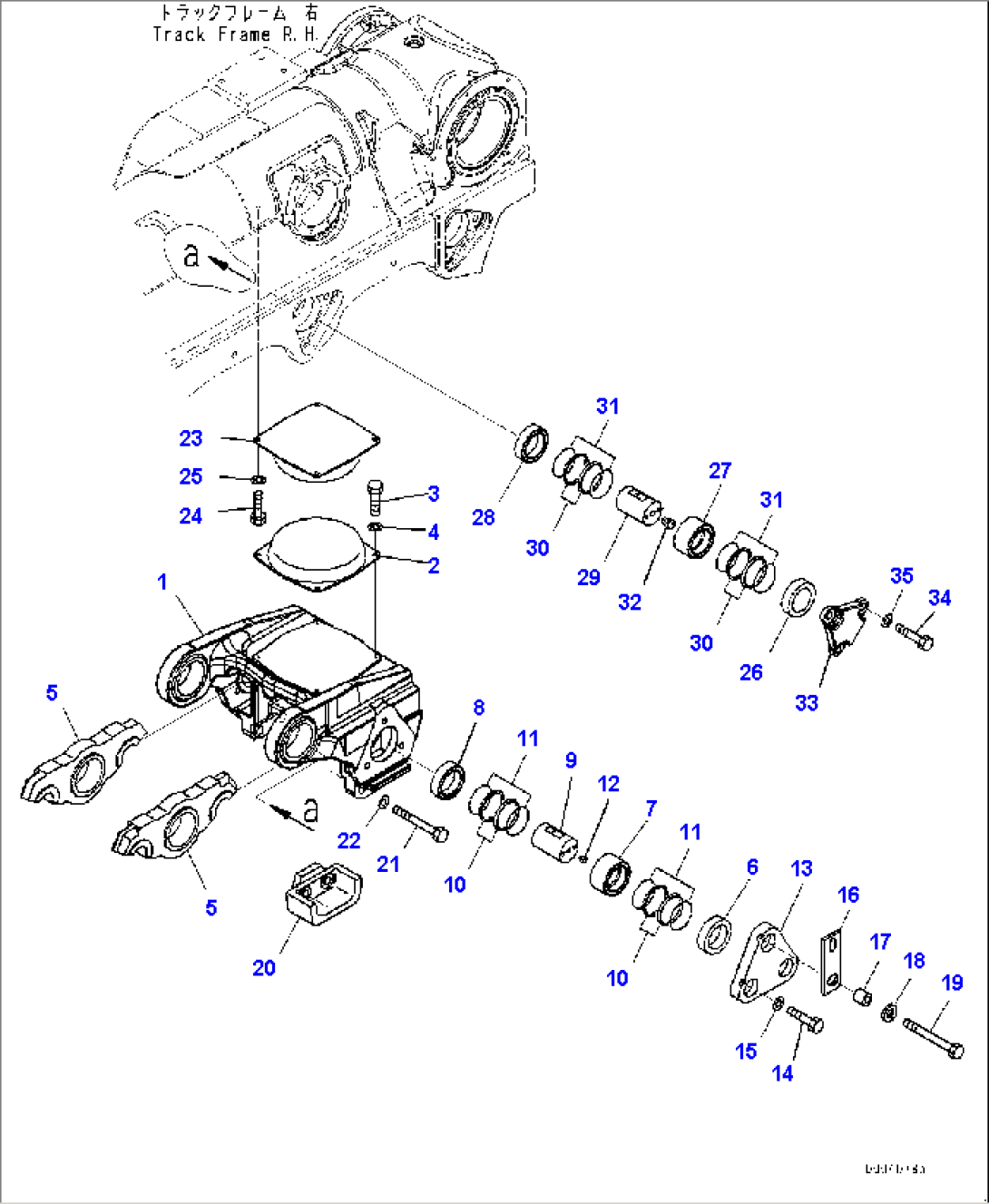

| Item | Part No. | Part Name | Qty | Serial No. |
| 198-30-05410 | Bogie Assembly | 30425- | ||
| 1 | 198-30-69111 | Bogie | 30425- | |
| 2 | 198-30-69120 | Pad | 30425- | |
| 3 | 01010-81225 | Bolt | 30425- | |
| 4 | 01643-31232 | Washer | 30425- | |
| 5 | 198-30-69140 | Bogie, Minor | 30425- | |
| 198-30-32900 | Pin Assembly | 30425- | ||
| 6 | 198-30-32820 | Ring | 30425- | |
| 7 | 198-30-32830 | Ring | 30425- | |
| 8 | 198-30-32840 | Ring | 30425- | |
| 9 | 198-30-32950 | Shaft | 30425- | |
| 9 | 198-30-00170 | Floating Seal Assembly | 30425- | |
| 10 | Seal | 30425- | ||
| 11 | O-ring | 30425- | ||
| 12 | 209-30-63150 | Plug | 30425- | |
| 13 | 198-30-69590 | Cover | 30425- | |
| 14 | 01010-62765 | Bolt | 30425- | |
| 15 | 01643-32780 | Washer | 30425- | |
| 16 | 198-30-69280 | Plate | 30425- | |
| 17 | 198-30-66190 | Collar | 30425- | |
| 18 | 19M-54-11770 | Plate | 30425- | |
| 19 | 01011-62710 | Bolt | 30425- | |
| 20 | 198-30-67131 | Guide | 30425- | |
| 21 | 01011-63310 | Bolt | 30425- | |
| 22 | 01643-33380 | Washer | 30425- | |
| 23 | 198-30-69120 | Pad | 30425- | |
| 24 | 01010-81225 | Bolt | 30425- | |
| 25 | 01643-31232 | Washer | 30425- | |
| 25 | 198-30-32900 | Pin Assembly | 30425- | |
| 26 | 198-30-32820 | Ring | 30425- | |
| 27 | 198-30-32830 | Ring | 30425- | |
| 28 | 198-30-32840 | Ring | 30425- | |
| 29 | 198-30-32950 | Shaft | 30425- | |
| 29 | 198-30-00170 | Floating Seal Assembly | 30425- | |
| 30 | Seal | 30425- | ||
| 31 | O-ring | 30425- | ||
| 32 | 209-30-63150 | Plug | 30425- | |
| 33 | 198-30-69391 | Cover | 30425- | |
| 34 | 01010-62765 | Bolt | 30425- | |
| 35 | 01643-32780 | Washer | 30425- |
