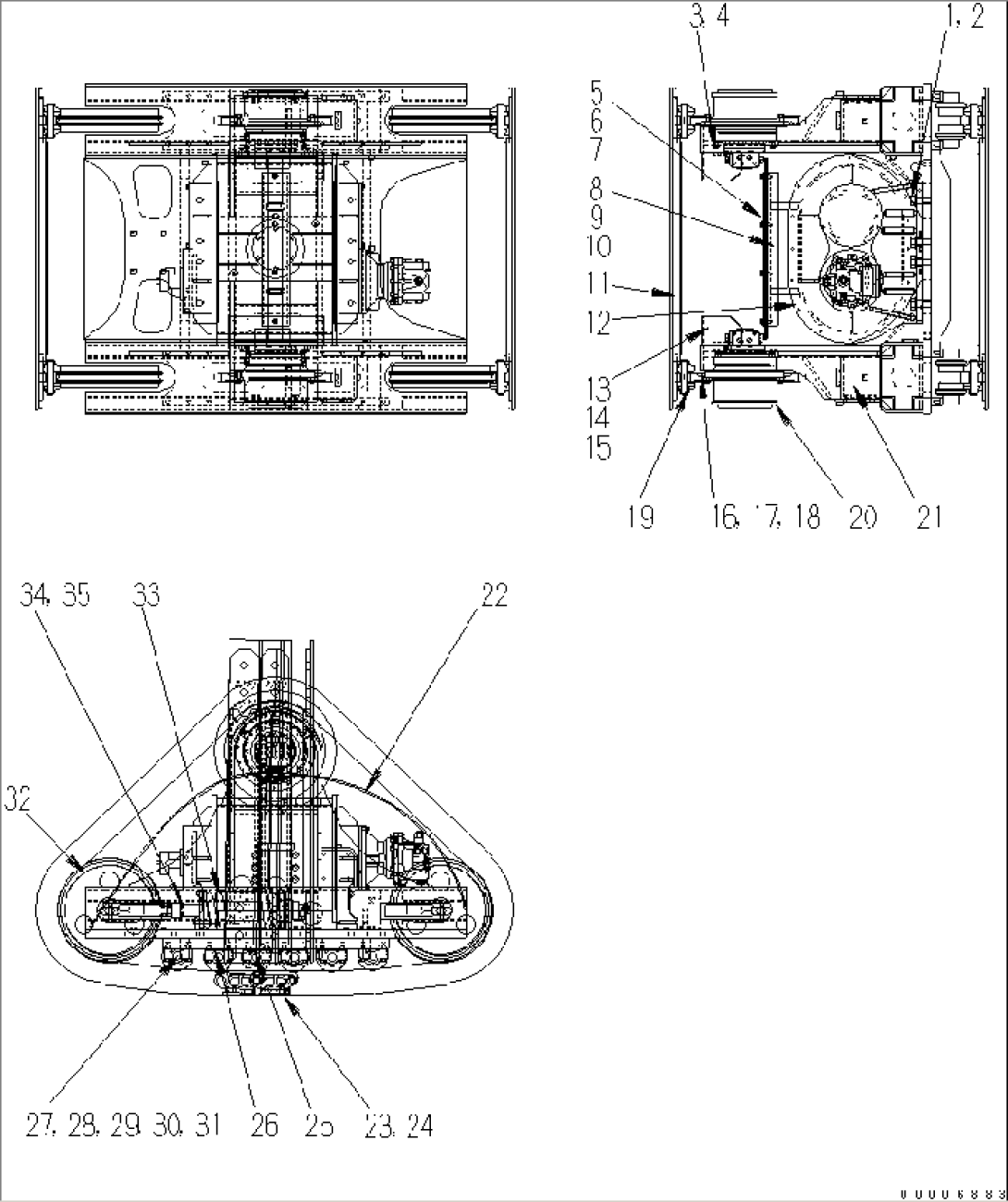

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-63085 | BOLT | 1001- | |
| 2 | 01643-33080 | WASHER | 1001- | |
| 3 | 01010-81655 | BOLT | 1001- | |
| 4 | 01643-31645 | WASHER | 1001- | |
| 5 | 417-J90-5690 | PLATE | 1001- | |
| 6 | 01010-81250 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 417-J90-5660 | BRACKET | 1001- | |
| 9 | 01010-81235 | BOLT | 1001- | |
| 10 | 01643-31232 | WASHER | 1001- | |
| 11 | 279-70-11220 | SHOE,1600MM | 1001- | |
| 12 | 279-70-11000 | VIBRATOR ASS'Y | 1001- | |
| 13 | 279-70-11230 | COVER | 1001- | |
| 14 | 01010-81240 | BOLT | 1001- | |
| 15 | 01643-31232 | WASHER | 1001- | |
| 16 | 22B-27-11110 | SPROCKET | 1001- | |
| 17 | 203-27-51120 | BOLT | 1001- | |
| 18 | 01643-31645 | WASHER | 1001- | |
| 19 | 417-J90-5010 | TRACK LINK ASS'Y | 1001- | |
| 20 | 279-60-11110 | MOTOR ASS'Y | 1001- | |
| 21 | 279-70-11210 | TRACK FRAME | 1001- | |
| 22 | 417-J90-5670 | SHEET | 1001- | |
| 23 | 01580-11613 | NUT | 1001- | |
| 24 | 01018-31650 | BOLT | 1001- | |
| 25 | 279-70-11290 | SHIM¤ T=0.9 | 1001- | |
| 26 | 279-70-11280 | SHIM¤ T=0.6 | 1001- | |
| 27 | (22B-30-00010) | TRACK ROLLER ASS'Y | 1001- | |
| 28 | 01010-81680 | BOLT | 1001- | |
| 29 | 01010-81685 | BOLT | 1001- | |
| 30 | 01010-81690 | BOLT | 1001- | |
| 31 | 01643-31645 | WASHER | 1001- | |
| 32 | (203-30-00211) | IDLER ASS'Y | 1001- | |
| 33 | \6\ | IDLER CUSHION ASS'Y | 1001- | |
| 34 | 01010-81475 | BOLT | 1001- | |
| 35 | 01643-31445 | WASHER | 1001- |
