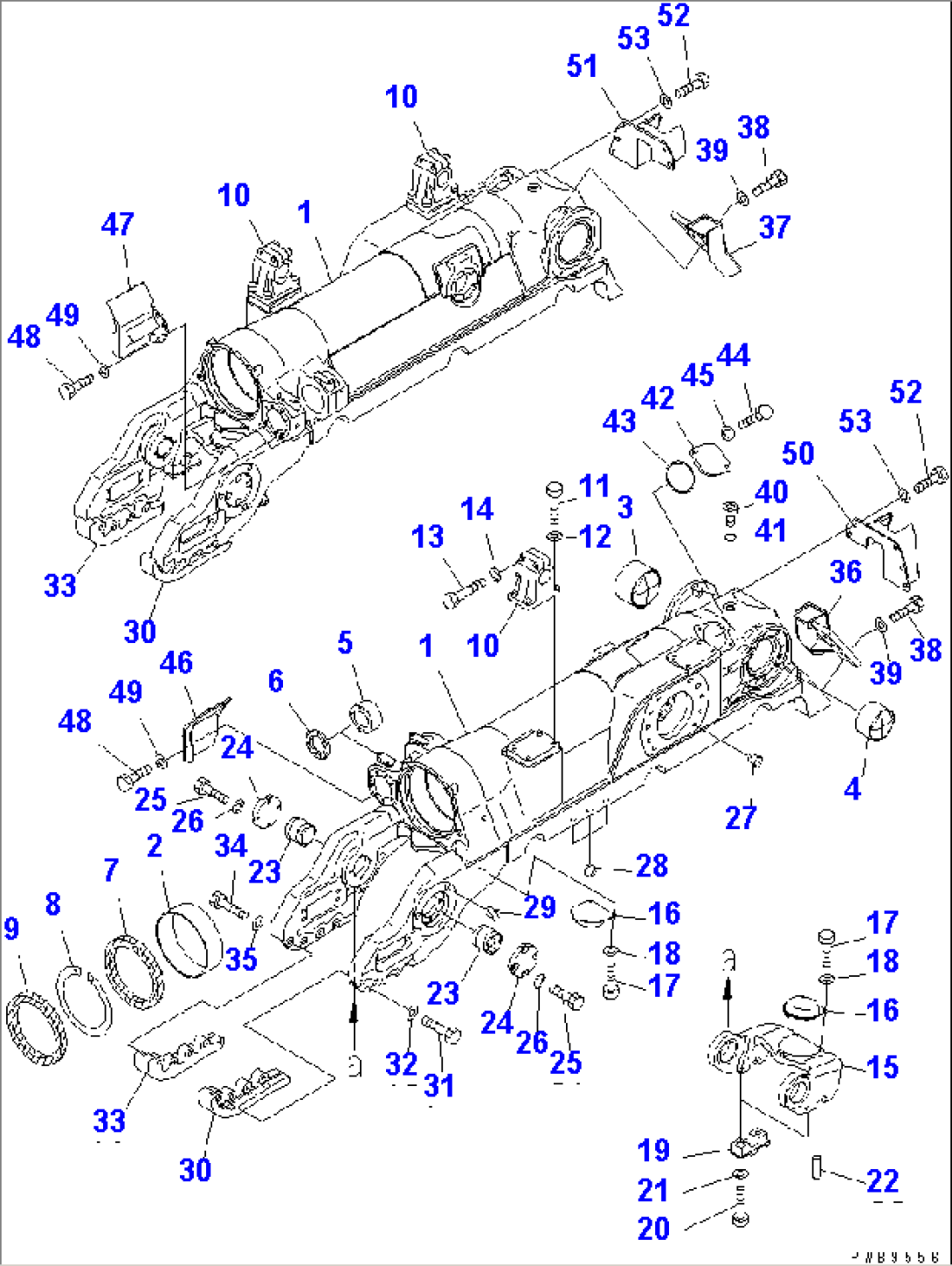

| Item | Part No. | Part Name | Qty | Serial No. |
| 195-30-01711 | TRACK FRAME ASS'Y,L.H. | 17501- | ||
| 195-30-01721 | TRACK FRAME ASS'Y,R.H. | 17501- | ||
| 1 | 195-30-61112 | TRACK FRAME,L.H. | 17501- | |
| 195-30-61122 | TRACK FRAME,R.H. | 17501- | ||
| 2 | 195-30-31220 | BUSHING | 17501- | |
| 3 | 195-50-22190 | BUSHING | 17501- | |
| 4 | 195-50-22210 | BUSHING | 17501- | |
| 5 | 195-50-41231 | BUSHING | 17501- | |
| 6 | 195-50-41170 | SEAL | 17501- | |
| 7 | 195-30-31231 | SEAL | 17501- | |
| 8 | 195-30-31250 | RING | 17501- | |
| 9 | 195-30-31240 | SEAL | 17501- | |
| 10 | 195-30-25142 | SUPPORT | 17501- | |
| 11 | 01010-62265 | BOLT | 17501- | |
| 12 | 01643-32260 | WASHER | 17501- | |
| 13 | 01010-62285 | BOLT | 17501- | |
| 14 | 01643-32260 | WASHER | 17501- | |
| 15 | 195-30-66151 | BOGIE | 17501- | |
| 16 | 195-30-66132 | PAD | 17501- | |
| 17 | 01010-81020 | BOLT | 17501- | |
| 18 | 01643-31032 | WASHER | 17501- | |
| 19 | 195-30-62141 | CAP | 17501- | |
| 20 | 01011-62710 | BOLT | 17501- | |
| 21 | 01643-32780 | WASHER | 17501- | |
| 22 | 04020-00616 | PIN,DOWEL | 17501- | |
| 23 | 195-30-32300 | PIN ASS'Y | 17501- | |
| 24 | 195-30-66310 | PLATE | 17501- | |
| 25 | 01010-61640 | BOLT | 17501- | |
| 26 | 01643-31645 | WASHER | 17501- | |
| 27 | 07049-02430 | PLUG,KORUKU | 17501- | |
| 28 | 07049-02734 | PLUG,KORUKU | 17501- | |
| 29 | 07049-03038 | PLUG,KORUKU | 17501- | |
| 30 | 195-30-51750 | GUARD,L.H. | 17501- | |
| 31 | 01010-62465 | BOLT | 17501- | |
| 32 | 01643-32460 | WASHER | 17501- | |
| 33 | 195-30-51760 | GUARD,R.H. | 17501- | |
| 34 | 01010-62465 | BOLT | 17501- | |
| 35 | 01643-32460 | WASHER | 17501- | |
| 36 | 195-30-62153 | COVER,L.H. | 17501- | |
| 37 | 195-30-62163 | COVER,R.H. | 17501- | |
| 38 | 01010-62045 | BOLT | 17501- | |
| 39 | 01643-32060 | WASHER | 17501- | |
| 40 | 07040-13618 | PLUG | 17501- | |
| 41 | 07002-03634 | O-RING | 17501- | |
| 42 | 195-30-31260 | COVER | 17501- | |
| 43 | 07000-15155 | O-RING | 17674- | |
| \0\07000-05155 | O-RING | 17501-17673 | ||
| 44 | 01010-61645 | BOLT | 17501- | |
| 45 | 01643-31645 | WASHER | 17501- | |
| 46 | 195-30-64142 | COVER,L.H. | 17501- | |
| 47 | 195-30-64152 | COVER,R.H. | 17501- | |
| 48 | 01010-61660 | BOLT | 17501- | |
| 49 | 01643-31645 | WASHER | 17501- | |
| 50 | 195-30-62182 | COVER,L.H. | 17501- | |
| 51 | 195-30-62192 | COVER,R.H. | 17501- | |
| 52 | 01010-62045 | BOLT | 17501- | |
| 53 | 01643-32060 | WASHER | 17501- |
