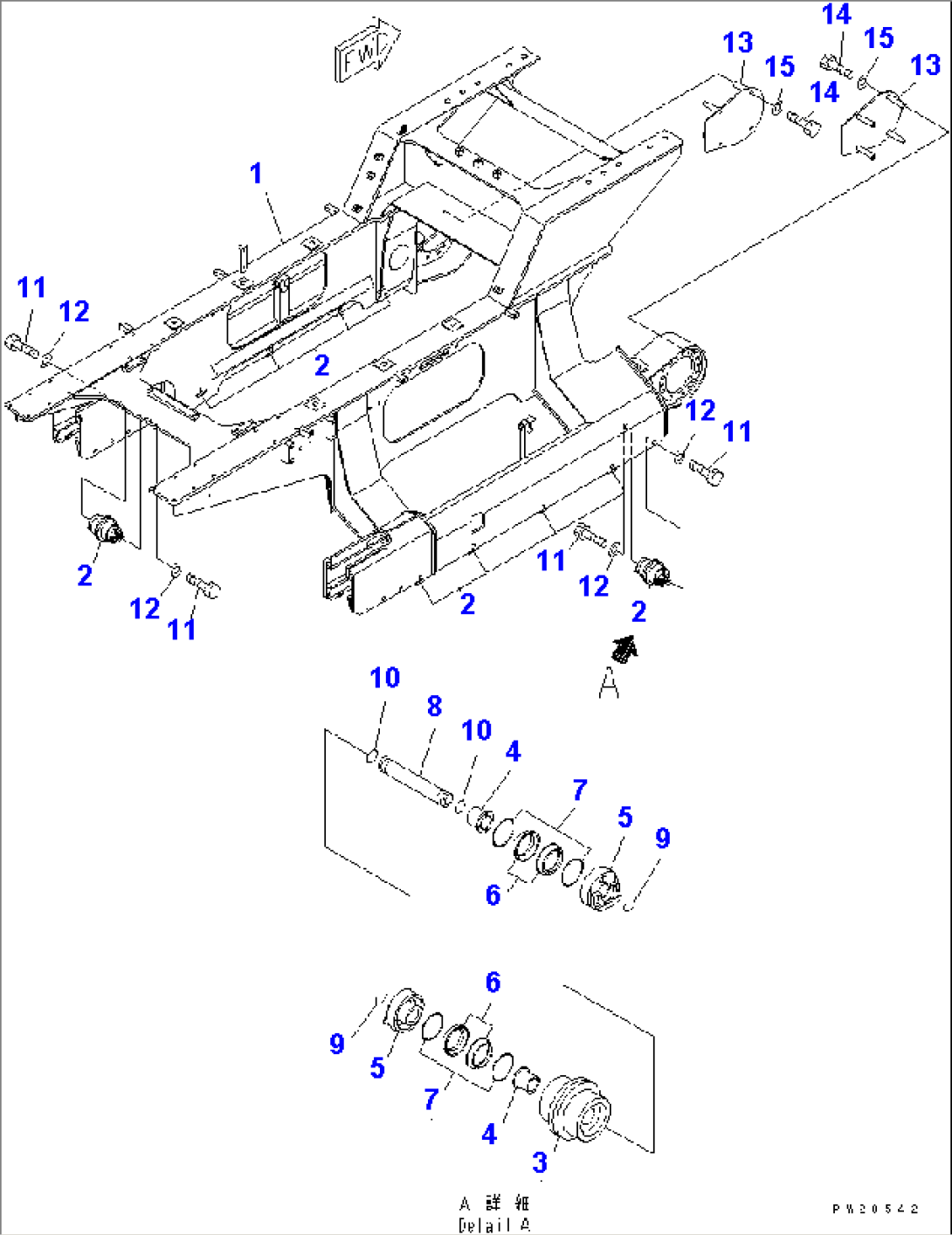

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8230-30-1123 | TRACK FRAME | .- | |
| 1 | 8230-30-1122 | TRACK FRAME | 1301-. | |
| 2 | 20T-30-00173 | TRACK ROLLER ASS'Y | 1301- | |
| 3 | 20T-30-84112 | ROLLER | 1301- | |
| 4 | 10E-30-12150 | BUSHING | 1301- | |
| 5 | 20T-30-74123 | COLLAR | 1301- | |
| 140-30-00141 | FLOATING SEAL ASS'Y | 1301- | ||
| 6 | \6\ | RING | 1301- | |
| 7 | \6\ | O-RING | 1301- | |
| 8 | 20T-30-32330 | SHAFT | 1301- | |
| 9 | 20T-30-13141 | RING,SNAP | 1301- | |
| 10 | 07000-13028 | O-RING | 1301- | |
| 11 | 01010-81635 | BOLT | 1301- | |
| 12 | 01643-31645 | WASHER | 1301- | |
| 13 | 22M-30-11160 | COVER | 1301- | |
| 14 | 01011-81020 | BOLT | 1310- | |
| 14 | 01011-81015 | BOLT | 1301-1309 | |
| 15 | 01643-31032 | WASHER | 1301- |
