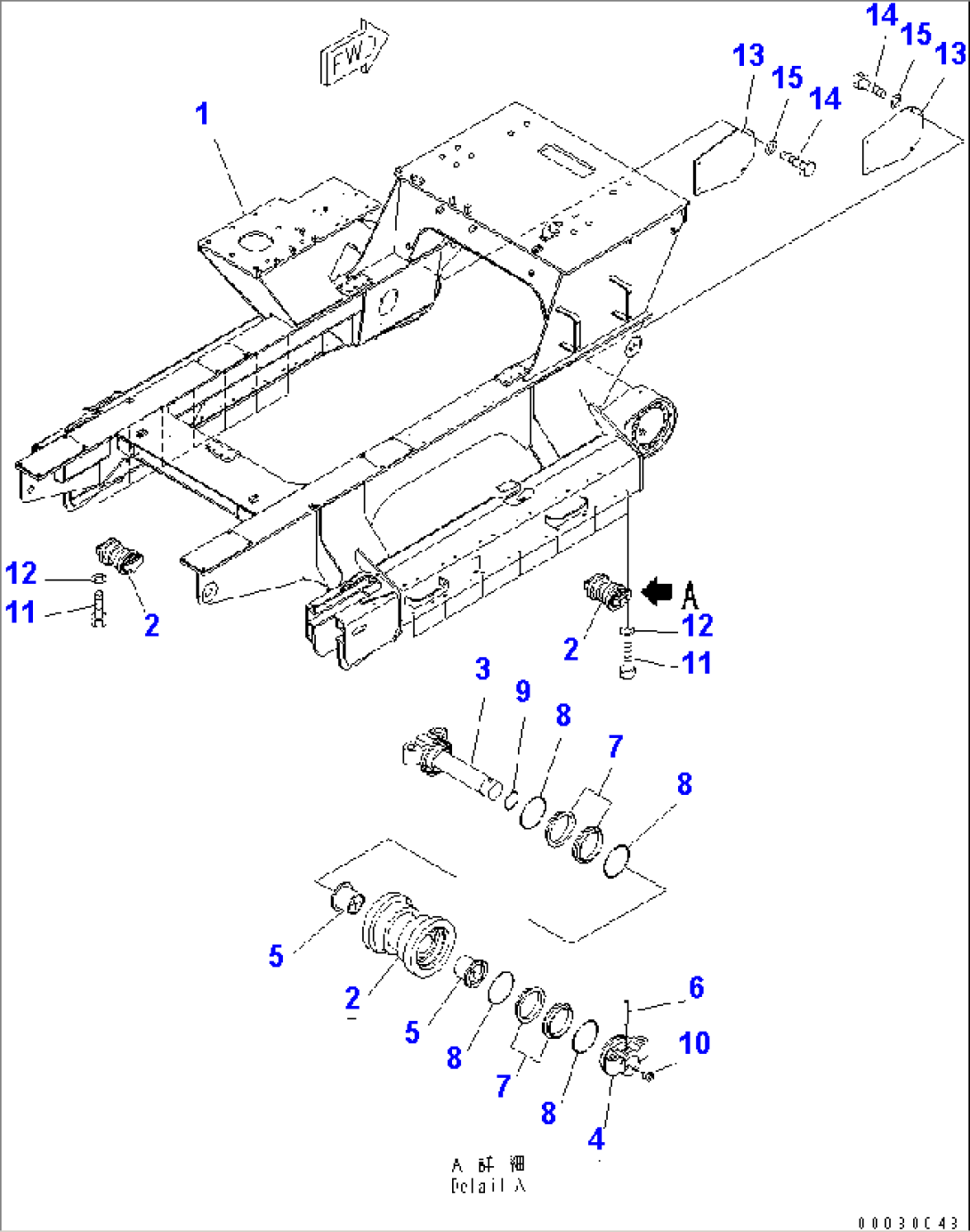

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8255-46-4510 | TRACK FRAME | 1501- | |
| 22B-30-00411 | TRACK ROLLER AS | 1506- | ||
| 22B-30-00410 | TRACK ROLLER ASS'Y | 1205-1505 | ||
| 2 | 22B-30-16511 | ROLLER | 1506- | |
| 2 | 22B-30-16510 | ROLLER | 1205-1505 | |
| 3 | 22B-30-17250 | SHAFT ASS'Y | 1506- | |
| 3 | 22B-30-16550 | SHAFT ASS'Y | 1205-1505 | |
| 4 | 22B-30-17230 | COLLAR | 1506- | |
| 4 | 22B-30-16530 | COLLAR | 1205-1505 | |
| 5 | 22B-30-17260 | BUSHING | 1506- | |
| 5 | 22B-30-16560 | BUSHING | 1205-1505 | |
| 6 | 203-30-44150 | PIN | 1001- | |
| 22B-30-00090 | FLOATING SEAL ASS'Y | 1205- | ||
| 7 | \6\ | SEAL | 1205- | |
| 8 | \6\ | O-RING | 1205- | |
| 9 | 07000-12045 | O-RING | 1205- | |
| 10 | 20Y-30-16330 | PLUG | 1001- | |
| 11 | 01010-81670 | BOLT | 1001- | |
| 12 | 01643-31645 | WASHER | 1001- | |
| 13 | 22B-30-11620 | COVER | 1165- | |
| 14 | 01010-81025 | BOLT | 1001- | |
| 15 | 01643-31032 | WASHER | 1001- |
