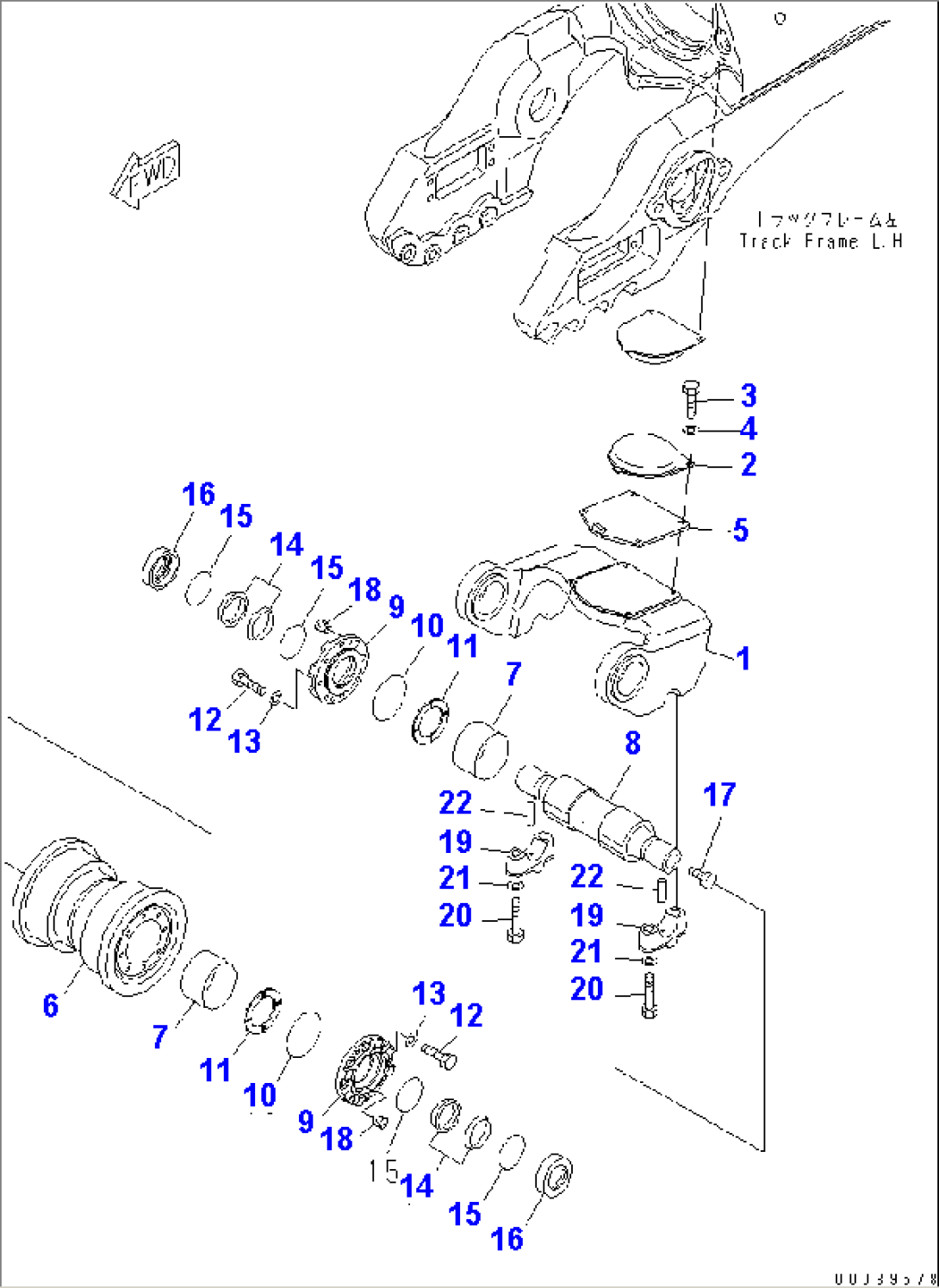

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17M-30-56151 | BOGIE | 25001-30000 | |
| 2 | 195-30-66190 | PAD | 25001-30000 | |
| 3 | 01010-81030 | BOLT | 25001-30000 | |
| 4 | 01643-31032 | WASHER | 25001-30000 | |
| 5 | 17M-30-56191 | PLATE | 25001-30000 | |
| 17M-30-01321 | TRACK ROLLER ASS'Y | 26069-30000 | ||
| \0\17M-30-01320 | TRACK ROLLER ASS'Y | 25001-26068 | ||
| 6 | 17M-30-53310 | ROLLER,(SINGLE) | 25001-30000 | |
| 7 | 17M-30-53360 | BUSHING | 25001-30000 | |
| 8 | 17M-30-53330 | SHAFT | 25001-30000 | |
| 9 | 17M-30-53340 | RETAINER | 25001-30000 | |
| 10 | 07000-52120 | O-RING | 25001-30000 | |
| 11 | 17M-30-53350 | PLATE | 25001-30000 | |
| 12 | 01010-81240 | BOLT | 25001-30000 | |
| 13 | 01643-31232 | WASHER | 25001-30000 | |
| 13 | 01643-31232 | WASHER | 25001-30000 | |
| 154-30-00450 | FLOATING SEAL ASS'Y | 26069-30000 | ||
| 154-30-00632 | FLOATING SEAL ASS'Y | 25001-26068 | ||
| 14 | \6\ | SEAL | 26069-30000 | |
| 14 | \6\ | SEAL | 25001-26068 | |
| 15 | \6\ | O-RING | 25001-30000 | |
| 16 | 17A-30-15181 | RING | 25001-30000 | |
| 17 | 07052-31624 | PLUG | 25001-30000 | |
| 18 | 07049-01215 | PLUG | 25001-30000 | |
| 19 | 17M-30-52140 | CAP | 25001-30000 | |
| 20 | 01011-62400 | BOLT | 25001-30000 | |
| 21 | 01643-32460 | WASHER | 25001-30000 | |
| 22 | 04020-00616 | PIN,(DOWEL) | 25001-30000 |
