| Item | Part No. | Part Name | Qty | Serial No. |
| 01 | 482 803 40 | Track frame, r.h. | ||
| 02 | 482 805 40 | Track frame, l.h. | ||
| 03 | 448 966 40 | Rail support | ||
| 04 | 502 213 98 | Bolt | ||
| 05 | 255 057 40 | Washer | ||
| 07 | Bottom roller | |||
| 08 | 508 420 98 | Bolt | ||
| 09 | 368 715 40 | Nut |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- H485e s/n 12016
- * = variations from page:
- Track frame, bottom roller and rail support
Поиск по каталогу

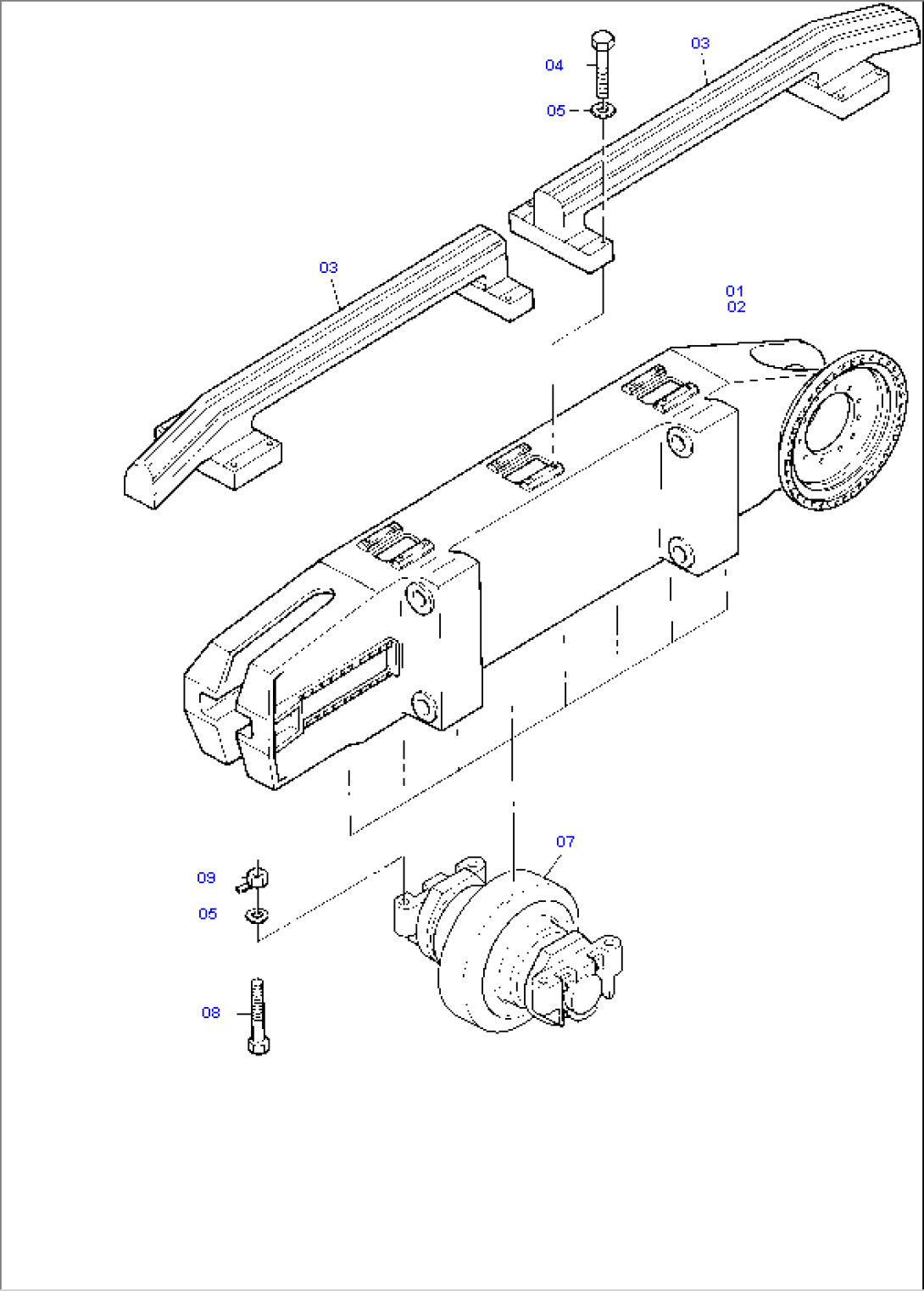

Track Frame, Bottom Roller and Rail Support
