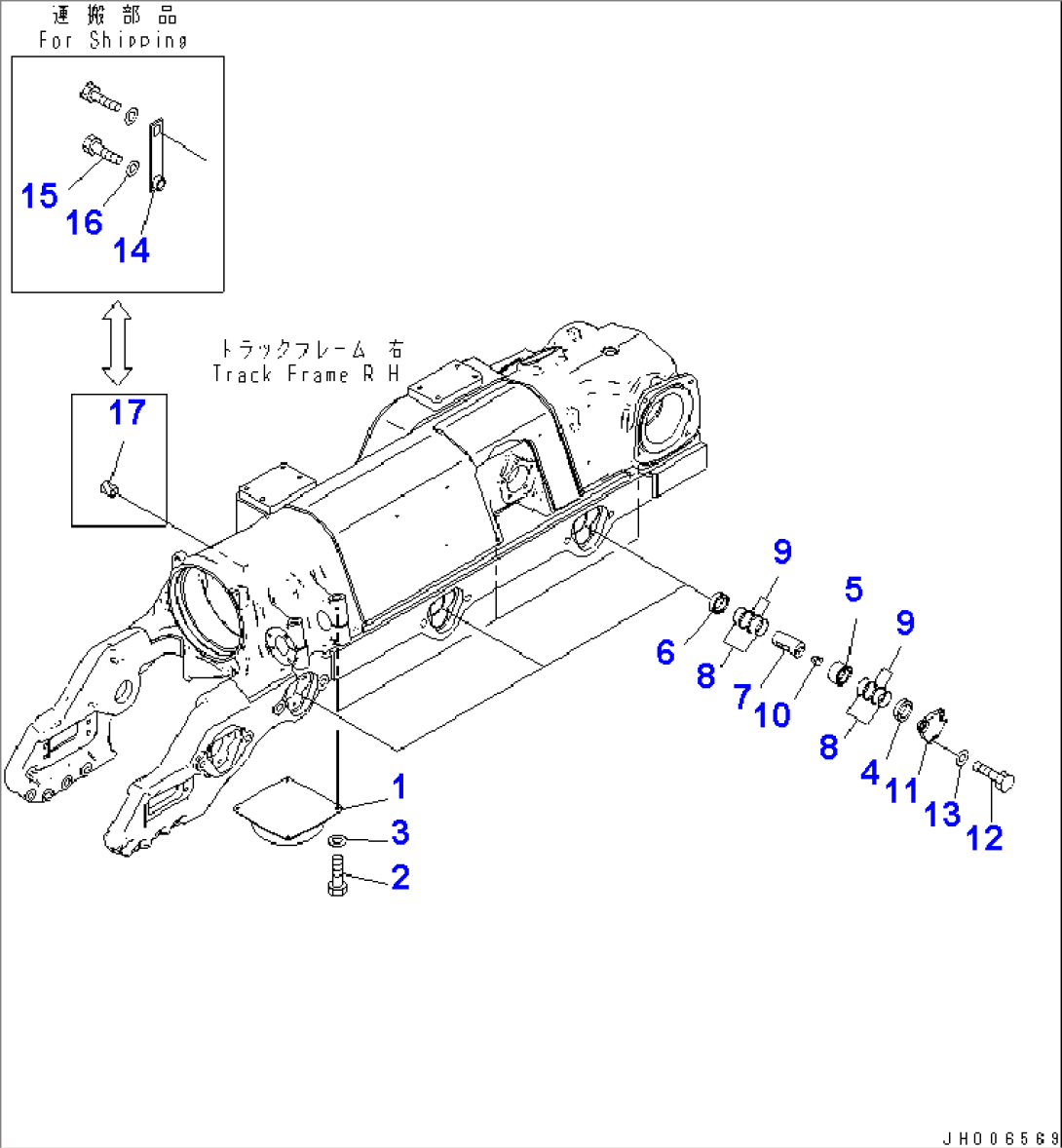

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17M-30-56130 | PAD | 30001- | |
| 2 | 01010-81020 | BOLT | 30001- | |
| 3 | 01643-31032 | WASHER | 30001- | |
| 17M-30-69200 | PIN ASS'Y | 30001- | ||
| 4 | 17M-30-66221 | RING | 30001- | |
| 5 | 17M-30-66230 | RING | 30001- | |
| 6 | 17M-30-66240 | RING | 30001- | |
| 7 | 17M-30-66250 | SHAFT | 30001- | |
| 17M-30-00660 | FLOATING SEAL ASS'Y | 30001- | ||
| 8 | \6\ | SEAL | 30001- | |
| 9 | \6\ | O-RING | 30001- | |
| 10 | 209-30-63150 | PLUG | 30001- | |
| 11 | 17M-30-56331 | COVER | 30001- | |
| 12 | 01010-61640 | BOLT | 30001- | |
| 13 | 01643-31645 | WASHER | 30001- | |
| 14 | 17M-30-56182 | BRACKET | 30001- | |
| 15 | 01010-83060 | BOLT | 30001- | |
| 16 | 01643-33080 | WASHER | 30001- | |
| 17 | 07049-03038 | PLUG | 30001- |
